SKB82.51U Siemens Actuator
$1,349.67
Flowrite Electro-Hydraulic Actuator, Float Control, Spring Rtn, 3/4-in Stroke
The Siemens SKB82.50U E/H Actuator 20MM 24VAC 3P NSR
Overload-proof through travel-dependent, fixed switching off in end position. With die-cast aluminium housing and yoke for valves with 20 mm stroke.

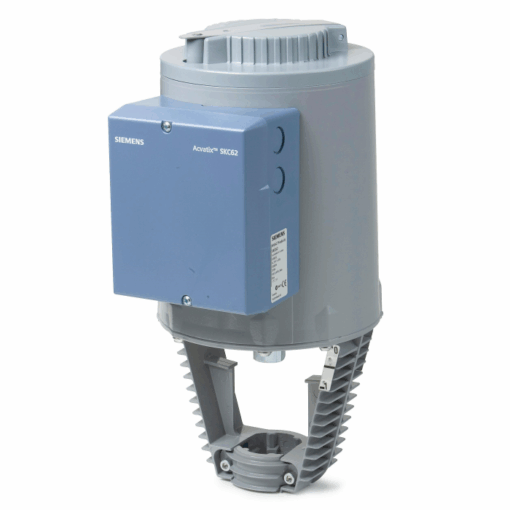

The Flowrite SKC Valve Actuator is used with Flowrite and other standard valves with a 1-1/2-inch stroke. This electronic valve actuator requires a 24 Vac supply to provide floating control of the valve. Other features of this valve actuator include automatic stroke calibration, manual override, die-cast aluminum housing, 1000 lb (4000N) thrust, and spring return functionality.
Technical Specifications
|
Ambient temperature, operation |
-15…55 °C |
|
Degree of protection |
IP54 |
|
Dimensions (W x H x D) |
7.01 x 14.84 x 8.94 in |
|
Medium temperature |
-25…220 °C; 5…130 ºF |
|
Mounting position |
NEMA 1 (interior only), Upright |
|
Operating voltage |
19.2…31.2 V24 V#AC |
|
Positioning signal |
3-position |
|
Positioning time |
120 s |
|
Spring return function |
Spring return functionality |
|
Stroke |
40 mm |
|
Power consumption |
19 VA |
|
Positioning force |
4400 N |
| Weight | 10 lbs |
|---|---|
| Dimensions | 2 × 2 × 2 in |
