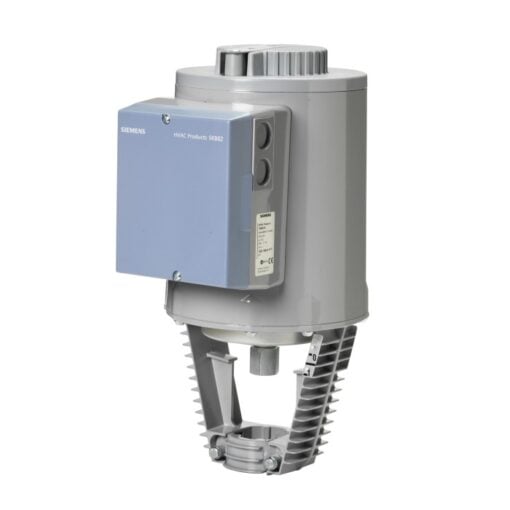

SKB62U Siemens Actuator
$1,533.23
Flowrite Electro-Hydraulic Actuator, 24Vac, Proportional, SR, 3/4″ Stroke
The Siemens SKB62U E/H Actuator 20MM 24VAC MOD SR
Overload-proof through travel-dependent, fixed switching off in end position. With die-cast aluminium housing and yoke for valves with 20 mm stroke.
Technical specifications
|
Ambient temperature, operation |
-15…+55 °C |
|
Degree of protection |
IP54 |
|
Medium temperature |
-25…220 °C |
|
Mounting position |
Upright to horizontal |
|
Position feedback |
DC 0…10 V; DC 4…20 mA |
|
Positioning signal |
DC 0…10 V; 4…20 mA; 0…1000 Ohm |
|
Spring return function |
SKB62.. |
|
Stroke |
20 mm |
|
Positioning force |
2800 N |
|
Warranty |
5 Years |
Normally ships in 5-7 days… Call 800-323-2739 for details!
| Weight | 25 lbs |
|---|---|
| Dimensions | 19 × 12 × 9 in |
