SE7652H5045 Schneider Electric Thermostat
$192.80

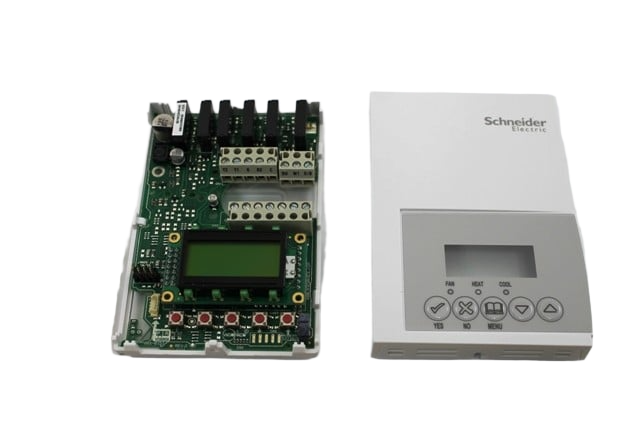

SE7652H5045 Schneider Electric Thermostat Heat Pump Controller: Stand Alone, 3H/2C, Local scheduling
Overview
The Schneider Electric SE7652H5045 (Viconics SE7000 Series) is a standalone room controller designed for low-voltage heat pump systems. It supports three stages of heating (3H) and two stages of cooling (2C), with built-in local scheduling. Ideal for residential or light commercial HVAC units, RTUs or heat pumps where precise temperature control and flexible scheduling are needed.
Specifications
| Specification | Details |
|---|---|
| Brand / Model | Schneider Electric (Viconics) SE7652H5045 |
| Series / Short Name | SE7000 Series / SE7600H |
| Application | Low-voltage heat pump / staging equipment (RTU / HP) |
| Supply Voltage | 10-30 V AC, 50/60 Hz |
| Control Staging | 3 stages Heating, 2 stages Cooling |
| User Interface | Back-lit LCD display; 5 standard push-button controls |
| Sensor Type | 10 kΩ T2 NTC thermistor |
| Inputs | 2 dry-contact digital inputs |
| Outputs | • Analog: 0-10 V DC ≤ 5 mA “universal” output • Digital SPST relay: 1 A at 30 V (max), with inrush up to 3 A |
| Temperature Setting Range | Heating: ~ 40-90 °F (≈ 4-32 °C) Cooling: ~ 54-100 °F (≈ 12-38 °C) |
| Displayed / Measured Temp Range | −40 to 122 °F |
| Operating Ambient Temperature | 32 to 122 °F (0 to 50 °C) |
| Storage Temperature Range | −22 to 122 °F (−30 to 50 °C) |
| Relative Humidity (Operating) | 0-95 % RH non-condensing |
| Accuracy | Temperature: ± 0.9 °F at 70 °F Humidity: ±5 % (20-80 % RH) |
| Dimensions (H × W × D) | 4.92 in × 3.42 in × 1.18 in (≈ 124.97 mm × 86.87 mm × 29.97 mm) |
| Net Weight | ~ 0.75 lb (≈ 0.34 kg) |
| Mounting / Connections | Surface mount, screw terminals, AWG 22-18 |
| Displayed Language / Units | Fahrenheit or Celsius selectable |
| Certifications & Standards | UL Listed (File E27734), CE, C-Tick (AS/NZS CISPR 22), FCC Part 15 Class A |
| Scheduling | 7-day/programmable local scheduling |
| Misc Features | Local scheduling, dry contact inputs, local setpoint high/low limits, selectable deadband, power-fail retention of clock, etc. |
Features & Benefits
-
Supports multi-stage heating (3H) and multi-stage cooling (2C) for more flexible HVAC control
-
Local scheduling allows weekly programming without external control systems
-
Dual output types (analog and digital) make it adaptable to various control architectures
-
High measurement accuracy helps maintain comfort and reduce energy waste
-
Robust design with UL/CE certification; suitable for residential and commercial use
Applications
-
Standalone heat pump systems and rooftop units (RTUs)
-
Residential or light commercial heating and cooling control
-
Situations where local scheduling, reliable staging, and flexible setpoints are required
Installation & Maintenance Notes
-
Use correct voltage (10-30 VAC), ensure proper wiring gauge (AWG 22-18)
-
Perform correct mounting; ensure screw-terminals are properly secured
-
Set up scheduling and setpoint ranges during commissioning
-
Protect from moisture, extreme heat; avoid exposure beyond operating range
-
Calibrate or check sensors periodically for accurate temperature readings
Warranty & Compliance
-
Certified under various regional safety and electromagnetic compatibility standards
-
Meets Schneider Electric / Viconics warranty policies when installed and used per manufacturer instructions
Related Products
-
Other thermostats/controllers in the SE7000 Series (differing I/O, staged vs non-staged units)
-
Compatible room sensors or remote sensors (if required)
-
Accessories or covers for aesthetic or environment protection
