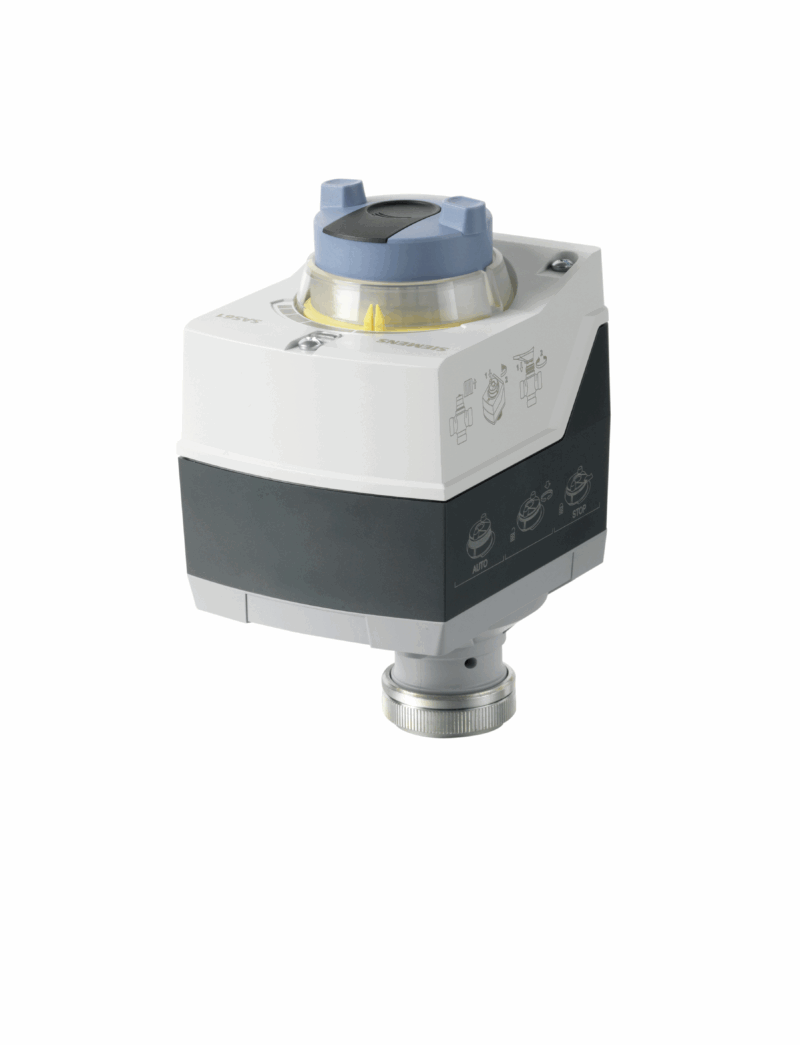

SAS81.03U Siemens Actuator
$209.78
Powermite 599 MT Series SAS Electronic Valve Actuator, NSR, 24V, Float Control
The Powermite 599 MT Series SAS Electronic Valve Actuator requires a 24V supply and receives a floating control signal to provide three-position control of a valve. The non-spring return actuator works with Powermite 599 MT Series terminal unit valves with a 7/32 in. stroke.
Function
SAS..
Electromotoric actuators 400 N for valves with 5.5 mm stroke
Electromotoric actuator for the operation of Siemens 2-port and 3-port valves, types VVG44.., VXG44.. and VVG549.. with 5.5 mm stroke as control and shut-off valves in heating, ventilation and air conditioning systems. With manual adjuster and position indicator, status indication per LED. Optional functions with auxiliary switches.
Technical specifications
|
Position feedback |
DC 0…10 V (SA..6..) |
|
Mounting position |
Upright to horizontal |
|
Stroke |
5.5 mm |
|
Stroke, mm |
5.5 mm |
|
Warranty |
5 Years |
The Siemens SAS81.03U SAS ELEC/MECH ACT, 3P, 30 SEC ,NSR
Replaces:
SQS85.03
| Weight | 8 lbs |
|---|---|
| Dimensions | 2 × 2 × 2 in |
