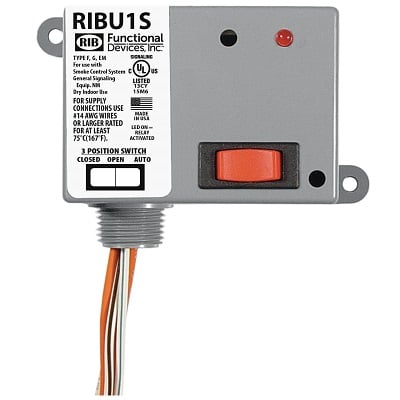

RIBU1S Functional Devices Enclosed Relay

Datasheet

Specifications:

• # Relays & Contact Type: One (1) SPST Continuous Duty Coil
• Expected Relay Life: 10 million cycles minimum mechanical
• Operating Temperature: -30 to 140° F
• Humidity Range: 5 to 95% (noncondensing)
• Operate Time: 20ms
• Relay Status: LED On = Activated
• Dimensions: 2.30˝ x 3.20˝ x 1.80˝ with .50˝ NPT nipple
• Wires: 16˝, 600V Rated
• Approvals: UL Listed, UL916, UL864, C-UL
  • California State Fire Marshal, CE, RoHS

• Housing Rating: UL Accepted for Use in Plenum, NEMA 1
• Gold Flash: Yes
• Override Switch: Yes
