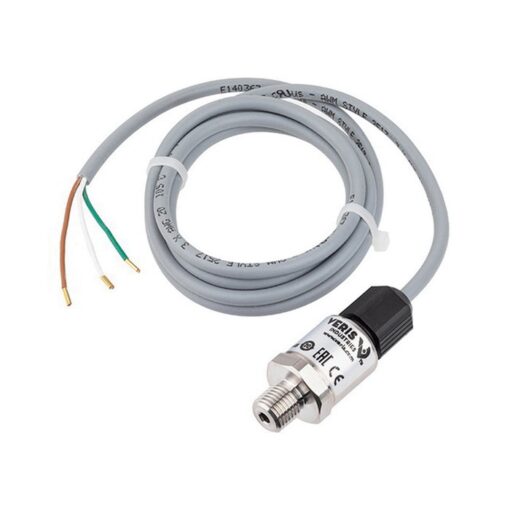

PG07AM Veris
$282.10
The Veris PG07AM Pressure,Gauge,100psig,4-20mA,316SS; 316L Stainless Steel Wetted 4 to 20 mA Gauge Pressure Sensor, 0 to 100 psig
The Veris PG07AM Pressure,Gauge,100psig,4-20mA,316SS; 316L Stainless Steel Wetted 4 to 20 mA Gauge Pressure Sensor, 0 to 100 psig
SPECIFICATIONS
| Application Zone | : | Plant Room |
| Application | : | Pump and Compressor Monitoring | Gas Pressure | Energy and Water Management | Refrigerant Equipment Monitoring |
| Brand | : | Veris |
| Burst Pressure | : | 500 psig (34 bar) |
| Calibration Certificate | : | No |
| Dimension Depth | : | 1.0″ (25 mm) |
| Dimension Height | : | 3.5″ (88 mm) |
| Dimension Width | : | 1.0″ (25 mm) |
| Display Type | : | None |
| Electrical Wiring | : | 3-wires | 2-wires (loop-powered) |
| Fitting Material | : | Stainless Steel |
| Fitting Size | : | 1/4″ NPT |
| Fitting Type | : | Male |
| IP Protection | : | IP66 (NEMA 4) |
| Measurement Type | : | Gauge Pressure |
| Medium | : | Water |
| Model | : | PG07AM |
| Mounting | : | Pipe |
| Operating Humidity | : | 0 – 95% RH, non-condensing |
| Operating Temperature | : | -22 – 248 °F (-30 – 120 °C) |
| Output Specifications | : | 4 – 20 mA |
| Outputs | : | Analog output |
| Pressure Measurement Accuracy | : | ±0.25% BFSL |
| Pressure Measurement Range | : | 0 – 100 psi (0 – 7 bar) |
| Product Certification | : | CE |
| Product Type | : | Sensor |
| Range | : | PG |
| Supply Voltage DC Range | : | 10 – 28 VDC |
| Warranty | : | 5 years |
FEATURES
The PG series pressure transducers are compatible with a variety of HVAC and industrial applications, such as refrigeration measurement, pneumatic pressure measurement, gas pressure measurement, pump inlet and outlet fluid pressure. They are also compatible with extreme applications, such as aerospace and motor sports equipment. A wide selection of pressure ranges offers application flexibility. The PG series offers a stainless steel housing and all models are warranted for a period of 5 years.
- A wide operating temperature range of -40 to 185 deg F for operation versatility
- Fewer parts to fail – No silicon oil, no internal O-rings, no welds
- Sturdy construction – suitable for high shock and vibration applications
- Rugged – stainless steel wetted construction
- Standard connection – cable gland 59 in L
- Media compatibility – fluids and gases compatible with 316L stainless steel
- Over pressure – 2.5x FS with no change in calibration
- Accuracy includes nonlinearity and hysteresis
| Weight | 3 lbs |
|---|---|
| Dimensions | 4 × 7 × 2 in |
