P545NCB-82C Johnson Controls LUBE OIL Control

Overview

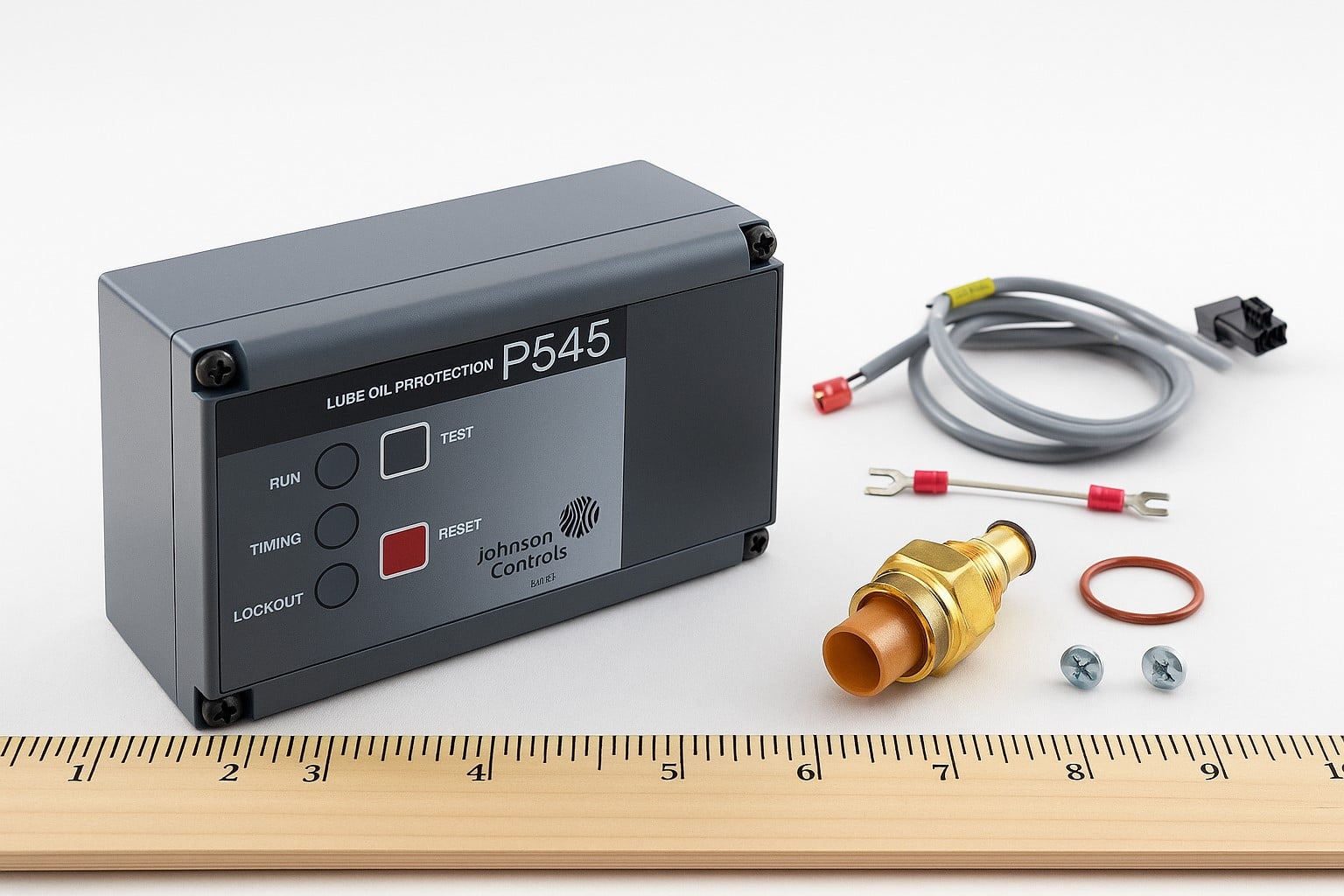

The Johnson Controls P545NCB-82C is an electronic lube oil control designed for refrigeration compressors equipped with an oil pump, specifically engineered for Carlyle compressors. It continuously monitors net lube oil pressure and de-energizes the compressor if the pressure drops below the recommended threshold for longer than the designated time delay, preventing compressor wear and damage.

Features

• Continuous monitoring of net lube oil pressure with automatic compressor lockout
• Front-mounted LEDs providing real-time lubrication system status indications
• User-selectable anti-short cycle time delays to minimize compressor short cycling
• Built-in test circuit for quick verification of proper control operation
• SPDT relay contacts supporting liquid line solenoid and alarm applications

Specifications

• Brand: Johnson Controls
• Model: P545NCB-82C
• Input Voltage: 120/240V AC
• Time Delay: 120 seconds
• Relay Output: SPDT
• Compatibility: Carlyle compressors

Applications

• Lubrication protection and management in Carlyle refrigeration compressors
• Direct replacement of worn or failed electronic lube oil controls
• Commercial HVAC, refrigeration, and industrial cooling systems requiring reliable oil pressure monitoring
