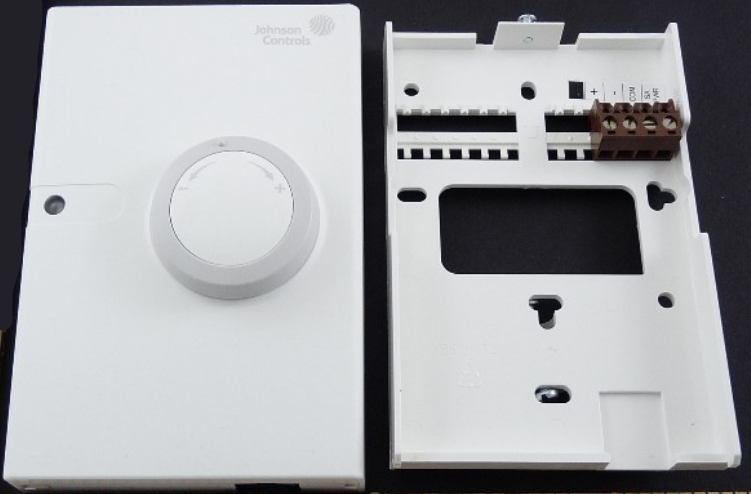

NS-BTP7003-0 Johnson Controls Sensor

Overview

The Johnson Controls NS-BTP7003-0 is a network zone sensor designed for high-precision environmental monitoring in commercial HVAC systems. It functions directly with Metasys system Field Equipment Controllers (FECs), Input/Output Modules (IOMs), Variable Air Volume Modular Assemblies (VMA16), and Facility Explorer FX-PC Series Programmable Controllers, communicating seamlessly via the Sensor Actuator (SA) Bus.

Features

• Temperature-only monitoring utilizing a highly reliable sensing element.
• Integrated warm/cool setpoint adjustment dial for easy local control.
• Occupancy override button to allow manual comfort adjustments.
• Built-in address switches (DIP switches) for flexible network setup.
• Convenient screw terminal blocks for secure wiring terminations.

Specifications

• Temperature Sensor Type: 1k Ohm Platinum Resistance Temperature Detector (RTD), Class A per IEC.
• Supply Voltage: 9.8 to 16.5 VDC; 15 VDC nominal (powered from the SA Bus).
• Current Consumption: 13 mA maximum (non-transmitting).
• Temperature Measurement Range: 32.0°F to 104.0°F (0.0°C to 40.0°C).
• Network Sensor Addressing: DIP switch addressable from 200 to 203 (factory set at 203).
• Wire Size: 18 to 22 AWG for screw terminal models (22 AWG recommended).
• Dimensions: 4-23/32 x 3-5/32 x 1-3/8 inches (120 x 80 mm).

Applications

• Designed for zone temperature monitoring and climate control integration in commercial and institutional spaces.
• Ideal for high-energy usage environments such as schools, dormitories, offices, hospitals, and hotels.
• Well-suited for wallbox or surface-mount installations operating directly with digital controllers to maintain building comfort and efficiency.
