NS-BTP7001-0 Johnson Controls Sensor

Overview

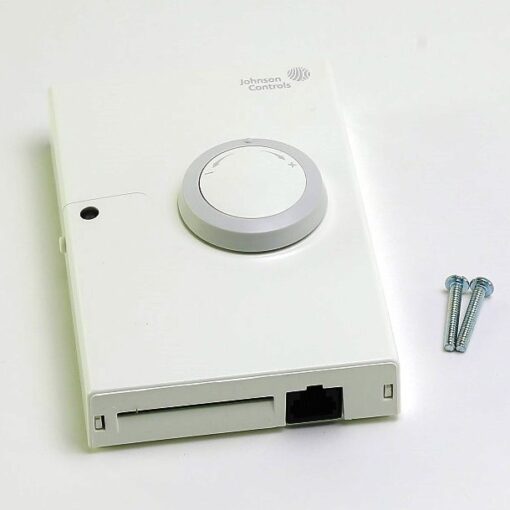

The Johnson Controls NS-BTP7001-0 is a discontinued electronic network zone sensor designed to monitor room temperature in commercial HVAC and building automation systems. Built to function seamlessly on the Sensor Actuator (SA) Bus, this unit transmits accurate environmental data directly to digital field controllers, enabling precise zone-level climate management. This model features a vertical design suitable for wallbox or surface mounting and comes with a prominent Johnson Controls logo on its face.

Features

• SA Bus Integration: Enables direct digital communication with Metasys and Facility Explorer field equipment controllers.
• Temperature Adjustment: Equipped with a localized warmer/cooler dial allowing building occupants to make minor adjustments to the zone setpoint.
• Occupancy Override: Features a built-in push-button to signal occupancy status, temporarily overriding automated time-of-day schedules.
• Flexible Terminations: Designed with a modular jack interface for streamlined field wiring and connection.
• Address Switches: Includes physical onboard DIP switches to easily configure unique device addresses in multi-sensor averaging applications.

Specifications

• Device Address: DIP switch selectable from 200 to 203 (default fixed address of 199 for non-averaging models).
• Supply Voltage: 9.8 VDC to 16.5 VDC (15 VDC nominal) supplied directly from the SA Bus.
• Current Consumption: 13 mA maximum under non-transmitting operation.
• Temperature Measurement Range: 32.0°F to 104.0°F (0.0°C to 40.0°C).
• Sensor Accuracy: ±1.0°F (±0.6°C) featuring a premium local platinum resistance temperature detector (RTD).
• Default Adjustment Range: ±5.0°F (±3.0°C) via the warmer/cooler dial interface.
• Dimensions: 120 mm x 80 mm x 35 mm (4-23/32 in. x 3-5/32 in. x 1-3/8 in.).
• Operating Conditions: 32°F to 104°F (0°C to 40°C); 10% to 90% RH, non-condensing.
• Wiring Size: 26 AWG recommended using three twisted pair (6 conductors) for modular jack models.

Applications

The NS-BTP7001-0 is deployed as an indoor room zone sensor within modern commercial, retail, hotel, and office buildings utilizing centralized building automation architectures. It is primarily used to feed local temperature parameters back to Variable Air Volume (VAV) controllers, Field Equipment Controllers (FECs), and Input/Output Modules (IOMs) to establish localized comfort loops and demand-oriented ventilation adjustments.
