NS-BTB7002-0 Johnson Controls Sensor

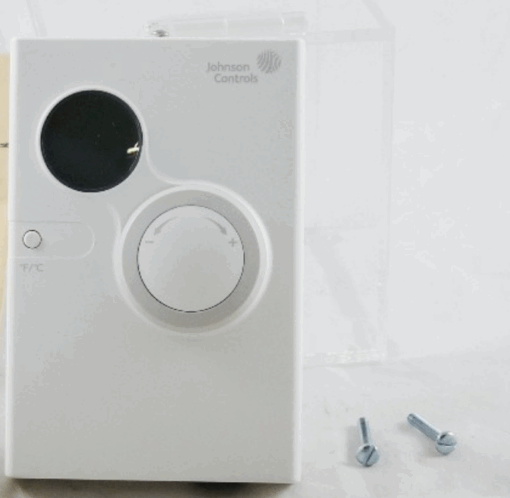

The Johnson Controls NS-BTB7002-0 network zone sensor

Datasheet

Installation Guide

Catalog Page

The NS Series Network Sensor offering includes NS Series Network Zone Sensors and NS Series Network Discharge Air Sensors. The NS Series Network Sensors are designed to function directly with Metasys® system Field Equipment Controllers (FECs), Input/Output Modules (IOMs), Variable Air Volume (VAV) Modular Assembly (VMA16) Controllers, and Facility Explorer FX-PC Series Programmable Controllers (FX-PCGs, FX-PCVs, and FX-PCXs).

The majority of NS Series Network Zone Sensors monitor room temperature; however, options are available to also monitor zone humidity, carbon dioxide (CO2), local temperature setpoint adjustments, and other variables. This data is transmitted to a controller on the Sensor Actuator (SA) Bus

Features

• BACnet® Master-Slave/Token-Passing (MS/TP) protocol communication — provides compatibility with Metasys system field controllers and Facility Explorer programmable controllers in a proven communication network
• backlit Liquid Crystal Display (LCD) available on some models — provides real-time status of the environment with backlighting activated during user interaction
• simple temperature setpoint adjustment available on some models — enables you to change the setpoint with the turn of a dial
• onboard PIR occupancy sensor available on some models — maximizes up to 30% energy savings in high-energy usage environments, and facilitates trending of floor space usage
• temporary occupancy available on some models — provides a timed override command, which temporarily initiates an alternate mode
• field selectable default display setting on some models — allows you to toggle between temperature and RH on the display, and set the desired default for continuous viewing
• Fahrenheit/Celsius (F/C) button available on some models — toggles the display temperature between degrees Celsius and degrees Fahrenheit
