MS-IOM4711-0 Johnson Controls

Overview

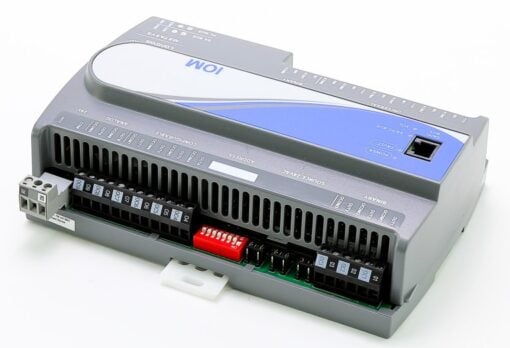

The Johnson Controls MS-IOM4711-0 is a versatile 17-point Input/Output Module (IOM) designed to expand the point capabilities of Metasys system field controllers, such as FECs, FACs, and VMAs. Operating on a 24 VAC supply via the RS-485 BACnet MS/TP protocol, it integrates seamlessly into both Johnson Controls and third-party Building Automation Systems (BAS). It can reside on either the Field Controller (FC) Bus as a supervisory point multiplexer or on the Sensor/Actuator (SA) Bus to provide flexible monitoring and precise control over a wide variety of HVAC and industrial automation equipment.

Features

• 17-Point Expandability: Features a highly flexible point configuration consisting of 6 universal inputs, 2 binary inputs, 2 analog inputs, 3 binary outputs, and 4 configurable outputs.
• Dual Bus Versatility: Can be installed on either the FC Bus or the SA Bus depending on system monitoring and expansion requirements.
• Standardized Hardware and Software: Uses a common platform design to support consistent wiring workflows and single-tool commissioning.
• Advanced Microprocessor and Memory: Equipped with a 32-bit Renesas microcontroller, 512 KB Flash memory, and 128 KB RAM for efficient data processing.
• Robust Enclosure: Housed in a durable, self-extinguishing ABS and polycarbonate plenum-rated enclosure featuring an integral end-of-line (EOL) switch.

Specifications

• Supply Voltage: 24 VAC nominal (20 to 30 VAC), 50/60 Hz, Class 2 or SELV.
• Power Consumption: 14 VA maximum (excluding external peripheral load on outputs).
• Input/Output Breakdown: 6 Universal Inputs (0-10 VDC, 4-20 mA, 0-600k ohm, dry contact), 2 Binary Inputs (dry contact or pulse counter), 2 Analog Outputs (0-10 VDC, 4-20 mA), 3 Binary Outputs (24 VAC Triac), 4 Configurable Outputs (0-10 VDC or 24 VAC Triac).
• Resolution: 16-bit analog input and analog output resolution.
• Enclosure Rating & Dimensions: IP20 compliance; measures 150 mm x 190 mm x 53 mm (5-7/8 in. x 7-1/2 in. x 2-1/8 in.); weighs 0.5 kg (1.1 lb).
• Ambient Operating Conditions: 0°C to 50°C (32°F to 122°F); 5% to 95% RH non-condensing.

Applications

• Point expansion for Field Equipment Controllers (FEC) and Advanced Application Field Equipment Controllers (FAC).
• Supervisory I/O point multiplexing on Network Automation Engines (NAE) and Network Control Engines (NCE).
• Commercial and industrial HVAC environmental control and building automation processes.
• Metasys release smoke control systems (specifically supporting UL 864 UUKL/UUKLC 10th Edition listings).
