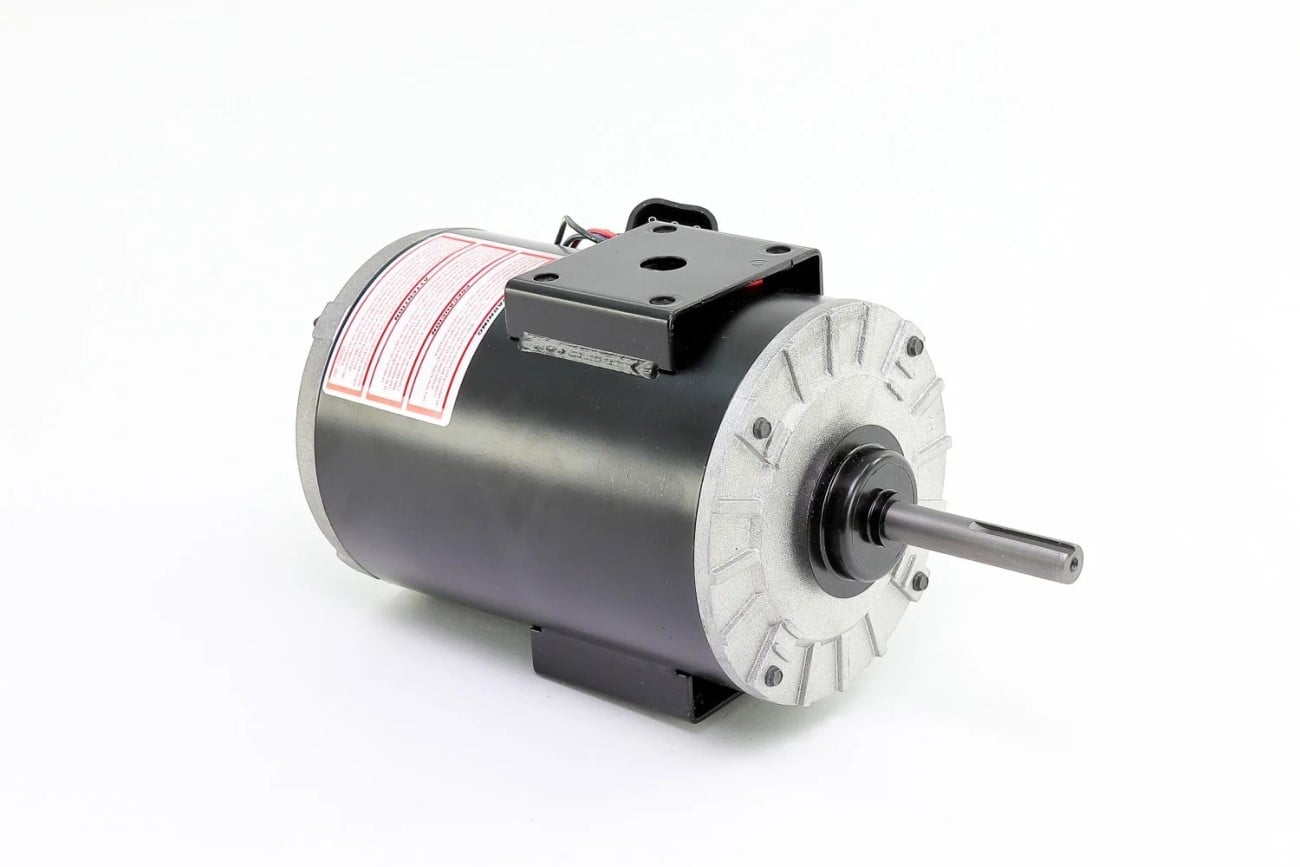

MOT14011 Trane Motor

Overview

The Trane MOT14011 Motor is an Original Equipment Manufacturer (OEM) electric motor, commonly used as a replacement part in Trane Heating, Ventilation, and Air Conditioning (HVAC) systems. It is identified as a 1.5/1.0 HP motor.

Features

• Genuine Original Equipment Manufacturer (OEM) part.
• Designed for Trane HVAC systems.
• 1.5/1.0 horsepower rating.
• Dual speed motor (1140/950 RPM).
• Three-phase operation.

Specifications

• Product Number: MOT14011
• HP: 1.5/1.0
• RPM: 1140/950 (or 1150 listed in one source)
• Voltage: 380-415V/460V
• Phase: 3 PH
• Frequency: 60/50 HZ
• FLA (Full Load Amps): 2.7/2.5
• LRA (Locked Rotor Current): 13.5 @ 460V
• Frame: 56Y
• Motor Enclosure Type: Totally Enclosed Air-Over
• Mounting Type: Vertical Shaft Up
• Shaft Diameter: 0.625 inches
• Shaft Length: 3.44 inches
• Thermal Protector: TRUE

Applications

The Trane MOT14011 motor is primarily used as a reliable replacement or component part within various commercial and industrial Trane Heating, Ventilation, and Air Conditioning (HVAC) equipment.
