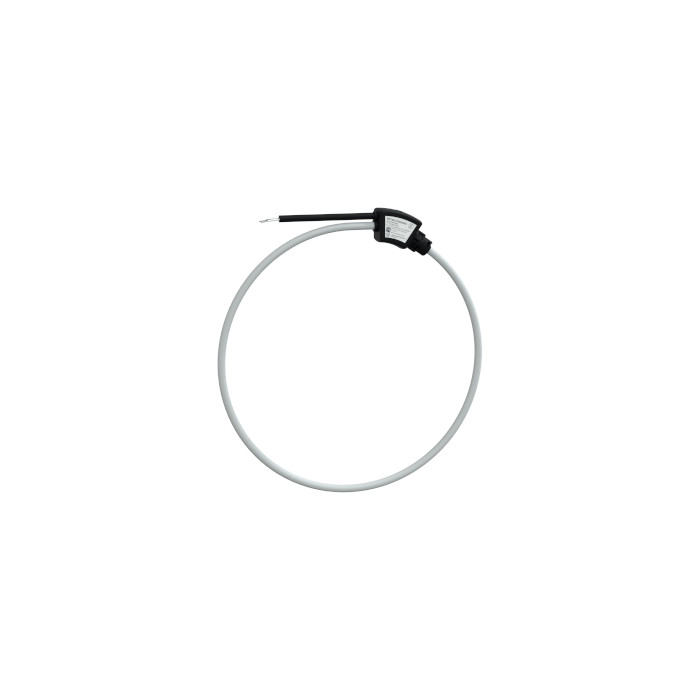

METSECTR90500U Schneider Electric Current Transformer
$270.60
METSECTR90500U Schneider Electric Current Transformer PowerLogic – Ropestyle current transformer – 5000 A – d=287 mm – lead=2.4 m
METSECTR90500U Schneider Electric Current Transformer
PowerLogic – Ropestyle current transformer – 5000 A – d=287 mm – lead=2.4 m
CT Rogowski 900mm coil UL2808 5000A
CT Rogowski 900mm coil length UL2808 5000A Cl 1.0 Window Size 286mm Lead 2.4mtr
Product Specifications
| Accessory / Separate Part Category | Measurement accessory |
| Brand | Schneider Electric |
| By Schneider | Yes |
| California proposition 65 | WARNING: Cancer – www.P65Warnings.ca.gov |
| Carbon footprint (kg CO2 eq, Total Life cycle) | 2 |
| current transformer type | Flexible core |
| Diameter | closed 11.3 in (287 mm) |
| Final Result for Connectable | Not connectable |
| Final Result for Flywheel performance tracking | Non Flywheel |
| Frequency Measurement Range | 50…1500 Hz |
| Global Keywords | Class 1 accuracy |
| Current transducer | |
| Current transformer | |
| Energy meter | |
| Flexible coil current transformer | |
| PowerLogic | |
| Rogowski | |
| Rogowski coil | |
| UL2808 | |
| Global warming ; Total life cycle? | 2 kg CO2 eq. |
| Height | Opened: 35.4 in (900 mm) |
| Indivisible Sale Qty | 1 |
| installation category | IV |
| Life cycle Comment | Anne-Sophie to provide PPM name |
| Manufacturer | Schneider Electric |
| Measurement Current | 50…5000 A |
| Network Frequency | 50 Hz |
| Number of Units in Package 2 | 25 |
| Package 2 GTIN | 13606487157363 |
| Package 2 Height | 11.81 in (30.000 cm) |
| Package 2 Length | 15.75 in (40.000 cm) |
| Package 2 Weight | 11.883 lb(US) (5.390 kg) |
| Package 2 width | 11.81 in (30.000 cm) |
| Packaging made with recycled cardboard | No |
| Packaging without single use plastic | No |
| Pollution Degree | 2 |
| Product Certifications | CE |
| CURus | |
| UL Recognized | |
| Product Or Component Type | Current transducer |
| Range | PowerLogic |
| Range Compatibility | Acti 9 Acti9 iEM3000 iEM3555 |
| Acti 9 Acti9 iEM3000 iEM3565 | |
| PowerLogic PowerLogic EM3500 EM3502A | |
| PowerLogic PowerLogic EM3500 EM3550A | |
| PowerLogic PowerLogic EM3500 EM3555A | |
| PowerLogic PowerLogic EM3500 EM3560A | |
| PowerLogic PowerLogic EM3500 EM3561A | |
| PowerLogic PowerLogic EM3570 EM3570A | |
| PowerLogic PowerLogic EM4200 EM4235 | |
| PowerLogic PowerLogic EM4200 EM4236 | |
| REACh free of SVHC | Yes |
| Relative Humidity | 0…95 % |
| Sales Unit | PCE |
| Standards | ANSI/IEEE C57.13 |
| EN 61010-1 | |
| EN 61010-2-032 | |
| UL 2808 | |
| UL 61010-1 | |
| UL 61010-2-032 | |
| Take-back | No |
| Temperature Ambient Operating Range | 5…140 °F (-15…60 °C) |
| Temperature Shipping and Storage Range | -40…158 °F (-40…70 °C) |
| thickness | 0.3 in (8 mm) |
| Toxic heavy metal free | Yes |
| Unit Type of Package 2 | S03 |
| Volume of Package 2 | 36000.000 cm3 |
| Weight | 20 lbs |
|---|---|
| Dimensions | 13 × 13 × 9 in |
