M7410F3006 Honeywell
$225.00

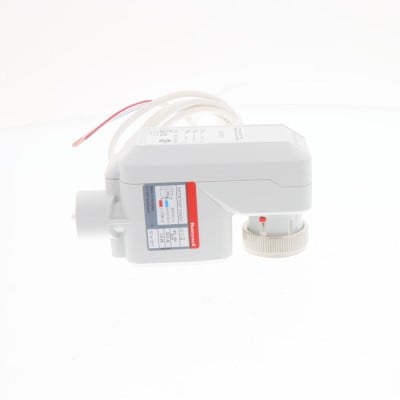

THE HONEYWELL M7410F3006 Cartridge Globe Valve Actuator, NSR 300N Modulating, Used with V58 Valves (Series 3000)
THE HONEYWELL M7410F3006 Cartridge Globe Valve Actuator, NSR 300N Modulating, Used with V58 Valves (Series 3000)
Overview
M6410A and M7410F Cartridge Globe Valve Non-Spring Return Actuators are small electric actuators for individual room control that provide floating or modulating control of V5852, V5862 two-way or V5853, V5863 three-way valves.
Features
- Suitable for Excel/IRC system or other controllers providing specified signals.
- Magnetic coupling for torque limitation independent of voltage supply and self-adjustment of the close-off port.
- No mounting tools required.
- Small size allows installation in limited space of fan coil units, induction units, and small reheaters or recoolers.
- Visual position indication (red pin).
Product Specifications
| Application | HVAC |
| Dimensions (in.) | 2 3/8 in. high x 1 15/16 in. wide x 3 15/16 in. deep |
| Dimensions (mm) | 61 mm high x 49 mm wide x 100 mm deep |
| Includes | 1/2 in. conduit hub |
| Used With | 1 inch to 1-1/2 inch V58XX Globe Valves |
| Weight (lb) | 0.35 lb |
| Weight (kg) | 0.16 kg |
| Materials | Low Maintenance Plastic Housing |
| Comments | Direct/Reverse Acting Switch |
| Item Type | Product |
| Mounting | Threads onto V58XX valve bonnet |
| Frequency | 50 Hz; 60 Hz |
| Approvals, Underwriters Laboratories Inc. | Flammability Rating UL94V-5V |
| Electrical Connections | Plenum-rated cable |
| Operating Humidity Range (% RH) | 5 to 95% RH |
| Supply Voltage | 24 Vac +10%, -30% |
| Power Consumption | Driving– 1.4 VA |
| Shipping and Storage Temperature Range (F) | -40 F to +158 F |
| Shipping and Storage Temperature Range (C) | -40 C to +70 C |
| Ambient Temperature Range (F) | 32 F to 122 F |
| Ambient Temperature Range (C) | 0 C to 50 C |
| Environmental, Electrical or Ingress Protection Rating | IP42,Class I Insulation (24 Vac) |
| Internal Auxiliary Switch | 0 |
| Fluid Temperature (C) | 130 C Maximum |
| Fluid Temperature (F) | 266 F Maximum |
| Actuator Type | Valve |
| Control Signal | 0 to 10 Vdc; 2 to 10 Vdc |
| Fail Safe Mode | Stays in place |
| Torque Rating (lb-in.) | 67.5 lbf |
| Torque Rating (Nm) | 300 N |
| Switches | No |
| Stroke (in.) | 1/4 in. |
| Stroke (mm) | 6 mm |
| Cable | Threaded conduit connector |
| Timing, Nominal | Driving @ 60 Hz (sec)– 125 sec |
| Feedback | No |
| Manual operation | None (use valve dust cap) |
| Input Impedance | 100K ohm |
Additional Information
| Weight | 3 lbs |
|---|---|
| Dimensions | 5 × 5 × 4 in |
