M6284F1013-S Honeywell Actuator
$1,450.00
150 lb-in, NSR, Floating with non-linear feedback, 2 Aux. Switches, 120V

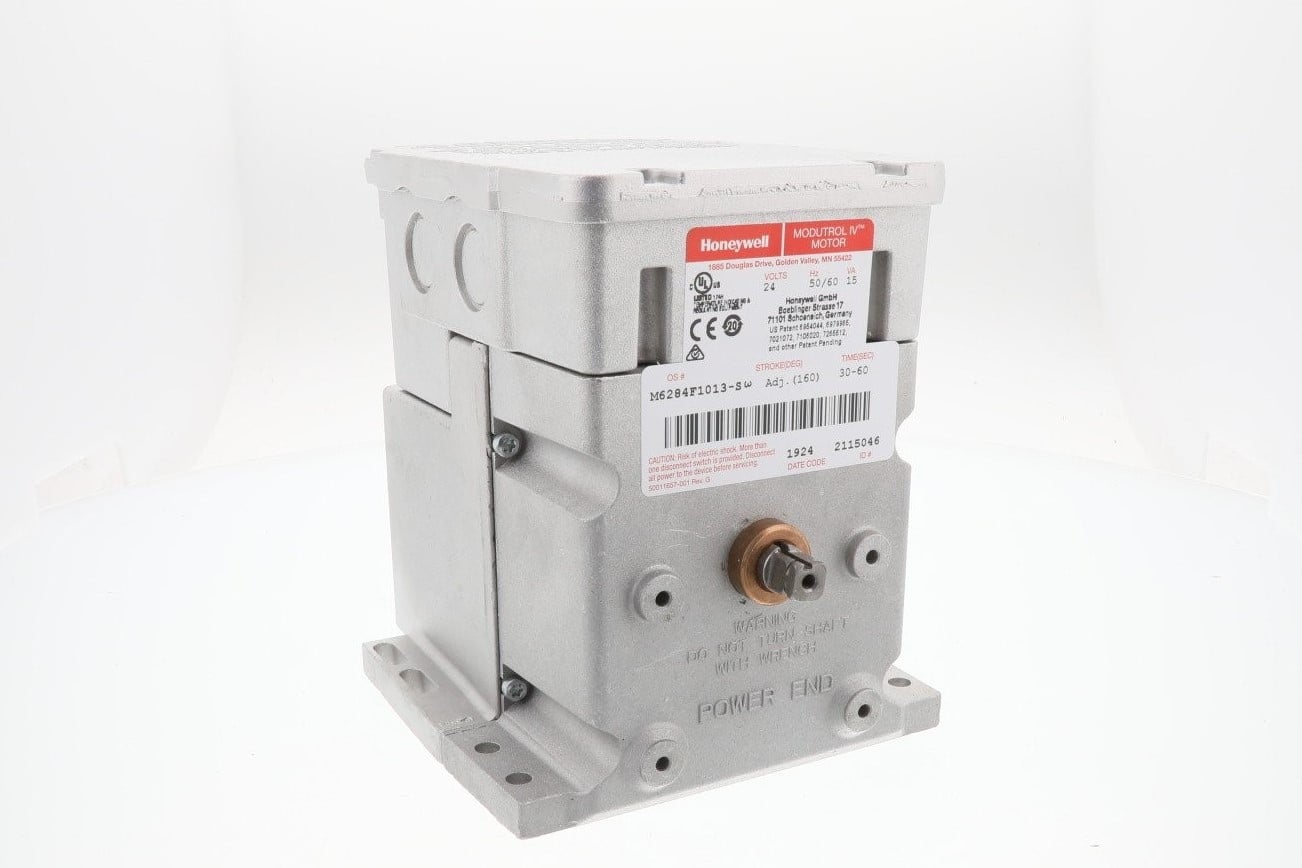

Honeywell M6284F1013-S Electric Actuator – 24 V, Non-Spring-Return, Slaving Application Actuator
The Honeywell M6284F1013-S actuator is a reliable, OEM-grade electric actuator designed specifically for slaving applications in HVAC and building automation systems. Operating on 24 V power, this foot-mounted, non-spring-return actuator provides consistent, synchronized motion when paired with a master actuator. Equipped with two internal auxiliary switches, it offers precise coordination and feedback within multi-actuator control assemblies.
Built for durability and dependable performance, the M6284F1013-S is commonly used in applications requiring multiple actuators to operate in unison — such as large dampers, multi-section air handling units, and complex HVAC control systems.
Features
• Genuine Honeywell M6284F1013-S electric actuator
• 24 V AC power supply
• Non-spring-return design for powered positioning
• Foot-mounted housing for secure installation
• Designed specifically for slaving (follower) applications
• Two internal auxiliary switches for coordination and control logic
• Durable construction for long service life
• OEM-grade reliability for HVAC and building automation systems
Benefits & Applications
• Ideal for slaving applications where multiple actuators must operate together
• Provides synchronized motion with a master actuator
• Auxiliary switches allow reliable coordination and feedback
• Suitable for air handling units, large dampers, and multi-zone HVAC systems
• OEM Honeywell quality ensures compatibility and long-term reliability
• Preferred by HVAC contractors, controls technicians, and facility managers
Technical Specifications
| Application | Electric |
| Dimensions (in.) | 6 7/16 in. high x 5 1/2 in. wide x 7 5/16 in. deep |
| Dimensions (mm) | 164 mm high x 140 mm wide x 185 mm deep |
| Weight (lb) | 5 lb |
| Comments | non-linear feedback, for slaving applications only |
| Item Type | Product |
| Mounting | Foot-mounted |
| Frequency | 50 Hz; 60 Hz |
| Approvals, Underwriters Laboratories Inc. | Listed: File No. E4436, Guide No. XAPX for USA and Canada |
| Electrical Connections | Quick-connect terminals |
| Supply Voltage | 24V |
| Power Consumption | Driving– 15 VA |
| Approvals, CE | EN55011 (Emission) EN50082-2 (Immunity) 73/23/EEC (LVD) |
| Ambient Temperature Range (F) | -40 F to +150 F |
| Ambient Temperature Range (C) | -40 C to +60 C |
| Internal Auxiliary Switch | 2 |
| Auxiliary Switch Ratings | AFL – 120 Vac– 7.2A; ALR- 120 Vac– 43.2A; AFL – 240 Vac– 3.6A; ALR- 240 Vac– 21.6A |
| Stroke | Adjustable; 90 to 160 degrees, Symmetrical |
| Shaft Dimensions (in.) | 375 in. Square |
| Control Signal | Floating |
| Fail Safe Mode | Non-Spring Return |
| Torque Rating (lb-in.) | 150 lb-in. |
| Torque Rating (Nm) | 17 Nm |
| External Auxiliary Switches Available | Yes |
| Shaft Rotation (upon control signal increase) | Dependent on wiring (normally closed) |
| Factory Stroke Setting | 160 degrees |
| Timing, Nominal | 30-60 sec |
| Feedback | Yes |
| Shaft Dimensions (mm) | 10 mm Square |
| Motor shafts | Dual-ended shaft |
| Deadweight Load on Shaft | Either End– 200 lbs.; Combined on both Shafts– 300 lbs. |
| Internal Transformer | None |
Applications
• Slaving or follower control in multi-actuator HVAC systems
• Large or sectional dampers requiring synchronized movement
• Air handling units and ventilation systems
• Building automation systems with coordinated actuator control
• Retrofit or replacement for existing Honeywell slaving actuators
This actuator is intended for slaving applications only and should not be used as a standalone master actuator.
Installation & Use Notes
• Installation should be performed by qualified HVAC or controls professionals
• Confirm compatibility with the master actuator before installation
• Ensure correct wiring of auxiliary switches for coordinated operation
• Verify 24 V control power before energizing
• After installation, test synchronized movement and switch operation
• Follow all applicable electrical and building codes
Why Buy from APEX Controls
• Genuine Honeywell OEM actuator — no aftermarket substitutes
• Ideal for professional HVAC and building automation applications
• Trusted supplier for contractors, controls technicians, and facility managers
• Suitable for retrofit and new installations requiring slaving actuators
• Proven reliability and performance in coordinated HVAC control systems
| Weight | 6 lbs |
|---|---|
| Dimensions | 10 × 7 × 8 in |
