LC-ZFR1822-0 Johnson Controls Verasys

Overview

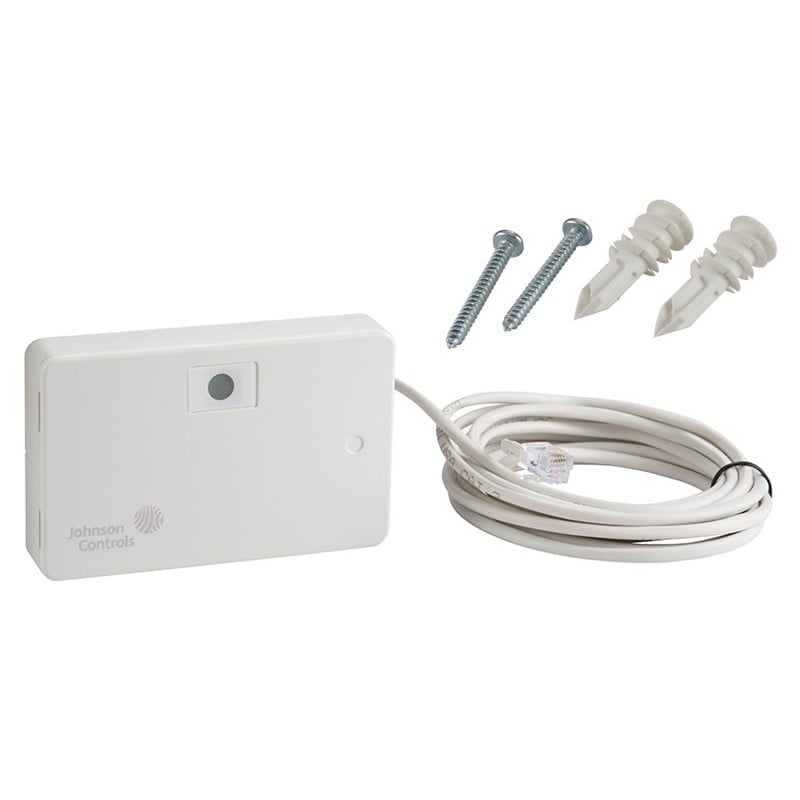

The Johnson Controls LC-ZFR1822-0 Verasys ZFR Pro Wireless Field Bus Router is a wall-mounted device designed to provide a wireless interface within building automation systems. It functions as part of a Verasys Wireless Field Bus System, enabling wireless communication between field controllers, room sensors, and supervisory controllers via a ZigBee wireless mesh network. When configured with a separate power supply, it can also operate as a standalone repeater to extend the transmission range and strengthen the reliability of the network.

Features

• Wireless mesh network utilizing self-healing ZigBee technology to automatically form multiple transmission paths.
• Dual functionality as either a router connected directly to a field controller or a standalone repeater with a separate power supply.
• Flush wall-mount design optimized for open areas to improve communication distances.
• Plug-and-play transparency allowing supervisory controllers to discover, map, and integrate wireless devices without special setup procedures.
• Includes a 10-foot RJ-12 connecting cable for flexible placement away from the controller.

Specifications

• Power Input: 15 VDC nominal, provided via RJ-12 cable from field controller or repeater power supply.
• Wireless Band: 2.4 GHz ISM bands, Direct-Sequence Spread-Spectrum.
• Transmission Power: 10 mW maximum.
• Transmission Range: Up to 76.2 meters (250 feet) maximum line-of-sight; 15 meters (50 feet) recommended.
• Operating Ambient Conditions: 0°C to 50°C (32°F to 122°F); 5% to 95% RH, non-condensing.
• Dimensions: 61 mm x 100 mm x 20.5 mm (5-3/8 in. x 3-15/16 in. x 3/4 in.).
• Housing Material: White PC/ABS Cycoloy plastic.
• Compliance: UL 916 Energy Management, FCC Compliant to CFR47 Part 15, CE Mark, Industry Canada (IC) RSS-210.

Applications

• Commercial and industrial HVAC building automation systems utilizing the Verasys or Metasys platforms.
• Wirelessly enabling BACnet MS/TP field controllers and connecting WRZ Series wireless room sensors.
• Extending communication ranges and eliminating dead zones in wireless mesh networks for large or complex building layouts.
• Retrofit and new construction automation projects where running physical communication wiring is impractical.
