KIT1052 Trane Belly Band Kit

Overview

The Trane KIT1052 (also referenced as KIT01052) is an official Original Equipment Manufacturer (OEM) Belly Band Kit. This kit is designed as a replacement part for use in various Trane Heating, Ventilation, and Air Conditioning (HVAC) systems. It is primarily used to mount 48-frame motors, ensuring secure and proper installation within the HVAC unit.

Features

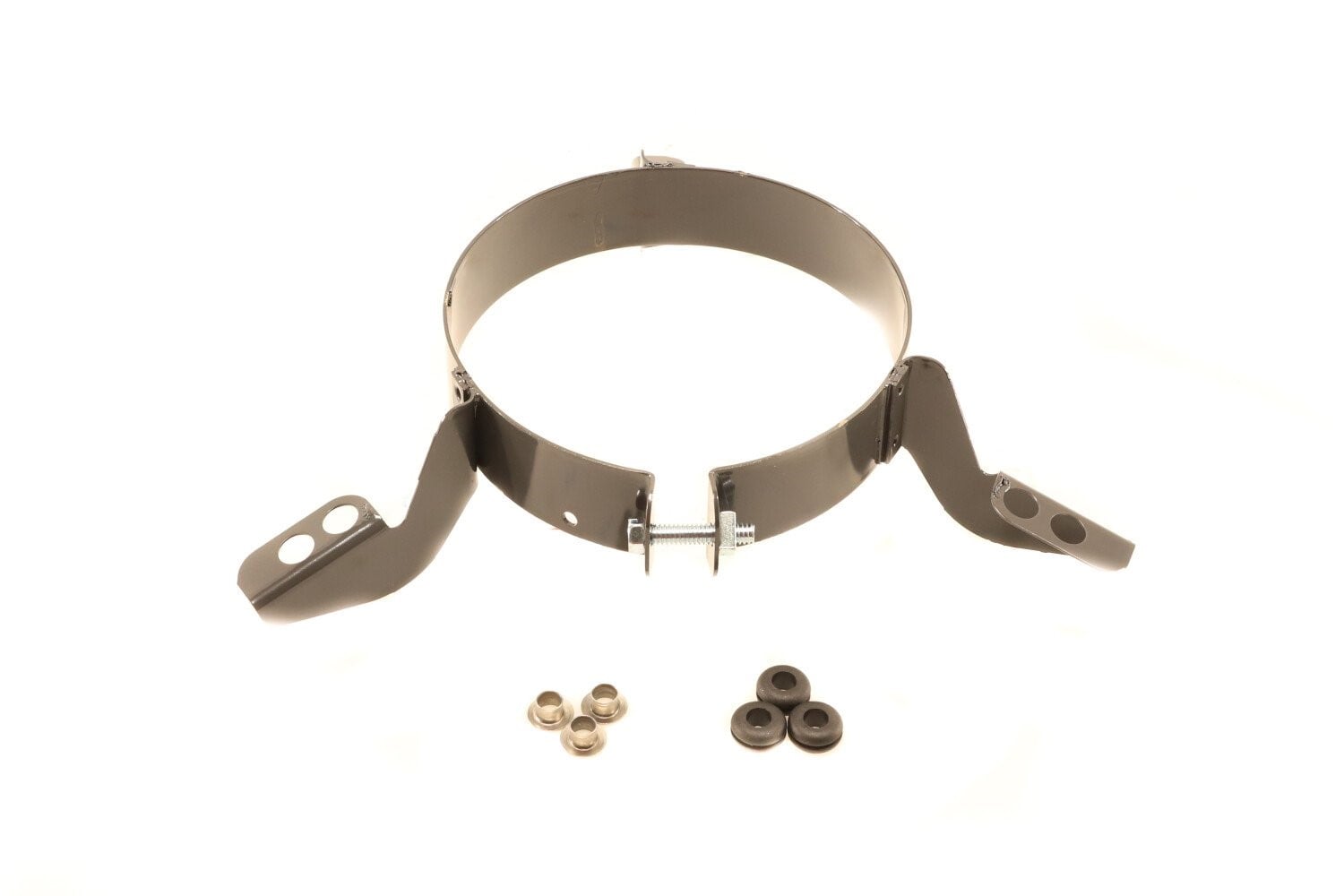

The kit consists of a direct drive belly band mounting ring set. Key components include three welded ears and dual holes for mounting. It is specifically intended for use with 48 frame motors.

Specifications

The kit includes the mounting hardware necessary for securing a motor. Based on dimensional information associated with this part number, measurements include approximately 16.4 inches (41.66 cm), 14.65 inches (37.21 cm), and 6.35 inches (16.13 cm), with a weight of approximately 0.595 lbs (270 g).

Applications

The Trane KIT1052 Belly Band Kit is used within Trane HVAC equipment to mount or secure 48 frame motors, such as those that drive fan blades and blowers. It is an essential component for maintaining the integrity and operation of direct drive systems in furnaces, air handlers, or other related HVAC equipment.
