ED510 Fireye LCD Display Module

Fireye ED510 LCD Display Module with Keypad — 2-Line × 16-Char Backlit Display

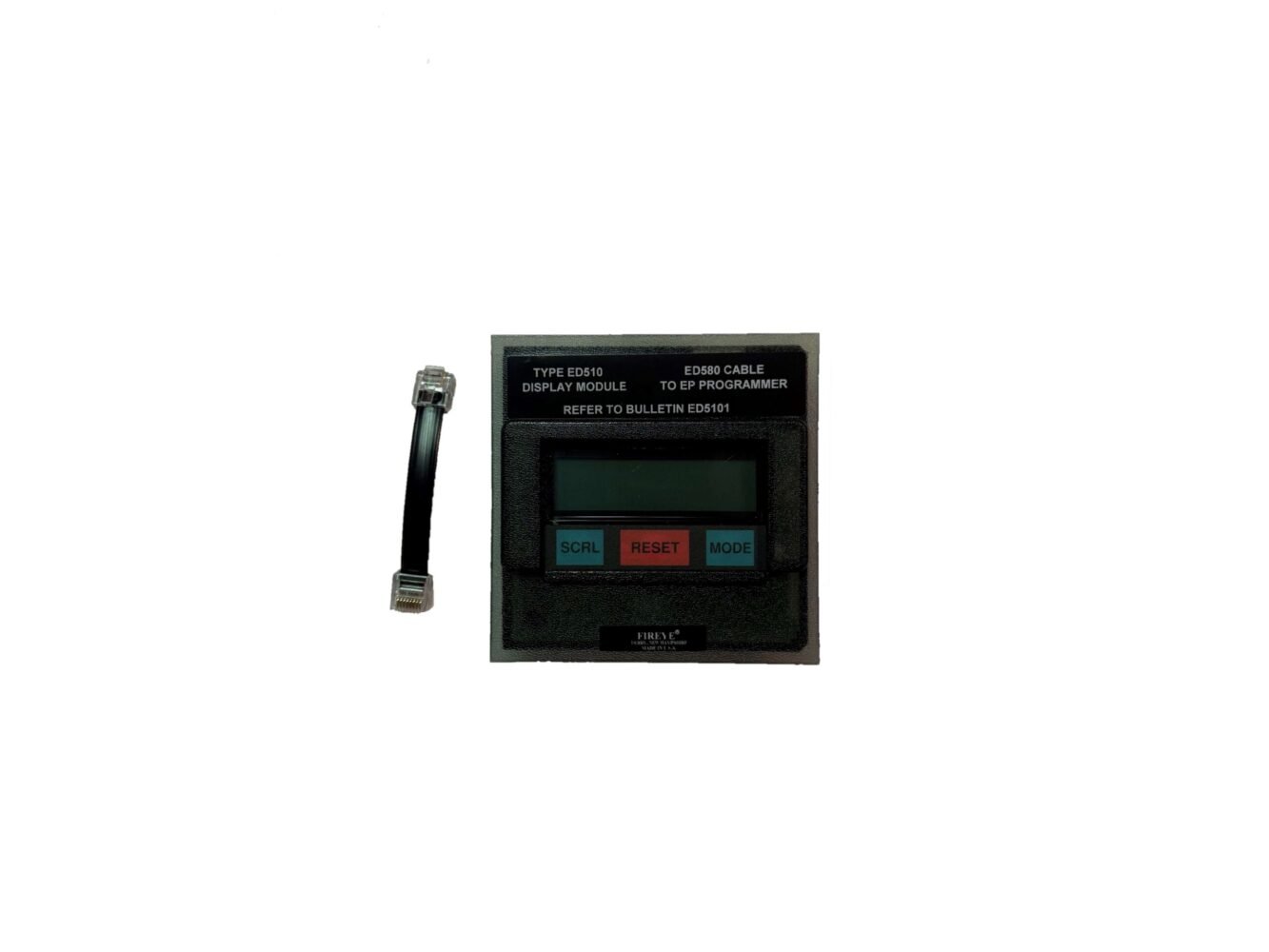

The Fireye ED510 2 LINE X 16 CHARACTER BACKLIT LCD W/KEYPAD

Datasheet

Overview

The Fireye ED510 LCD Display Module is a backlit, alphanumeric display module designed for Flame-Monitor™, EP and EPD style programmer modules, and MicroM series burner management controls. It provides convenient real-time burner status, diagnostics, and historical lockout information in a durable weather-proof enclosure.

Key Features & Benefits

• 2-Line × 16-Character Backlit LCD Display — clear, vented view of operational status, lockout conditions, diagnostics.

• 3-Key Tactile Dome Keypad — SCRL, RESET, MODE keys allow you to scroll burner history, reset lockouts, enter diagnostics or configure E300 expansion messages.

• First-Out Annunciation & Lockout History — shows first failure cause and log of the last six (6) lockouts with burner cycle & hour timestamp.

• Remote Mounting Capability — front-mounts to EP style programmers, or use remote mounting kit (part nos. 129-145-1, 129-145-2) to locate the display remotely. RJ style cable included (ED580-1).

• Durable Housing — weather-proof use (NEMA 4 when used with remote mounting kit), rugged enough for industrial / burner room environments.

• Fast Troubleshooting — diagnostic messages and burner history make it easier to identify and resolve faults without extra tools.

Technical Specifications

Compatible Systems & Applications

• Intended for use with Fireye EP and EPD programmer modules (required for EP, optional/remote for EPD).

• Works with MicroM series controls and the Flame-Monitor system.

• Ideal for burner rooms, control panels where you want local or remote status display of burner operation, lockout causes, diagnostics.

• Useful in industrial/commercial boilers, furnaces, and systems with Flame Safeguard / Burner Management requirements.

Installation & Mounting

• Mount directly to front of EP style programmer.

• For remote installation (e.g. remote panel or visible area), use remote mounting kits 129-145-1 (4-ft) or 129-145-2 (8-ft).

• Use the ED580-1 (1.25 in) cable included; longer cable runs require appropriate cable and remote mount kit size.

• Ensure connections via RJ style connector; follow Fireye’s Bulletin E-8002.

FAQs

Q: What is the purpose of the ED510 display module?
A: To provide real-time burner status, first-out lockout annunciation, lockout history, diagnostics, and responsive feedback in Fireye Flame-Monitor controls.

Q: Which control systems require this display module?
A: Required for EP style programmers; optional (remote) for EPD style; compatible with MicroM systems.

Q: What remote mounting options are available?
A: Remote mounting kits 129-145-1 (4 ft), 129-145-2) (8 ft), includes hardware and cable. Use for panel or spaced mounting.

Q: What are the temperature and environmental ratings?
A: 32°F to 140°F (0°C-60°C). With remote mount kit, housing is weather-proof (NEMA 4).

Why Buy From Apex Controls

• OEM Fireye parts, with full technical documentation and accessory compatibility.

• Real-time stock information — “11 in stock (can be backordered)” for purchasing confidence.

• Fast shipping and expert technical support.

• Trusted supplier since 1990 in flame safeguard and burner control components.

Beckett 7411U equals ED510, and ED580-1
