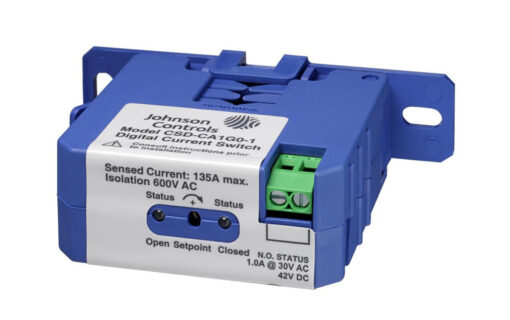

CSD-CA1G0-1 Johnson Controls Current Switch

Overview

The Johnson Controls CSD-CA1G0-1 is a Current Switch Device (CSD) Series digital output current switch designed to non-intrusively detect AC current flowing through a cable or wire. This self-powered, split-core model features an adjustable trip setpoint, making it a cost-effective solution for monitoring the on/off status or proof of operation for electrical loads without requiring an external power supply.

Features

• Split-core design allows for easy installation around existing wires without disconnecting them
• Adjustable trip setpoint ranging from 1.25 A to 135 A
• 100% solid-state output with no moving parts to fail, ensuring long-term reliability
• Polarity-insensitive output simplifies wiring to building automation controllers
• Dual status LED indicators provide clear local visual monitoring
• Completely self-powered operation induces power directly from the monitored line
• Compact size fits easily in tight mechanical enclosures and includes a snap-in mounting bracket

Specifications

• Amperage Range: 1.25 to 135 A
• Switch Setpoint: Adjustable
• Output Type: Solid-state, Normally Open (N.O.)
• Switch Load Capacity: 1 A at 30 VAC / 42 VDC Maximum
• Isolation Voltage: 600 VAC rms
• Frequency Range: 50/60 Hz
• Temperature Range: -15 to 60°C (5 to 140°F)
• Humidity Range: 0 to 95% non-condensing
• Dimensions: 69 x 65 x 27 mm (2-23/32 x 2-9/16 x 1-1/16 in.)

Applications

• Monitoring on/off status and proof of operation for commercial HVAC systems
• Current load sensing for motors driving fans, blowers, and pumps
• Verification of heating coils and lighting system operations in building automation networks
