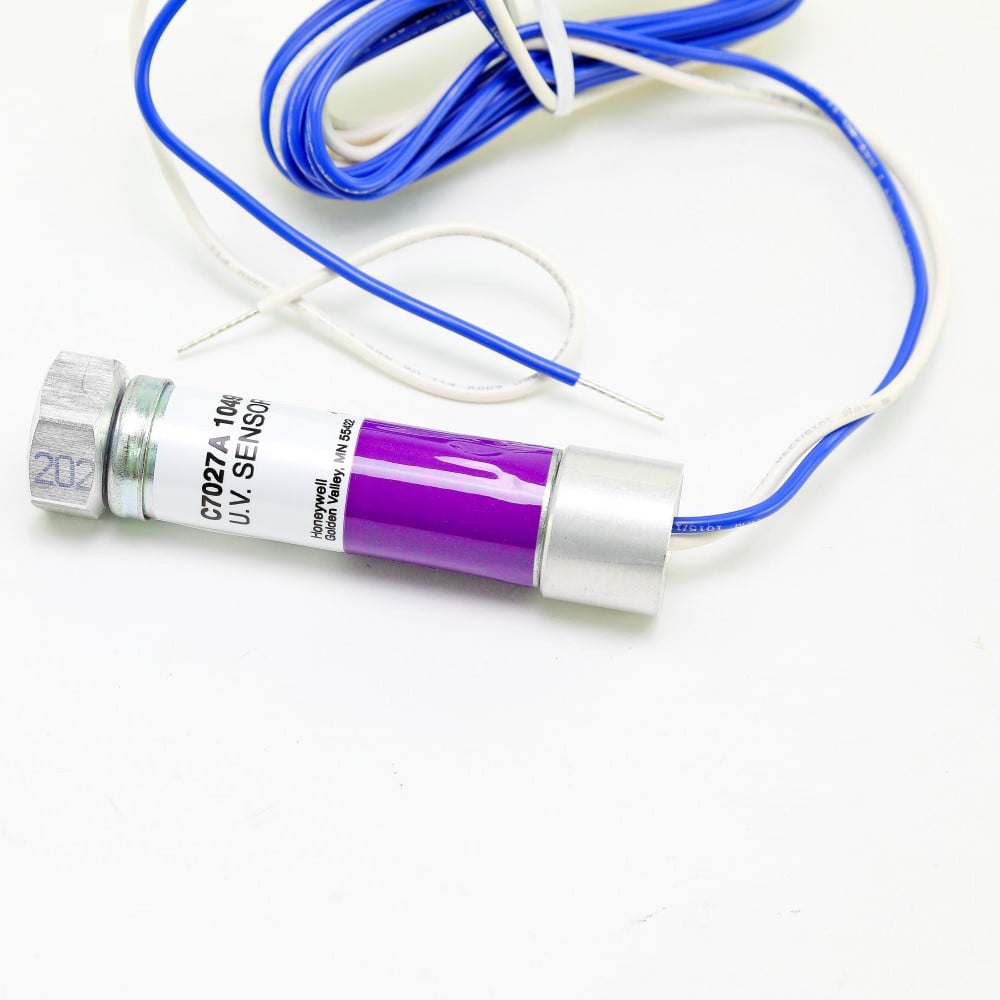

C7027A1049 Honeywell Flame Sensor

Minipeeper Ultraviolet Flame Detector, Used for Coal, Gas and Oil Fired Burners, 96 Inch Lead Length, 0/215 Degree Ambient Temperature, Mounts on 1/2 Inch Sighting Pipe Using A Integral Collar, Includes 1/2 Inch NPT Spud Connector

Overview

Compact flame detector for use with flame safeguard controls with ultraviolet amplifiers.

Features

• Use with Honeywell Flame Safeguard primary safety controls and burners requiring ultraviolet flame detection.
• C7027 mounts on a 1/2 in. sighting pipe by using an integral collar.
• Detectors can be wired in parallel for difficult sighting applications.
• C7027 seals against pressures up to 5 psi (34.5kPa) when correctly installed.
• Allows for blast tube mounting due to compact size.
• C7044 mounts with a two screw bracket.
• The C7044 UV sensor tube is enclosed in a stainless steel housing.
• C7044 has the capability of side or end viewing in flame monitoring applications.

Product Specifications

• Application: Coal fired burners; Gas fired burners; Oil fired burners
• Dimensions (in.): 1 1/16 in. diameter x 4 in. long
• Includes: 1/2 in. NPT threaded spud connector.
• Used With: Flame Amplifiers: R7249A, B, R7849A,B, R7749B, R7259, R7290
• Comments: Detects ultraviolet radiation in flames
• Mounting: Integral nut for 1/2 in. sighting pipe.
• Electrical Connections: 2 NEC Class 1 lead wires
• Vibration: 0.5 G max
• Ambient Temperature Range (F) : 0 F to 215 F
• Lead Length (in.): 96 in.
