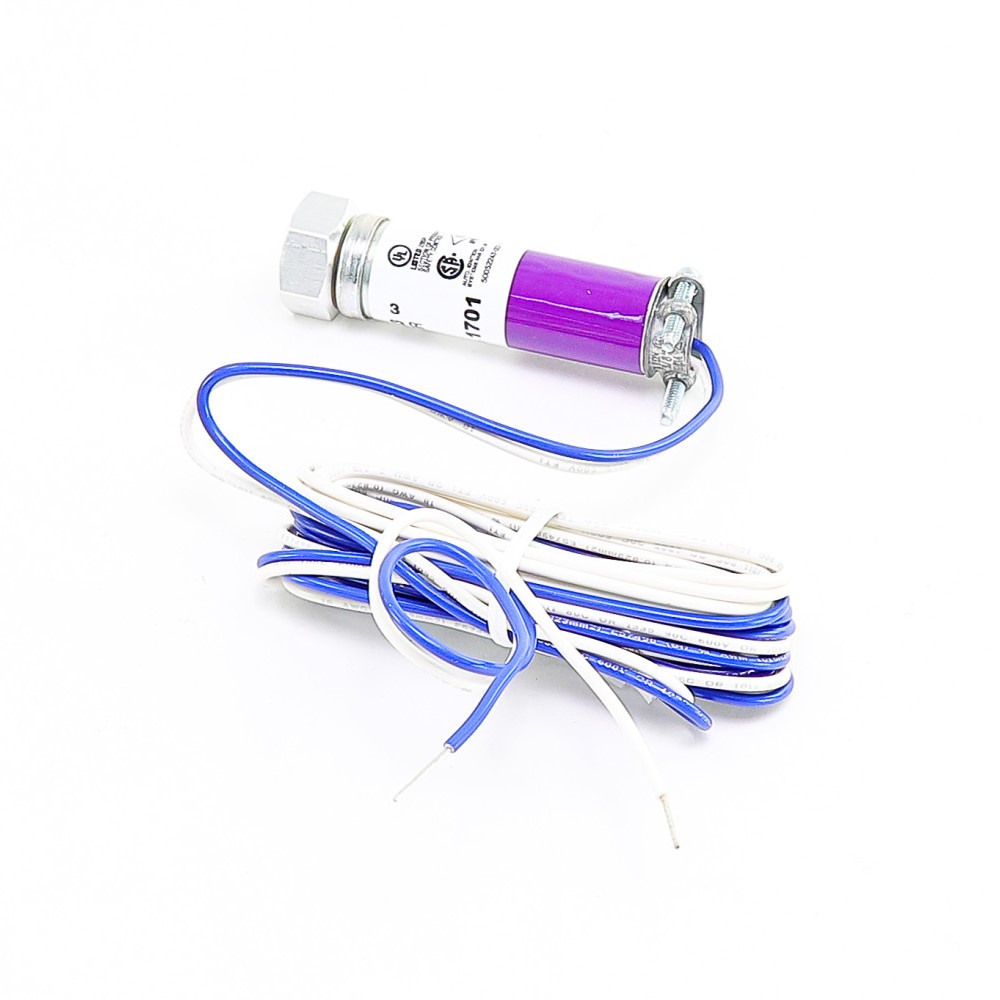

C7027A1023 Honeywell Flame Sensor
$235.00
Minipeeper Ultraviolet Flame Detector, Used for Coal, Gas and Oil Fired Burners, 96 Inch Lead Length, 0/215 Degree Ambient Temperature, Mounts on 1/2 Inch Sighting Pipe Using A Integral Collar
12 in stock (can be backordered)
Overview
Compact flame detector for use with flame safeguard controls with ultraviolet amplifiers.
Features
- Use with Honeywell Flame Safeguard primary safety controls and burners requiring ultraviolet flame detection.
- C7027 mounts on a 1/2 in. sighting pipe by using an integral collar.
- Detectors can be wired in parallel for difficult sighting applications.
- C7027 seals against pressures up to 5 psi (34.5kPa) when correctly installed.
- Allows for blast tube mounting due to compact size.
- C7044 mounts with a two screw bracket.
- The C7044 UV sensor tube is enclosed in a stainless steel housing.
- C7044 has the capability of side or end viewing in flame monitoring applications.
Product Specifications
| Application | Coal fired burners; Gas fired burners; Oil fired burners |
| Dimensions (in.) | 1 1/16 in. diameter x 4 in. long |
| Used With | Flame Amplifiers: R7249A, B, R7849A, B, R7749B, R7259, R7290CommentsDetects ultraviolet radiation in flames |
| Mounting | Integral nut for 1/2 in. sighting pipe. |
| Approvals, Underwriters Laboratories Inc. | Listed: File No. MP268, Guide No. MCCZ |
| Approvals, Canadian Standards Association | Certified: Master Report LR95329-1Electrical Connections2 NEC Class 1 lead wiresVibration0.5 G max |
| Approvals, Swiss RE | Acceptable |
| Approvals, Factory Mutual | Approved: Report No. 24181.03 |
| Ambient Temperature Range (F) | 0 F to 215 F |
| Lead Length (in.) | 96 in. |
| Weight | 3 lbs |
|---|---|
| Dimensions | 6 × 4 × 4 in |
