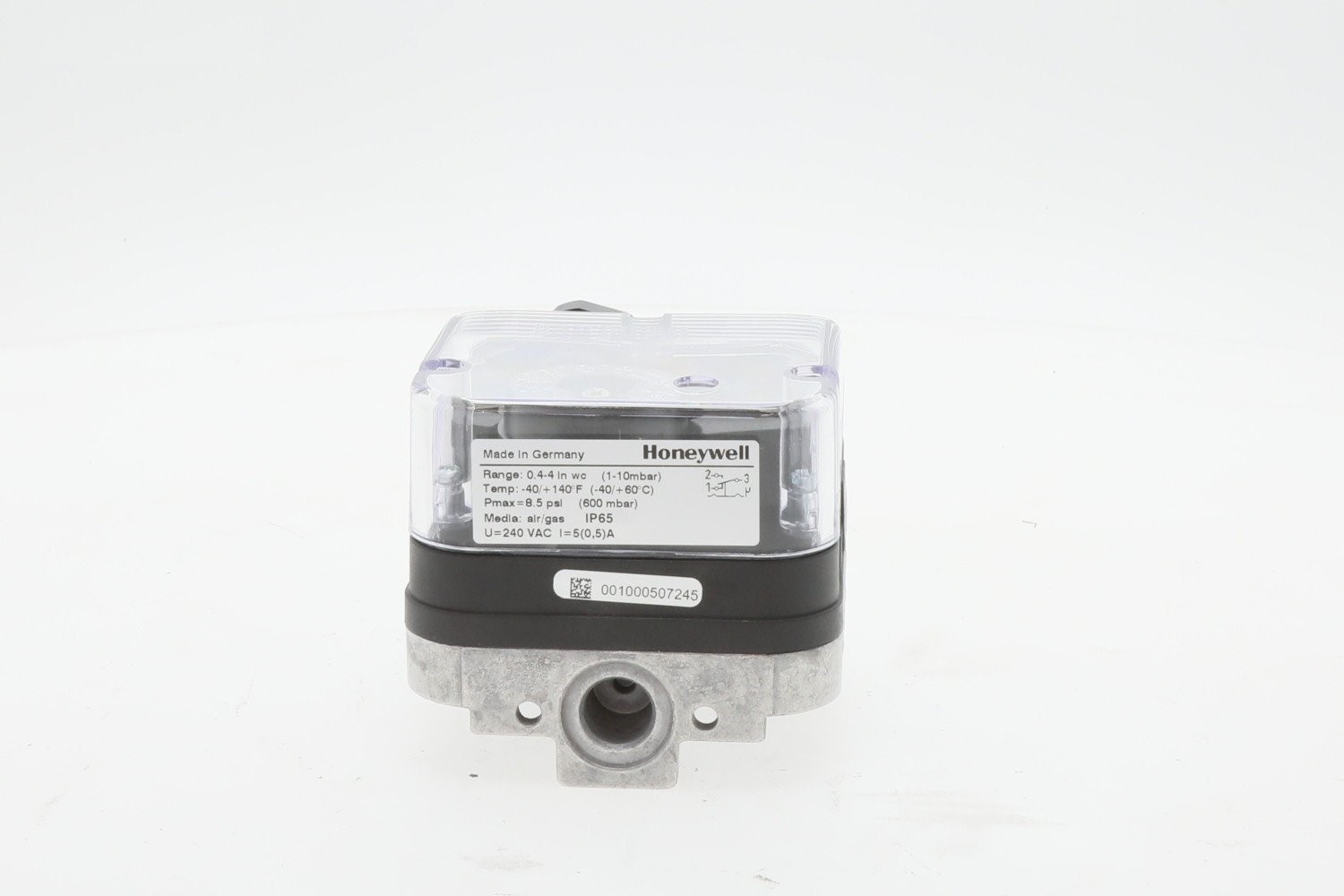

The Honeywell C6097A3004 pressure switch
Overview
The Honeywell C6097A3004 is a diaphragm-type pressure switch used to monitor gas or air pressure in combustion and ventilation systems. It is designed to sense falling pressure (break on fall), triggering a control or safety shutdown when pressure falls below a set threshold. Ideal for burner gas safety interlocks, blower pressure monitoring, or air/fan differential monitoring.
Features
-
Detects positive gas (or air) pressure with reliable diaphragm actuation
-
Break-on-fall switch logic (breaks control circuit when pressure drops below setpoint)
-
Auto-reset capability (unless configured for manual reset)
-
Setting range: 0.4 to 5.0 in. W.C.
-
¼” NPT pressure connection
-

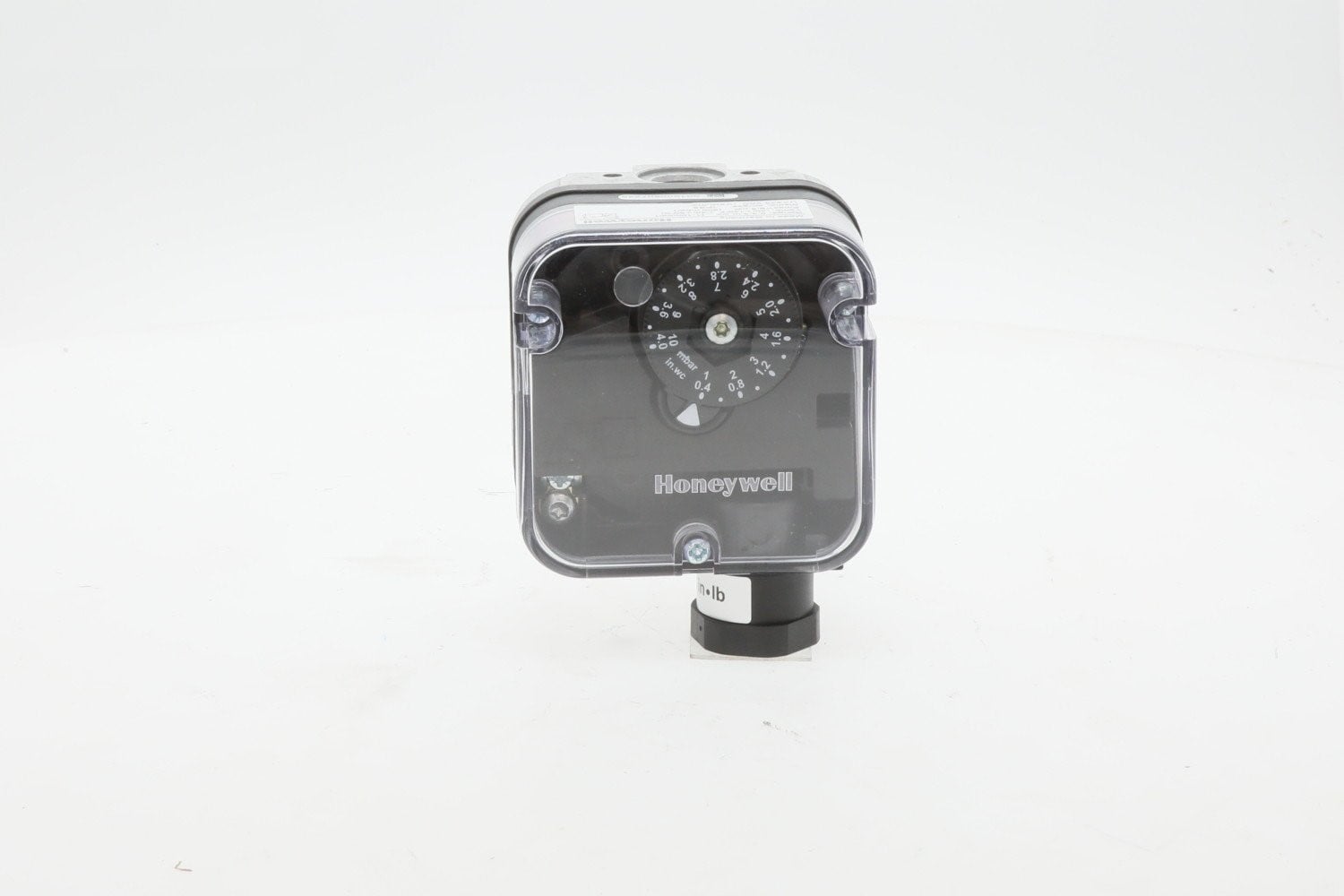

Transparent cover over adjustment dial and scale plate
-
Adjustment knob protected to prevent tampering
-
Durable housing rated for IP54 enclosure
-
Silver contacts rated for resistive and inductive loads
-
Compatible with natural gas, LPG, or air service
-
Optional vent connections and pressure taps available
Specifications
| Specification | Details |
|---|---|
| Model / Part | C6097A3004 |
| Switch Type | Break-on-fall gas/air pressure switch |
| Set Range | 0.4 – 5.0 in. W.C. |
| Connection Size | ¼” NPT |
| Electrical Rating | 24–250 VAC up to 5 A (resistive) |
| Housing / Enclosure | IP54 rated protection |
| Knob Adjustment | Protected adjustment screw / tamper-resistant cover |
| Materials | Aluminum die-cast housing, diaphragm (NBR) |
| Operating Temperature Range | –40 °F to +140 °F |
| Maximum Pressure (non-operating) | About 8.5 psi (600 mbar) |
| Switch Differential (Hysteresis) | ~0.10 to 0.16 in. W.C. |
| Weight | ~9.5 to 11.3 oz (270 to 320 g) |
| Mounting / Vent | Can include ⅛” NPT vent or differential port |

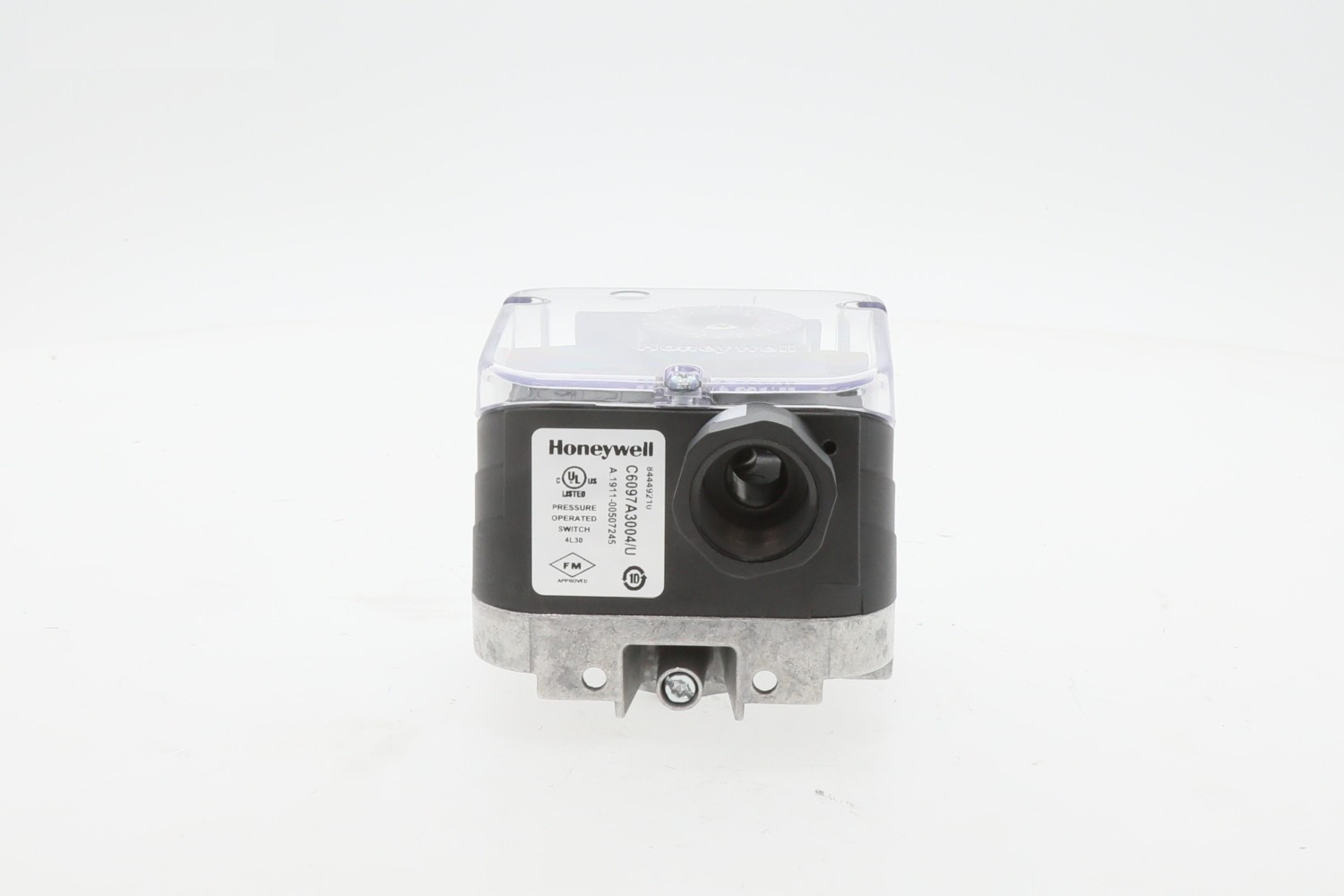

| Certification | UL, FM listed, CE / RoHS compliance |
Applications
The Honeywell C6097A3004 switch is commonly used in:
-
Gas burner safety systems (monitoring gas inlet pressure)
-
Vent or draft pressure detection in furnaces and boilers
-
Combustion air blower monitoring and interlock
-
Low-pressure differential monitoring for HVAC systems
-
Gas valve train interlock systems
It protects downstream equipment by detecting pressure drop and triggering safe shutdown.
Benefits
-
High sensitivity for low-pressure detection
-
Simple dial adjustment for setpoint tuning
-
Auto-reset (or lockout option) improves safety flexibility
-
Tamper-resistant design supports compliance
-
Robust construction suited for industrial environments
-
Universal compatibility with gas, LP, or air systems
