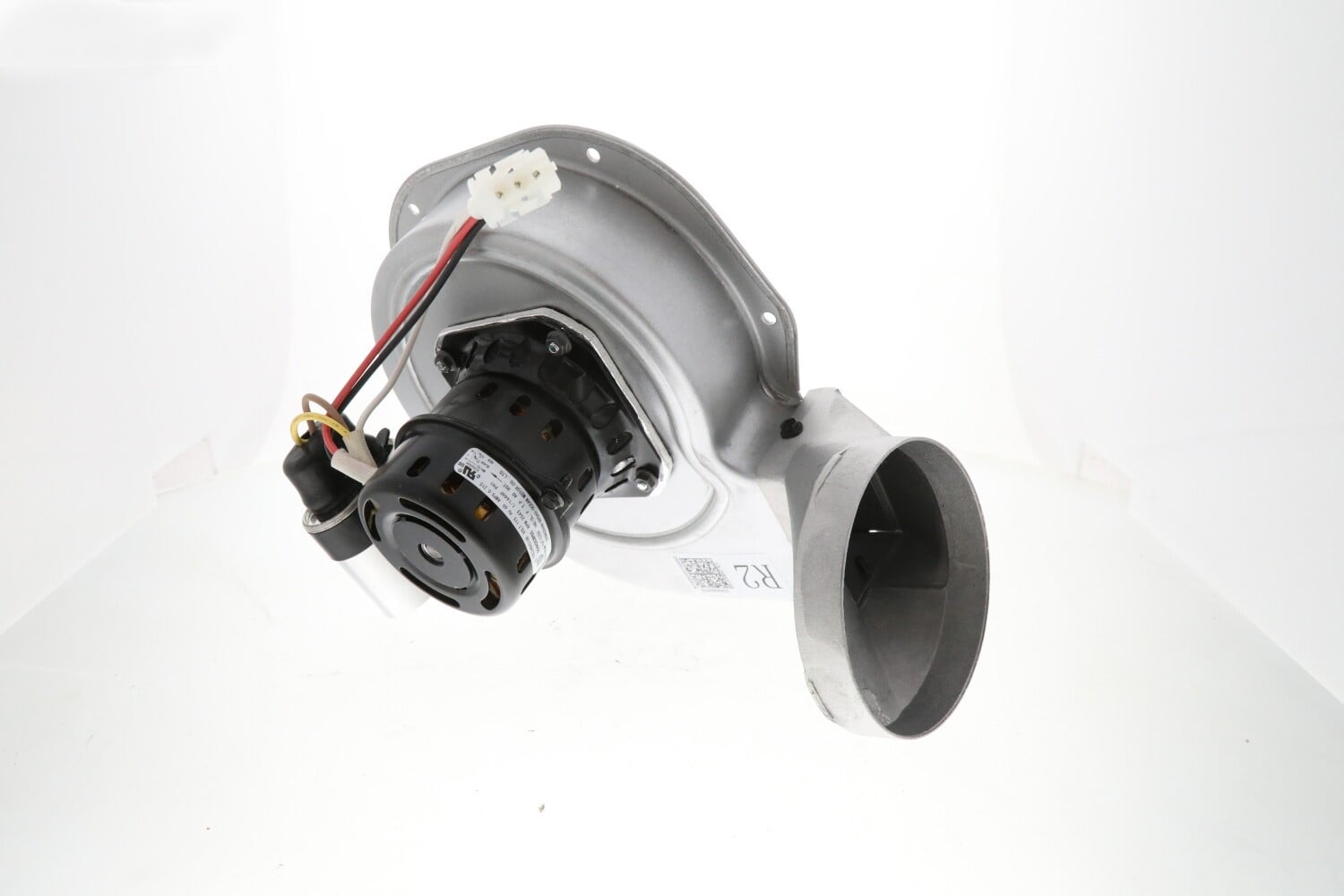

BLW1320 Trane Inducer

Overview

The Trane BLW1320 is a genuine Original Equipment Manufacturer (OEM) 2-Stage Inducer Assembly, designed primarily for use in Trane gas furnaces within Heating, Ventilation, and Air Conditioning (HVAC) systems. This component is critical for maintaining efficiency and safety by moving air through the furnace, ensuring proper ventilation and combustion during different stages of operation. It is identified as a 115V assembly and is a replacement part for Trane equipment.

Features

Key features of the Trane BLW1320 2-Stage Inducer Assembly include:

• 2-stage operation, designed for use with a 2-stage furnace.
• Helps move air through the furnace system for proper ventilation and combustion.
• Engineered to deliver a high volume and velocity of air to the burner over a wide range of operating conditions.
• Tested and validated by Trane, ensuring compatibility and reliable performance within their equipment.
• The motor component has a power rating of 0.03 hp (or 1/33 hp).
• Features an Open Air Over (OAO) or Open Dripproof enclosure type.

Specifications

• Part Number: BLW1320
• Voltage: 115V AC
• Phase: Single
• Frequency: 60 Hz
• Horsepower (HP): 0.03 hp (or 1/33 hp)
• Full Load Amperage: 0.21 amp
• Maximum/Name Plate RPM: 2543 RPM
• Enclosure Type: OAO (Open Air Over) or Open Dripproof
• Shipping Weight: Approximately 2.6 lbs or 4.340 lbs (measurements may vary by source)

Applications

The Trane BLW1320 2-Stage Inducer Assembly is used as a replacement part in Trane HVAC equipment, specifically gas furnaces. It is essential for managing airflow to provide maximum combustion efficiency and is compatible with Trane ball bearing heat exchangers. It is compatible with various Trane models including: 13TW1320-1, 13TW1320-3, 13TW1320-4, 15WU03600BA, and 15WU03600CA.
