The Johnson Controls AS-VAV111-1VAV Controller with six Binary Outputs and two Analog Outputs (Quick Connects); Variable Air Volume Controller, 32/140 Degree Operating Temperature, Analog Inputs: RTD Temperature Elements ( 1000 Ohm Nickel, Platinum or Silicon ), 2K Ohm Setpoint Potentiometers, 0-10 Vdc Transmitters, Binary Inputs: 4 Dry Contacts and 1 Momentary Push Button from Zone Sensor for Temporary Occupancy Mode, Analog Outputs: Two 0-10 Vdc @ 10 mA, Binary Outputs: 6: 24 Vac Triacs, Quick Connect I/O Terminations, Zone Bus: Spade Connectors at Controller, 8 Pin Phone Jack, 6 Pin Phone Jack, LED Indication

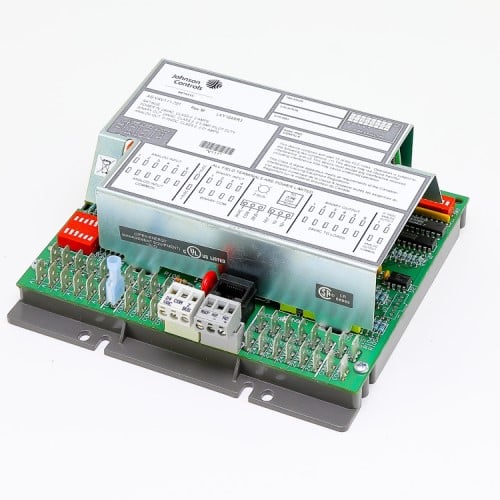

AS-VAV111-1 Johnson Controls Controller
VAV Controller
| Weight | 6 lbs |
|---|---|
| Dimensions | 9 × 11 × 4 in |
