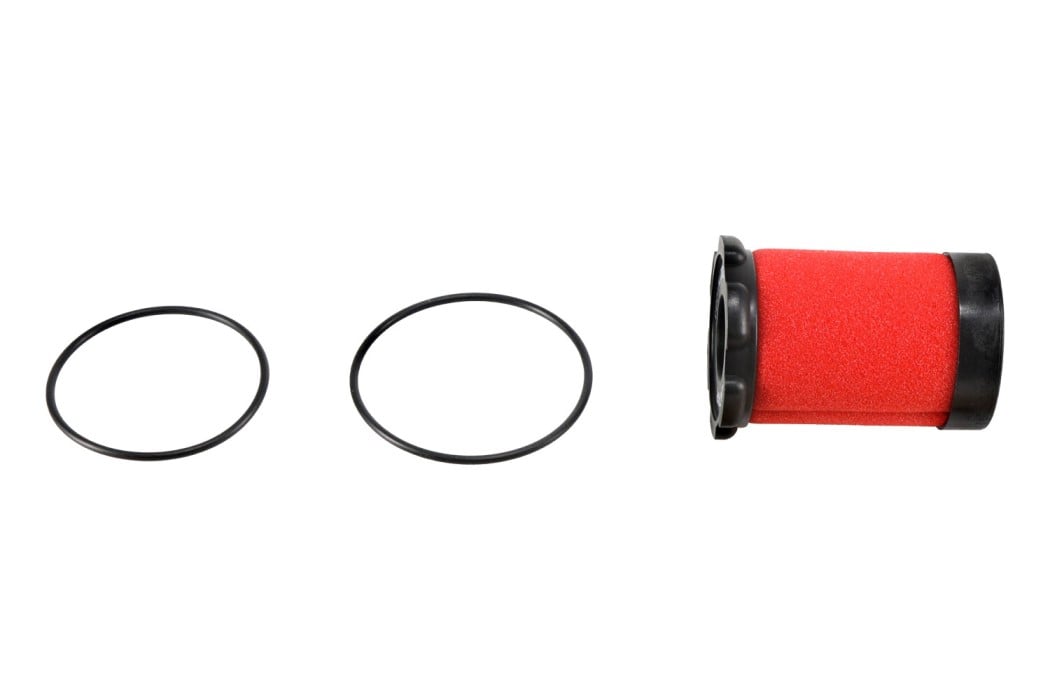

A-4000-604 Johnson Controls Filter

Overview

The Johnson Controls A-4000-604 is a coalescing pneumatic oil filter cartridge designed to remove oil aerosols and vapors from compressed air lines. It ensures clean, oil-free air delivery to protect downstream components in pneumatic control systems.

Features

• Efficiently traps oil aerosols and vapors
• Easy-to-replace cartridge design for simple maintenance
• Supports optimal system performance for up to one year

Specifications

• Flow Capacity: 20 SCFM
• Maximum Input Pressure: 150 psig
• Maximum Temperature: 125 degrees F
• Filter Type: Coalescing element

Applications

• Designed for use in A-4000 Series Oil Removal and Pressure Reducing Stations
• Used in commercial HVAC and building automation pneumatic control systems
