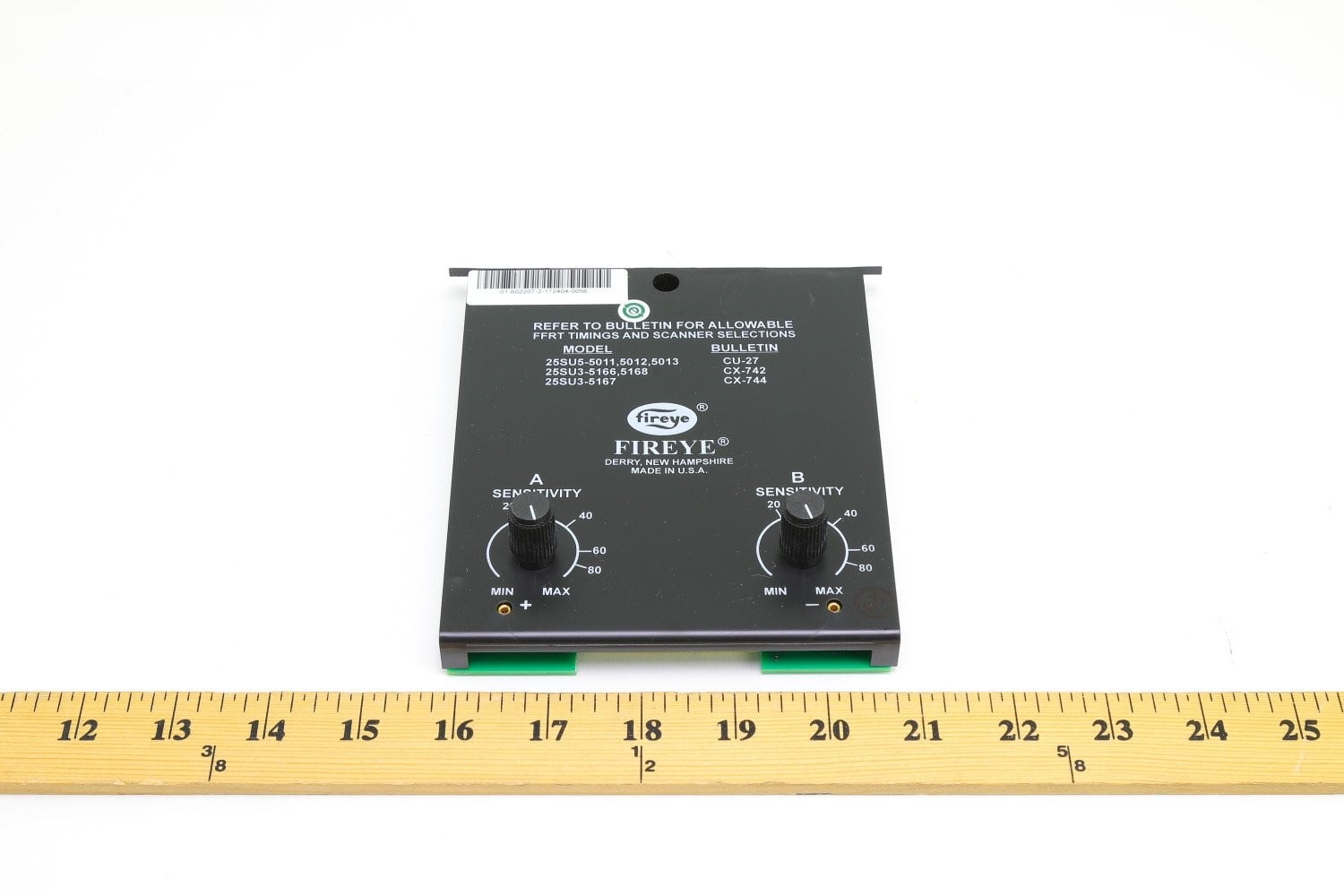

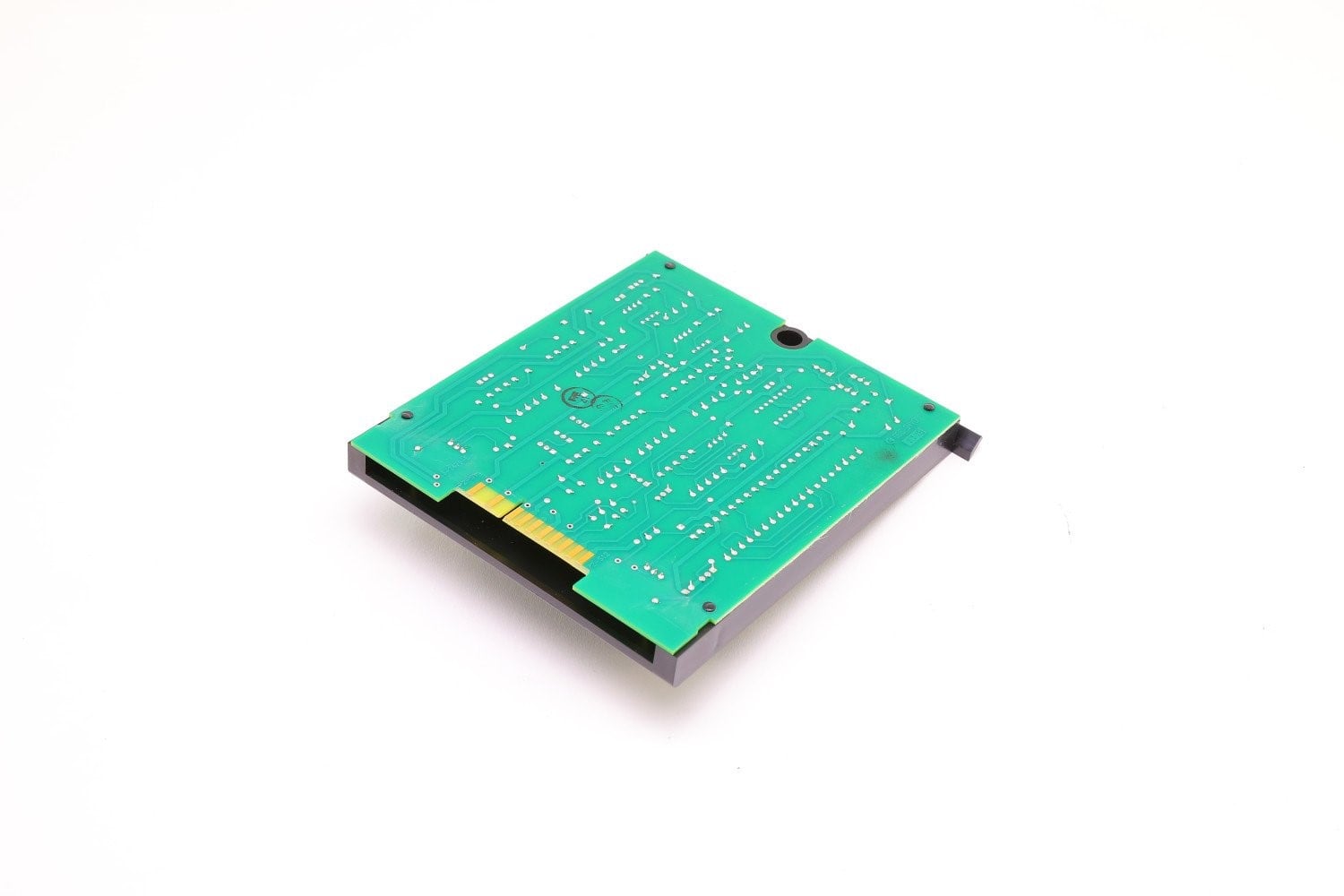

Fireye 60-2207-2 Flame Amplifier – High Discrimination Module
The Fireye 60-2207-2 Flame amplifier (High discrimination) for 5012, 5166, 5167.
The 60-2207-2 flame amplifier modules are used with the 25SU5-5011, -5012, and the 25SU3-5168, -5166 controls. The 60-2207-2 is a high discrimination amplifier for use on single or multiburner applications where background radiation is present (e.g. flame signal from adjacent flame tips, hot refractory, etc.)
Overview
The Fireye 60-2207-2 is a high-discrimination flame amplifier module designed for use in Fireye burner management systems. It helps ensure accurate flame detection in applications where background radiation or multiple burners can cause interference. Built for reliability, it provides safe and consistent flame signal amplification in demanding combustion environments.
Specifications
| Specification | Details |
|---|---|
| Brand / Model | Fireye 60-2207-2 |
| Type | Flame amplifier module |
| Function | Amplifies weak flame sensor signals |
| Application | Single or multi-burner systems |
| Sensitivity Modes | Selectable Sensitivity A / B |
| Pull-In Voltage | Approx. 0.80 V |
| Drop-Out Voltage | Approx. 0.25 V |
| Compatible Control Chassis | Fireye control systems (25SU series and others) |
| Construction | Compact plug-in module |
| Weight / Dimensions | Lightweight; approx. 6.5 × 10 × 3 in |
| Operating Temperature Range | Standard Fireye module range (ambient use) |
| Warranty | OEM Fireye part with standard manufacturer coverage |
Features & Benefits
-
High discrimination capability to avoid false flame detection
-
Selectable sensitivity modes for dual-scanner or multi-burner use
-
Reliable pull-in and drop-out voltage thresholds for consistent safety control
-
Simple modular replacement within compatible Fireye control chassis
-
Designed for industrial durability and continuous operation
Applications
-
Industrial burners requiring reliable flame detection in high-heat environments
-
Multi-burner systems where background radiation could interfere with detection
-
Retrofitting Fireye control systems with updated flame amplifier modules
-
Boiler and furnace combustion systems requiring precise flame safeguard operation
Installation & Maintenance Notes
-
Insert only into compatible Fireye control chassis with power off
-
Select correct sensitivity mode (A or B) during setup for system requirements
-
Verify pull-in and drop-out flame signals after installation to confirm safe operation
-
Keep module free from dust, moisture, and excessive vibration
-
Perform periodic inspection as part of burner system maintenance
Warranty & Quality Assurance
-
Manufactured by Fireye to meet OEM safety and performance standards
-
Backed by Fireye’s standard warranty when installed and used correctly
Related Products
-
Other Fireye flame amplifiers with alternate sensitivity ratings
-
Fireye scanner modules for compatible burner systems
-
Fireye flame safeguard controls and chassis units
-
Replacement flame amplifier kits and accessories
Apex Controls is not affiliated with Fireye or the use of the Fireye logo
