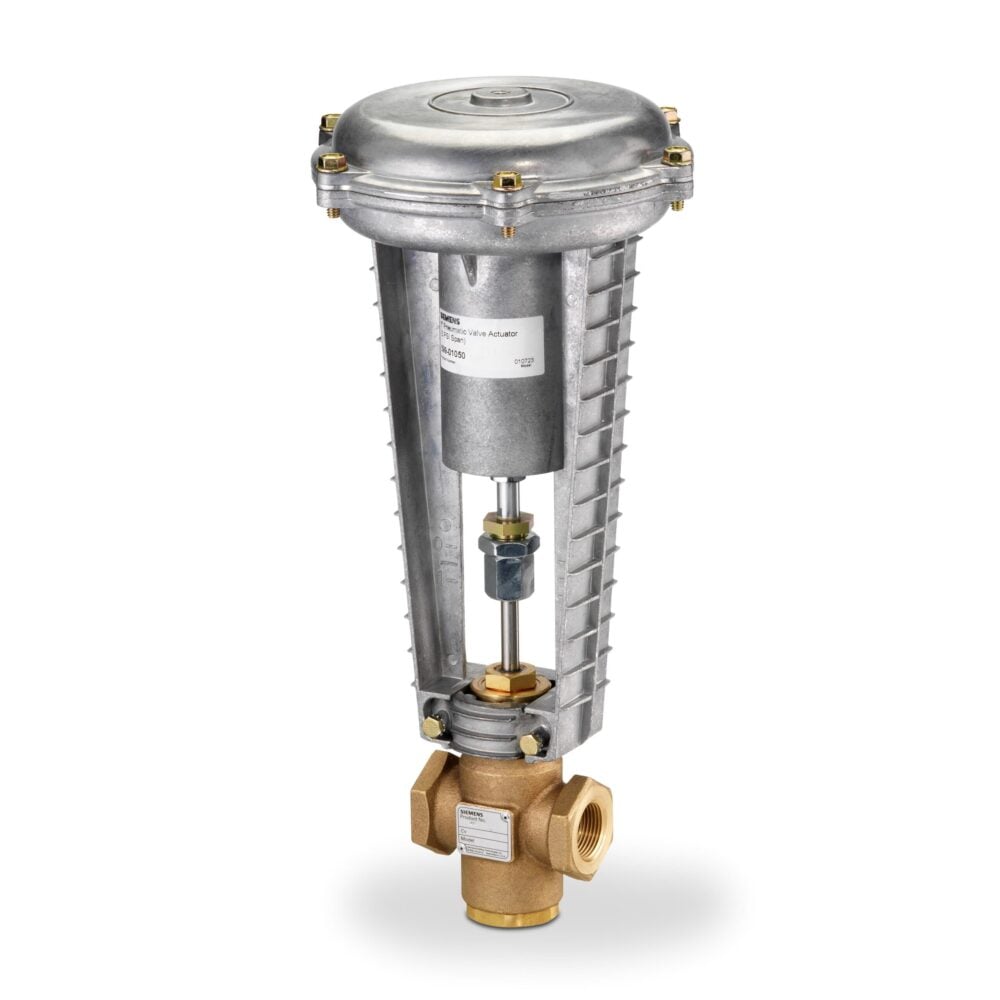

277-03127 Siemens Valve Assembly
$466.70
Valve assy 2W NC 1/2″, 1.6Cv, Eq Pct SS Trim FxF, 8″ Pneu Act
Siemens 277-03127 Valve Assembly – ½-in 2-Way NC Stainless Steel Trim, Equal-% Flow, 8-in Pneumatic Actuator
The Siemens 277-03127 2WNC SS =% OR FXF 0.50/1.60
Overview
The Siemens 277-03127 is a factory-assembled 2-way, normally closed valve and pneumatic actuator unit from the Flowrite 599 Series. Featuring stainless steel trim and equal-percentage flow characteristics, it provides reliable performance in steam, hot water, and chilled water systems. The compact ½-inch body delivers 1.6 Cv capacity and is ANSI Class 250 rated, making it ideal for demanding HVAC and hydronic applications.
Specifications
| Specification | Details |
|---|---|
| Brand / Model | Siemens 277-03127 |
| Series | Flowrite 599 Series |
| Valve Configuration | 2-Way, Normally Closed (NC) |
| Flow Characteristic | Equal Percentage |
| Valve Size | ½-inch (0.5 in) |
| Flow Coefficient (Cv) | 1.6 |
| Trim Material | Stainless Steel |
| Connections | Female × Female (FxF) internal threads |
| Pressure Rating / Body Rating | ANSI Class 250 |
| Maximum Temperature | Up to 250 °F (121 °C) |
| Actuator Type | 8-inch pneumatic actuator (factory mounted) |
| Fail-Safe Position | Normally Closed |
| Valve Pattern | Globe body |
| Common Uses | Steam, hot water, and chilled water control in HVAC and process systems |
Features & Benefits
-
Stainless steel trim for durability and corrosion resistance
-
Equal percentage flow curve for smoother modulation and control accuracy
-
Compact ½-inch body with 1.6 Cv flow for precision applications
-
Factory-assembled valve and actuator reduce installation time
-
ANSI Class 250 rating allows safe use in higher pressure and temperature systems
Applications
-
HVAC hydronic systems with steam, chilled water, or hot water
-
Process control requiring precise modulation
-
Installations needing reliable shut-off in small-bore systems
-
Replacement or retrofit in Siemens 599-Series valve installations
Installation & Maintenance Notes
-
Install in proper orientation to maintain correct flow and actuator operation
-
Use clean, dry supply air for the pneumatic actuator
-
Inspect periodically for packing wear or leakage
-
Verify actuator stroke and system pressure requirements during commissioning
Warranty & Quality Assurance
-
Siemens OEM manufactured to Flowrite 599 Series standards
-
Meets ANSI/ASME requirements for body rating, trim material, and performance
Related Products
-
Other Flowrite 599 Series valve assemblies in different sizes and Cv ratings
-
Siemens valve assemblies with electric or electronic actuators
-
Replacement actuators and trim kits compatible with 277-03127
| Weight | 12 lbs |
|---|---|
| Dimensions | 18 × 10 × 10 in |
