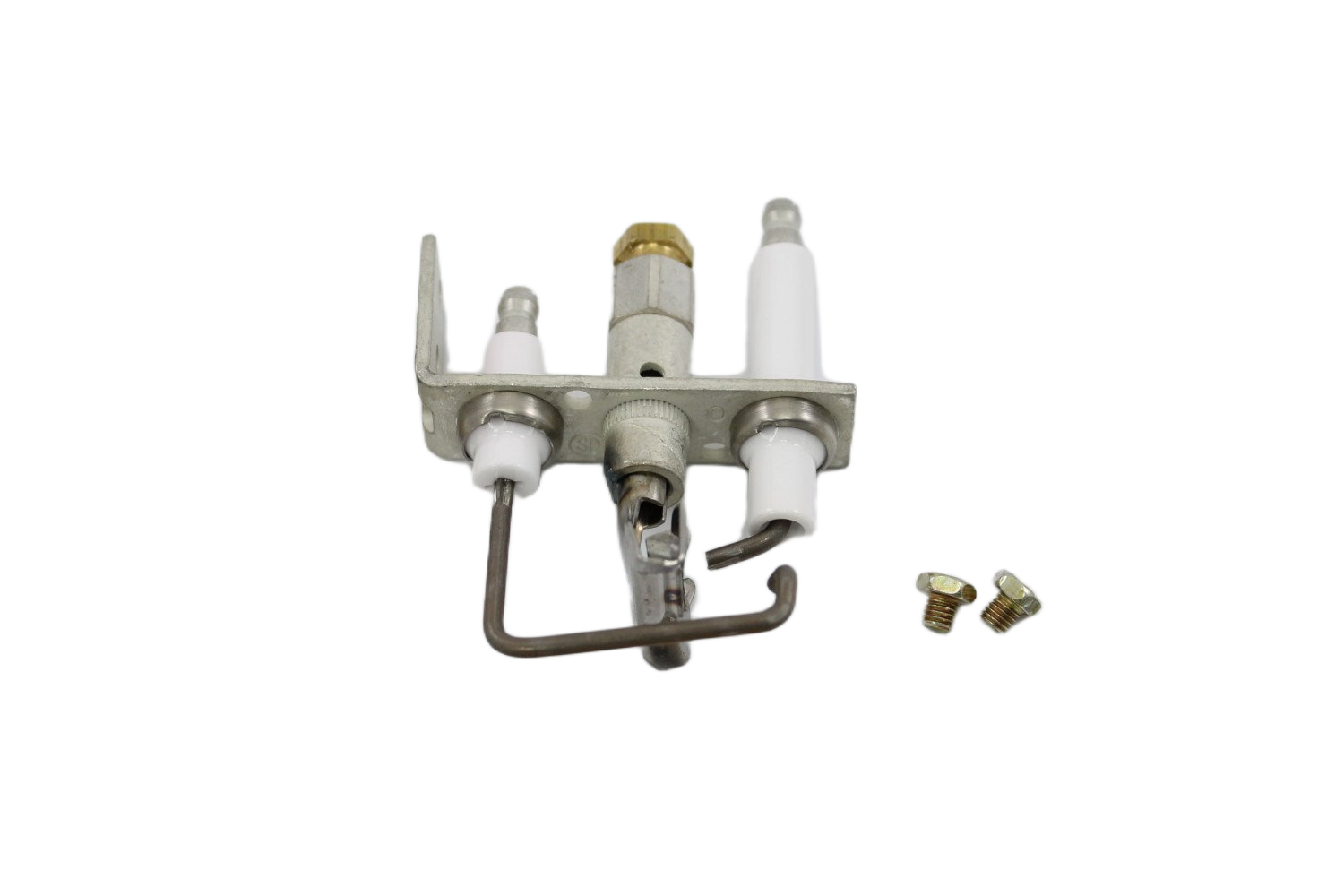

Raypak 002086F Spark Ignition Pilot Assembly – Gas Heater / Boiler Igniter

Spark Ignition Pilot Assembly

Overview

The Raypak 002086F spark ignition pilot assembly is an essential replacement part used in Raypak gas-fired heating equipment. It provides the high-voltage spark needed to ignite the pilot flame and, subsequently, the main burner. Designed for reliability and safety, this assembly ensures consistent ignition in pool heaters, boilers, and other gas appliances.

Specifications

Features & Benefits

• Produces consistent spark for safe and reliable ignition

• OEM part ensures proper fit and compatibility with Raypak systems

• Designed for durability under frequent ignition cycling

• Simple installation for maintenance and repair

Applications

• Replacement in Raypak gas heaters and pool heaters

• Boilers or water heating systems requiring spark ignition

• Systems with failing or intermittent pilot ignition

Installation & Maintenance Notes

• Replace only when system is shut off and cooled; follow safety protocols

• Ensure proper alignment and clearance in burner area

• Check electrode gap and insulator cleanliness during installation

• Inspect thermocouple and wiring connections for corrosion or wear

• Test ignition cycles after installation to verify reliable spark

Warranty & Quality Assurance

• Manufactured to match Raypak original equipment standards

• Undertakes same performance and reliability guidelines

• Warranty applies when installed per manufacturer instructions
