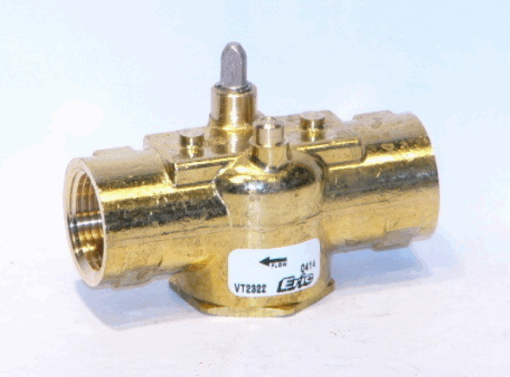

VT2322 Schneider Electric Erie Poptop Valve
$42.70
VB: 3/4 in, 2W, Zone, NPT, BR, 2.5 cv, Erie PopTop, No Steam
Valve Body (VT2322):
- Body Size: 3/4 in
- Configuration: 2-Way
- Type: Zone
- Connection: NPT
- Material Trim: Brass
- Flow Coefficient: 2.5 Cv
- Control Media: Glycol 25 to 50% and Water
- Product Line: Schneider Electric
- Product Range: Erie PopTop
- Product Series: VT2
Product Alert: Not for use with steam
Product Specifications
| Body Size | 20 mm (3/4 in) |
| By Schneider | Yes |
| California Residents | WARNING:This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Configuration | 2-Way |
| Connection Type | NPT |
| Flow Characteristic | Quick open |
| Flow Coefficient | 2.16 kvs |
| 2.50 cv | |
| Material Body | Forged brass |
| Material Paddle | Buna N |
| Material Seat Port A | Brass |
| Material Stem | Nickel-plated |
| Material Trim | Brass |
| Media Compatibility | Glycol 25% |
| Glycol 30% | |
| Glycol 50% | |
| Water | |
| Pipe Size | 3/4 in |
| Pressure Allowable Static | 400 psi |
| Pressure Class | 400 ANSI |
| Product Range | Erie PopTop |
| Product Series | VT2 |
| Seat Leakage Port A | ANSI IV (0.01%) |
| Stem Movement | Rotary |
| Temperature Range Fluid | 0 to 93 C (32 to 200 F) |
| Type | Zone |
| Weight | 1 lbs |
|---|---|
| Dimensions | 3 × 3 × 3 in |
