VOG15.011U1 Siemens Valve

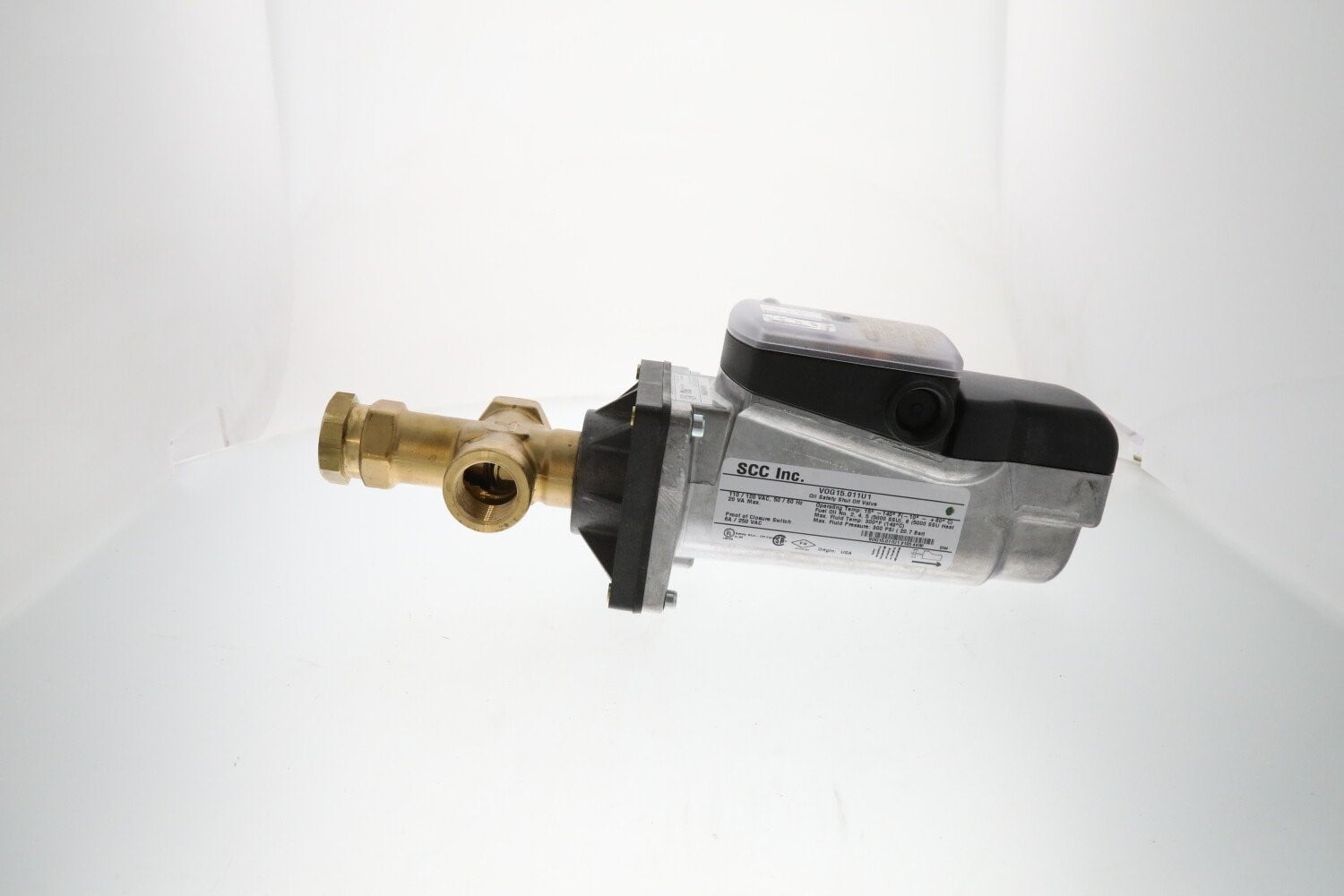

The Siemens VOG15.011U1 3/4″ 2/3-way Oil Shut Off Valve with POC Switch, with 1/2″ hardware kit

Overview

The VOG15-011U1 is a high-reliability, electro-hydraulic oil safety shut-off valve used in industrial and commercial burner systems. It can function as a 2-way shutoff or as a 3-way recirculation valve, with built-in proof-of-closure (POC) switching. The actuator is designed to close rapidly upon loss of power, making it suitable for safety interlock between the burner and fuel supply.

Specifications

Features & Benefits

• Proof-of-Closure (POC) built-in, enabling verification that the valve is fully closed

• Rapid closure (< 1 second) on loss of power ensures safety cut-off

• Dual-mode (2- or 3-way) capability—with recirculation port for heavier oils

• Visual position indicator and “power-on” status light

• Quick-connect wiring terminals and 360° actuator orientation for flexible field wiring

• Low power consumption (~20 VA) for efficient operation

• Certified for safety applications in burner systems

• Tolerant of a wide range of fuel viscosities and pressures

Applications

• Safety fuel shutoff in burner systems using oil (No. 2 to No. 6)

• Recirculation systems for heavy oils (3-way mode)

• Fuel control in commercial and industrial boiler installations

• Systems using proof-of-closure feedback for safety interlocking

Installation & Maintenance Tips

• For 2-way operation, install the ¾″ NPT plug supplied in the recirculation port

• Apply pipe sealant on threads; torque to proper spec without twisting actuator

• Wire POC and power terminals carefully; label wires before disconnecting

• Mount actuator so position indicator is visible

• Verify full closure and POC switch operation during commissioning

• If fault or leakage occurs, replace the valve assembly—internals are not serviceable

• Avoid mounting upside down; watertight rating applies only in vertical orientation

• Use flexible conduit to terminal box per installation documentation
