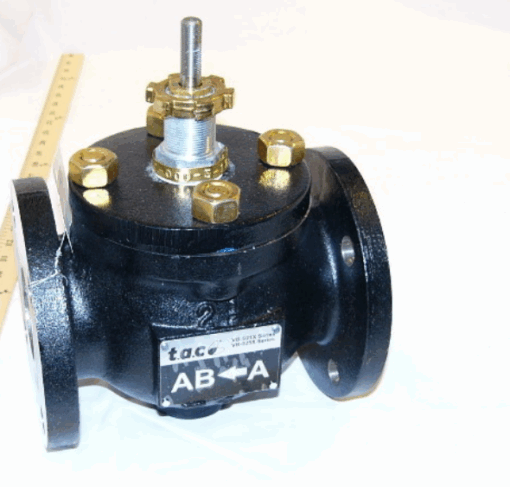

VB-9213-0-5-12 Schneider Electric Valve Body

Datasheet

Valve Body (VB-9213-0-5-12):

• Body Size: 2-1/2 in
• Configuration: 2-Way
• Type: Globe
• Connection: Flanged
• Stem Flow Action: Stem up A open
• Material Trim: Brass
• Flow Coefficient: 56 cv
• Control Media: Steam and Water
• Product Line: Schneider Electric
• Product Series: VB-9200

Product Specifications

• Body Size 65 mm (2-1/2 in)
• By Schneider Yes
• California Residents WARNING:This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Configuration 2-Way
• Connection Flanged
• Control Media Steam
• Water
• Flow Characteristic Modified equal percentage
• Flow Coefficient 43 kvs
• 00 cv
• iPortal Yes
• Is Web Item Yes
• Item Signal Code MTS
• Material Body Cast iron
• Material Packing Spring-loaded PTFE/EPDM
• Material Plug Brass
• Material Seat Port A Bronze
• Material Stem Stainless steel
• Material Trim Brass
• Part Number VB-9213-0-5-12
• Pipe Size 2-1/2 in
• Pressure Class 125 ANSI
• Product Line Schneider Electric
• Product Series VB-9200
• Seat Leakage Port A ANSI IV (0.01%)
• Stem Flow Action Stem up A open
• Stem Movement Linear
• Stroke Distance 15/16 in
• Temperature Range Fluid 4 to 138 C (40 to 281 F)
• Temperature Range Saturated Steam 4 to 138 C (40 to 281 F)
• Type Globe
• Web Group B01
