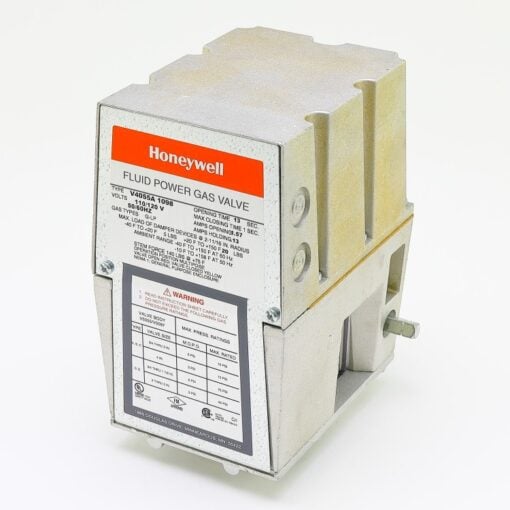

V4055A1098 Honeywell INDUSTRIAL Fluid Power Actuator
$975.00
Combustion valve actuator; Actuator, On-Off Fluid Power Gas Valve Actuator, 120Vac, 13 Second Opening Timing, 1 Second or Less Closing Timing, Damper Shaft, 5 Psi Maximum Operating Pressure, -40-150 Degree Temperature Range, Used with V5055/V5097A,B Series Valve Bodies
2 in stock
The Honeywell V4055A1098 Combustion valve actuator 120/60; 13 SEC OPNG TIME ; W/Damper Shaft.
The Honeywell V4055A1098 is a heavy-duty ON-OFF fluid-power actuator designed for precise and reliable shutoff in industrial and commercial burner systems. When paired with Honeywell V5055 or V5097 gas valve bodies, this actuator provides dependable control of gas flow, smooth burner light-off, and fast, safe shutdown. With a low-pressure 5 psi rating, a fast 13-second opening time, and a maximum one-second closing time, this actuator is ideal for boilers, burners, and process heating systems requiring high safety performance.
Features
• OEM Honeywell V4055A1098 actuator
• For use with V5055 and V5097 valve bodies
• ON/OFF actuation for safety shutoff applications
• Approx. 13-second opening time at 60 Hz
• Maximum closing time of 1 second
• Low-pressure model rated up to 5 psi
• 120V AC operation
• High-visibility position indicators: red (open), yellow (closed)
• Rugged industrial design for long-term reliability
• Suitable for burner, boiler, and process gas applications
Benefits
• Provides dependable control over gas flow
• Fast closing time ensures safety shut-off compliance
• Smooth opening supports stable burner ignition
• Long service life reduces maintenance and downtime
• Ideal for commercial boiler rooms, HVAC systems, and industrial burners
• Designed for technicians, contractors, and facility maintenance teams
Technical Specifications
| Maximum Safe Operating Pressure (psi) | 5 psi |
| Maximum Safe Operating Pressure (kPa) | 34 kPa |
| Temperature Range (F) | -10 F to +158 F |
| Temperature Range (C) | -23 C to +70 C |
| Includes | Damper Shaft |
| Used With | V5055;V5097 Gas Valves |
| Electrical Ratings | 120 Vac |
| Frequency | 60 Hz |
| Approvals, Underwriters Laboratories Inc. | When used with V5055A-E (3/4 to 4 in.) or V5097A-E (3/4 to 3 in.): Listed, File No. MH1639 Guide No. YIOZ |
| Approvals, Canadian Standards Association | When used with V5055 and V5097: Certified General listed File No. 158158, Class 3371 for USA and Canada |
| Approvals, Swiss RE | When used with V5055 or V5097: Acceptable |
| Approvals, Factory Mutual | When used with the V5055A,B or V5097A,B: Approved, Report Nos. 20698, 20835, 21172, and 24061 |
| Timing | Opening– 13 sec; Closing– < 1 sec |
| Internal Auxiliary Switch | No |
Applications
• Industrial and commercial burners
• Boiler safety shutoff systems
• Low-pressure gas valve control
• Process heating systems
• HVAC burner management
Always verify voltage, pressure rating, actuator style, and valve body compatibility before ordering.
Installation Notes
• Installation should be performed by a qualified technician
• Disconnect power and gas supply before servicing
• Verify mounting orientation and valve body alignment
• Check wiring according to Honeywell specifications
• Cycle actuator after installation to confirm correct movement
Why Buy from APEX Controls
• Trusted Honeywell distributor since 1990
• Fast shipping from our Pennsylvania warehouse
• 100% genuine OEM Honeywell actuators
• Technical support available for product selection
• Ideal for contractors, facilities, and industrial environments
| Weight | 16 lbs |
|---|---|
| Dimensions | 13 × 11 × 11 in |
