US4051 TCS Basys Thermostat

Datasheet

Installation Guide

Quick Setup

Configuration Guide

Description

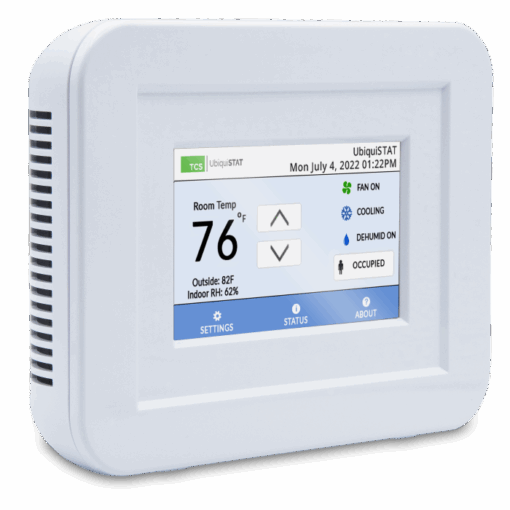

The UbiquiSTAT is a feature-rich, multi-purpose touchscreen thermostat for a wide variety of applications. This series of thermostats can be configured for a variety of conventional, heat pump, and modulating control applications.

Features:

• Powerful touchscreen user interface
  • Internal BACnet explorer
  • Quick-start wizard
  • System test screen for rapid commissioning
  • Highly detailed status reporting and diagnostics
  • Service status indication with custom messaging
  • Calibration of temperature inputs
  • 4.3” color touchscreen
• Selectable BACnet or TCSbus communication
  • BACnet BTL Listed (B-ASC)
  • Backward compatible with existing TCSbus networks (requires QD/QWL series software update)
  • All inputs/outputs fully commandable via network
• Full-featured BACnet scheduling (SCHED-I-B)
  • 5 Heat/Cool setpoint groups
• Includes all TCS SZ Series thermostat features
  • Includes many additional features and enhancements
• 4 temperature inputs (1 built-in, 3 remote)
  • Outdoor, discharge, remote room
• Configurable weighted averaging of built-in and remote room,
• Conventional or heat pump control,
• Discharge setpoint reset on modulating heat/cool control,
• Configurable Smart Recovery™,
• Configurable P+I relay stage anticipator,
• Setpoint setback based on DI,
• Network upgradeable firmware,
• Built-in equipment protection delays and sequencing
• Programmable fan control
  • Auto/on/cool/recirculation modes for occupied and unoccupied
  • Adjustable recirculation
  • Fan proving with automatic retries
• User management controls
  • Occupancy override enable/disable
  • Setpoint adjust range limit
  • Optional access code locks out on-screen programming
• Outdoor air heating and cooling lockouts,
• Discharge air protection limits,
• Fahrenheit or Celsius temperature display,
• External time clock input/output,
• Adjustable delay on power up and occupancy,
• Stand-alone or network operation,
• Backup & Restore of all settings (DM-BR-B)
