US4010 TCS Basys Thermostat

Datasheet

Installation Guide

Quick Setup

Configuration Guide

Description

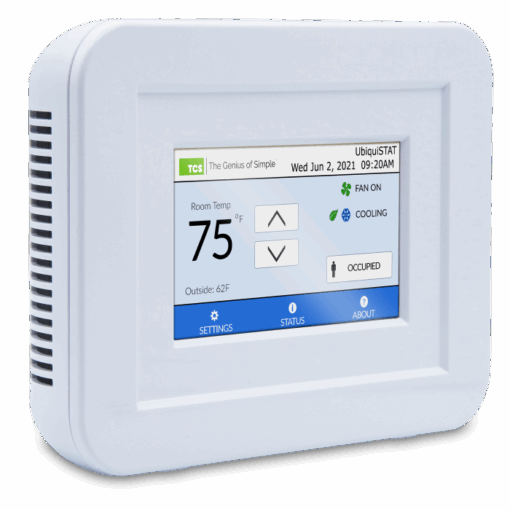

The UbiquiSTAT is a feature rich, multi-purpose touchscreen thermostat for a wide variety of applications. This series of thermostats can be configured for a variety of conventional, heat pump, and modulating control applications.

Features:

Powerful touchscreen user interface

• Internal BACnet explorer
• Quick start wizard
• System test screen for rapid commissioning
• Highly detailed status reporting and diagnostics
• Service status indication with custom messaging
• Calibration of temperature inputs
• 3” color touchscreen

Selectable BACnet or TCSbus communication

• BACnet BTL Listed (B-ASC)
• Backward compatible with existing TCSbus networks
• All inputs/outputs fully commandable via network

Full-featured BACnet scheduling (SCHED-I-B)

• 5 Heat/Cool setpoint groups

Includes all TCS SZ Series thermostat features

• Includes many additional features and enhancements

4 temperature inputs (1 built-in, 3 remote)

• Outdoor, discharge, remote room
• Configurable weighted averaging of built-in and remote room

Conventional or heat pump control

Discharge setpoint reset on modulating heat/cool control

Configurable Smart Recovery™

Configurable P+I relay stage anticipator

Setpoint setback based on DI

Network upgradeable firmware

Built-in equipment protection delays and sequencing

Programmable fan control

• Auto/on/cool/recirculation modes for occupied and unoccupied
• Adjustable recirculation
• Fan proving with automatic retries

User management controls

• Occupancy override enable/disable
• Setpoint adjust range limit
• Optional access code locks out on-screen programming

Outdoor air heating and cooling lockouts

Discharge air protection limits

Fahrenheit or Celsius temperature display

External time clock input/output

Adjustable delay on power up and occupancy

Stand-alone or network operation

Backup & Restore of all settings (DM-BR-B)

See submittal data sheet for model specific features…
