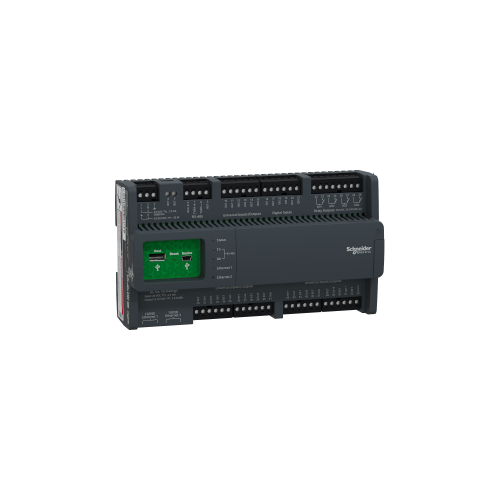

SXWRSB24H10001 Schneider Electric BACnet Controller

Ready-server, SpaceLogic, RS-B-24-H, BACnet enabled near-BMS solution for Small and Mid-Size buildings

SKU: SXWRSB24H10001 Category: Thermostats Brand: Schneider Electric

SpaceLogic Ready-Server RS-B 24 Hand

Ready-Server offers a near-BMS Solution for Small and Mid-size buildings, enabling aggregation of information, understanding trends and setting up alarms and schedules through a single user interface

Product Specifications

[Us] rated supply voltage	19…29 V AC
	21…33 V DC
Ambient Air Temperature For Operation	32…122 °F (0…50 °C)
Analogue Input Type	Configurable voltage, current or probe 0…10 V input voltage
	Configurable voltage, current or probe 0…20 mA
	Configurable voltage, current or probe 1 kOhm connection of probes
	Configurable voltage, current or probe 1.8 kOhm connection of probes
	Configurable voltage, current or probe 10 kOhm connection of probes
	Configurable voltage, current or probe 10 kOhm with shunt
	Configurable voltage, current or probe 2.2 kOhm connection of probes
	Configurable voltage, current or probe 20 kOhm connection of probes
Brand	Schneider Electric
By Schneider	Yes
California proposition 65	WARNING: This product can expose you to chemicals including: Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Carbon footprint (kg CO2 eq, Total Life cycle)	188
Clock Drift	+/- 52 s/month
Communication Port Protocol	BACnet
	RJ45
Communication Service	SMTP e-mail notification
	SMTPS e-mail notification
	SNMP network management
Depth	2.5 in (64 mm)
Device Short Name	RS-B-24-H
Display Colour	Monochrome
Display Resolution	128 x 64 pixels
Display Type	FSTN transflective LCD
Electrical Connection	plug-in sub-base
	terminal with a manual overide switch
Final Result for Connectable	Connectable ready
Final Result for Flywheel performance tracking	Edge control
Flame Retardance	UL94V0-5VB
Global Keywords	BACnet
	Controller system
	Ready-server
	RS-B-24-H
	SpaceLogic
Halogen content performance	Halogen free plastic parts & cables product
Height	4.5 in (114 mm)
Indivisible Sale Qty	1
Input/Output Type	digital input
Integrated Connection Type	Ethernet RJ45
	Serial link RS485
	USB 2.0 type A
	USB type mini B
IP Degree of Protection	IP20
Manufacturer	Schneider Electric
Material	ABS/PC
Maximum Power Consumption In Va	15 VA
Maximum Power Consumption In W	10 W
Memory Type	2 GB flash
	256 MB FRAM
Mounting Support	DIN rail
Net Weight	11.11 lb(US) (5.04 kg)
Network Frequency	50 Hz
	60 Hz
Number Of Inputs	16 analog
	4 discrete
Number Of Outputs	4 relay
Number Of Port	2 Ethernet
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Processor Name	Spear 320s
Product Certifications	BTL
	CE
	CULus
	FCC part 15 class B
	ICES-003
	RCM
Product Or Component Type	Controller system
PVC free	Yes
Range	SpaceLogic
Realtime Clock	With
Relative Humidity	0…95 % non-condensing
SCIP Number	03661e90-9417-43f6-86cd-3316a623f51a
Standards	FCC CFR 47 part 15
	UL 916
Supply	Power supply 24 V, <0.5 A
Switching Frequency	25 Hz
Take-back	No
Temperature Probe Type	LG-Ni 1000 – 50…150 °C
	Ni 1000 – 50…150 °C
	Pt 1000 – 50…150 °C
Temperature Shipping and Storage Range	-4…158 °F (-20…70 °C)
Web Services	HTTP server
	TLS 1.0
Width	7.8 in (198 mm)

Documents

Declaration of conformity	CE-DOC-000096-00 SpaceLogic Ready-Server_Declaration of conformity.pdf
Environmental declaration	ENVEOLI1605018EN_Circularity Profile.pdf
	ENVPEP1605018EN_Environmental Disclosure.pdf
General instructions	02-40066-01-en_Instruction sheet.pdf
Specification sheet	03-10095-02-en_Specification sheet.pdf
User Guide	04-10051-01-en_System user guide.pdf
	04-10053-01-en_System user guide.pdf
	998-22505856-1_SE8650-Ready-Server-Application-Guide_EN_CP20230201_System user guide.pdf
