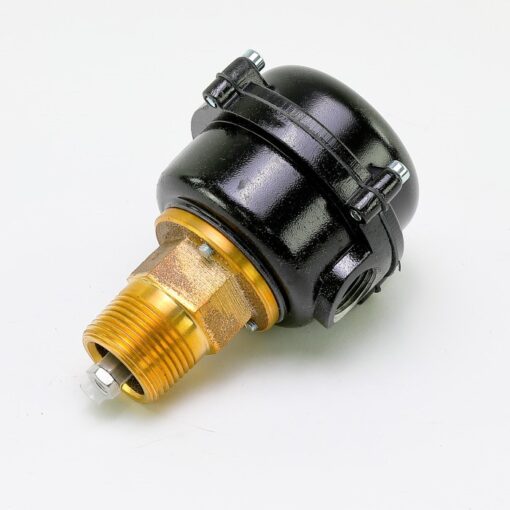

RS1BR1 McDonnell Miller REMOTE Sensor
$303.50
RS1BR1 McDonnell Miller one level high pressure remote sensor (RS-1-BR-1) (Part Number 179524)
The McDonnell Miller RS1BR1 sensor (RS-1-BR-1 )
PRODUCT FEATURES
Series-RS-X-BR-1:
- NEMA 4X Enclosure
- For sophisticated multi-level control in tanks, boilers and hydronic systems
- Remote sensors, which thread into the top of the boiler or tank, are available with 1, 2, 3, 4 or 5 probes of varying lengths that can easily be cut to desired set points
- Probe lengths 12 – 72″ (2.5 – 183cm) in 12″ (2.5cm) increments (purchased separately)
- Control, remote sensor and probe(s) must be ordered separately. Order Spacer S-4 when 2 or more probes greater than 36″ (914mm) will be used
- No blow down required
- Maximum Temperature 406°F (208°C)
- Maximum Pressure 250 psig (17.6 kg/cm)
| Weight | 4 lbs |
|---|---|
| Dimensions | 11 × 5 × 5 in |
