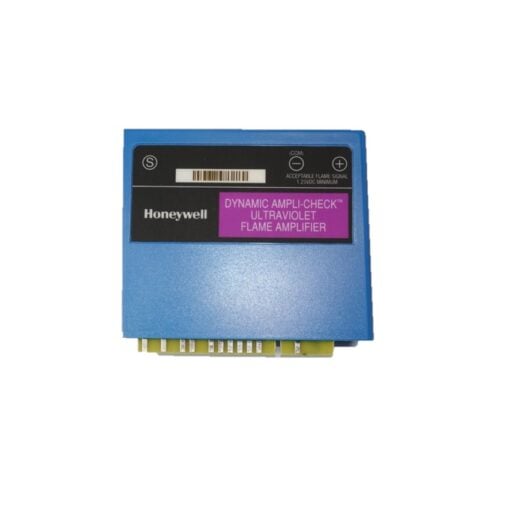

R7849B1013 Honeywell Flame Amplifier
$470.00
The Honeywell R7849B1013 0.8 OR 1 SEC Flame FAILURE RESPONSE TIME. Flame Signal Amplifier, 0.8 Second or 1 Second Flame Failure Response Time, Ampli-Check, Gas,Oil : Minipeeper Flame Sensor C7027A, C7035A, C7044, Use with 7800 Series Primary Safety Control, Color: Purple, Flame Signal Strength Ranges from 0.0-5 Vdc
6 in stock
The Honeywell R7849B1013 0.8 OR 1 SEC Flame FAILURE RESPONSE TIME.
Honeywell R7849B1013 Flame Amplifier – Ultraviolet Ampli-Check Module (0.8 / 1.0-Second FFRT)
Product Overview
The Honeywell R7849B1013 Flame Amplifier is an ultraviolet (UV) Ampli-Check amplifier module designed for use with Honeywell 7800 Series relay modules. It delivers fast and reliable flame detection with selectable flame failure response times (FFRT) of 0.8 or 1.0 seconds. This UV flame amplifier provides a 0-5 Vdc flame signal output, works with UV sensors such as C7027A, C7035A, C7044 (commonly used “Mini-Peeper” sensors), and includes built-in flame signal test jacks. The module is color-coded purple for UV detection type and features a keyed plug-in PCB edge connector for proper installation and secure fit in burner safety systems.
Key Features
Selectable FFRT: Choose between 0.8 second or 1.0 second flame failure response time for quicker safety shutdown.
Ultraviolet detection type: Designed for UV flame sensors including C7027A, C7035A, C7044.
Flame signal output: 0-5 Vdc output with flame signal test jacks for monitoring flame strength.
Ampli-Check self-checking: Diagnostic functionality monitors amplifier and UV detector components for faults.
Relay compatibility: Plug-in keyed design works with Honeywell 7800 Series relay modules.
Color coding: Purple label clearly identifies this as an ultraviolet flame amplifier.
Technical Specifications
| Specification | Detail |
|---|---|
| Model Number | Honeywell R7849B1013 Flame Amplifier |
| Flame Failure Response Time (FFRT) | 0.8 or 1.0 seconds |
| Flame Signal Voltage Output | 0.0 – 5.0 Vdc |
| Detection Type | Ultraviolet (UV) with Ampli-Check diagnostics |
| Compatible UV Sensors | C7027A, C7035A, C7044 (Mini-Peeper series) |
| Relay Module Compatibility | Honeywell 7800 Series relay modules |
| Flame Signal Test Jacks | Yes – to verify flame signal voltage |
| Label / Color | Purple (UV detection type) |
| Operating Temperature | −40°F to +140°F (−40°C to +60°C) |
| Storage Temperature | −40°F to +150°F (−40°C to +65°C) |
| Humidity Rating | Up to ~85% RH, non-condensing |
Applications
Commercial and industrial burner safety control systems using UV flame detection.
Use with ultraviolet sensors like C7027A, C7035A, C7044 in flame safeguarding systems.
Replacement or upgrade amplifiers for Honeywell 7800 Series relay modules.
Situations requiring fast flame failure protection with 0.8 / 1.0 second FFRT.
Applications where verification of flame signal (0-5 Vdc) via test jacks is required.
Benefits
Enhanced safety with fast flame failure response times.
Accurate flame signal monitoring through 0-5 Vdc output and built-in test jacks.
Diagnostic assurance thanks to Ampli-Check self-checking.
Simplified maintenance with purple color-coding for UV amplifier identification.
Plug-in keyed connector design for easier installation and reduced error.
| Weight | 4 lbs |
|---|---|
| Dimensions | 4 × 6 × 2 in |
