R7849A1023 Honeywell Flame Amplifier
$300.00
Honeywell R7849A1023 Flame Signal Amplifier, 2 Second or 3 Second Flame Failure Response Time, No Self Check, Gas,Oil: Minipeeper Flame Sensor C7027A, C7035, C7044, Use with 7800 Series Primary Safety Control, Color: Purple, Flame Signal Strength Ranges from 0.0-5 Vdc
6 in stock

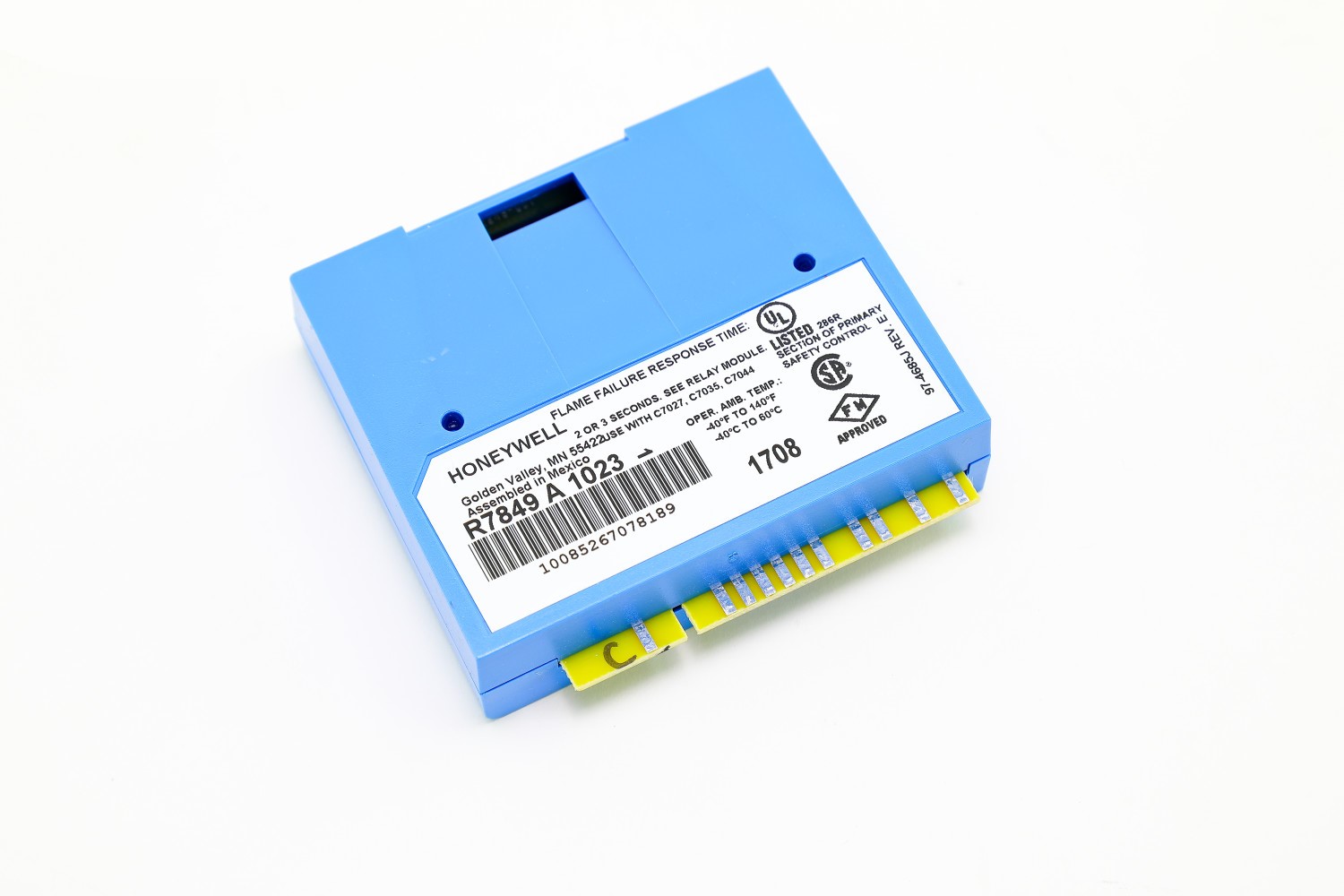

R7849A1023 Honeywell Flame Amplifier 2 OR 3 SEC Flame FAILURE RESPONSE TIME.
Honeywell R7849A1023 Flame Amplifier – Ultraviolet UV Module (0.8 / 3.0-Second FFRT)
Product Overview

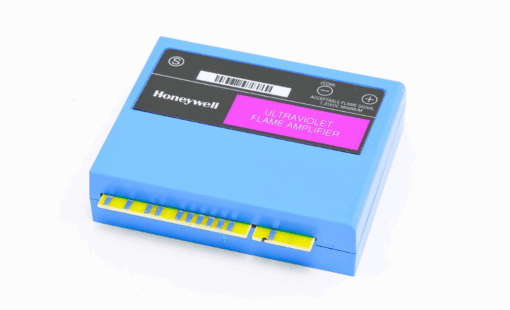

The Honeywell R7849A1023 Flame Amplifier is a UV flame amplifier module designed for use with Honeywell 7800 Series relay modules. This ultraviolet flame amplifier offers fast flame detection with selectable flame failure response times (FFRT) of 0.8 or 3.0 seconds. It delivers a 0-5 Vdc flame signal output, works with Mini-Peeper sensors (UV detectors) such as C7027, C7035, or C7044, and includes flame signal test jacks for flame strength verification. The R7849A1023 is color-coded purple to identify UV detection type, and features a keyed plug-in PCB edge connector for proper alignment.
Key Features
Selectable FFRT: 0.8 second or 3.0 second flame failure response time for burner safety control.
UV flame detection compatibility: designed for use with ultraviolet sensors like C7027, C7035, C7044.
Flame signal monitoring: 0.0-5.0 Vdc flame signal output with built-in test jacks for verification.
Plug-in keyed edge connector: ensures secure, accurate installation into 7800 Series relay modules.
Color coding: Purple label denotes UV flame amplifier detection type.
Solid-state design: durable and reliable amplifier performance for combustion safety.
Technical Specifications
| Specification | Detail |
|---|---|
| Model Number | Honeywell R7849A1023 Flame Amplifier |
| Flame Failure Response Time (FFRT) | 0.8 or 3.0 seconds |
| Flame Signal Voltage Output | 0.0 – 5.0 Vdc |
| Detection Type | Ultraviolet (UV) flame amplifier |
| Compatible UV Sensors | C7027, C7035, C7044 Mini-Peeper UV detectors |
| Relay Module Compatibility | Honeywell 7800 Series relay modules |
| Flame Signal Test Jacks | Yes – for flame signal measurement |
| Label / Color | Purple (UV detection type) |
| Ambient Operating Temperature | −40°F to +140°F (−40°C to +60°C) |
| Storage Temperature | −40°F to +150°F (−40°C to +65°C) |
| Humidity Rating | Up to ~85% RH, non-condensing |
Applications
Industrial and commercial burner safety systems using ultraviolet flame detection.
Use with UV flame sensors (C7027, C7035, C7044) in flame safeguard circuits.
Replacing or maintaining amplifiers in Honeywell 7800 Series relay modules.
Systems requiring fast detection with flame amplifier FFRT 0.8 second or 3.0 second settings.
Situations where flame signal verification (0-5 Vdc) is needed through test jacks.
Benefits
Rapid flame failure detection enhances burner safety.
Accurate flame signal monitoring via 0-5 Vdc output and test jacks.
Easy installation with keyed plug-in design.
Clear UV detection type identification with purple labeling.
Compatible with widely used Mini-Peeper UV sensors.
| Weight | 2 lbs |
|---|---|
| Dimensions | 6 × 4 × 2 in |
