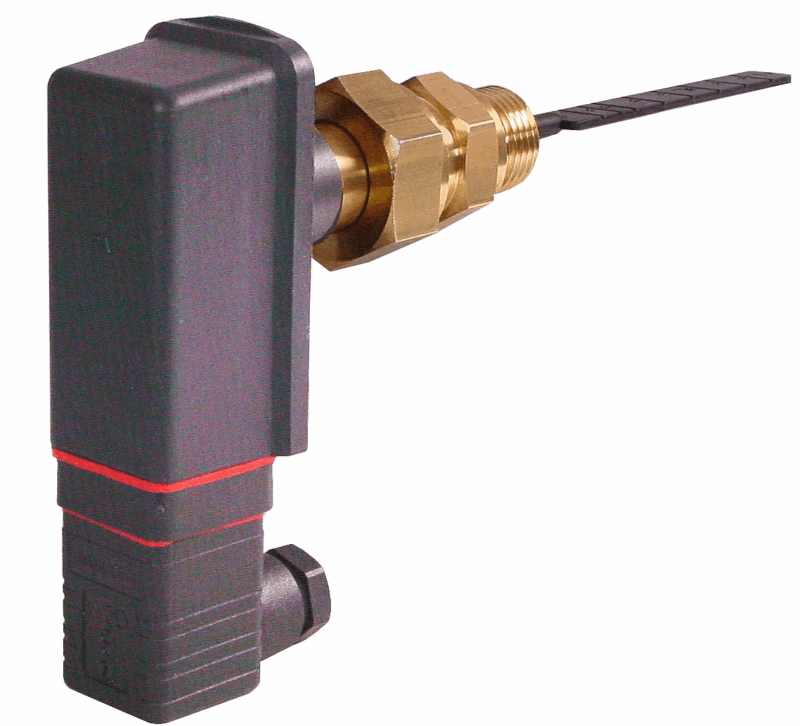

QVE1901U Siemens Flow Switch

Tech Sheet

Flow Switch, SPST, 1A, 3/4″ To 8″ Pipe Diameters

Flow switches are used to monitor the flow of fluids in hydraulic systems, especially in refrigeration and heat pumps, and are for use with condensers, boilers, and heat exchangers. Detects the flow of the medium to be monitored by means of a paddle. If the flow velocity in the piping falls below the adjusted switch-off value, a switch with a dry contact (S.P.D.T.), closes the contact. When the flow velocity reaches the switch-on value again, the opposite contact closes. Switching is achieved through a system of two opposite magnets and a reed contact
