MS41-7153 Invensys Actuator
$357.70
Invensys MS41-7153 Proportional Actuator, SR, 24V, 133 lb-in; SmartX, Damper Actuator, proportional 2-10 Vdc, spring return, 24 Vac/Vdc, 3 ft appliance cable, 133 lb-in, NEMA 1 or 2

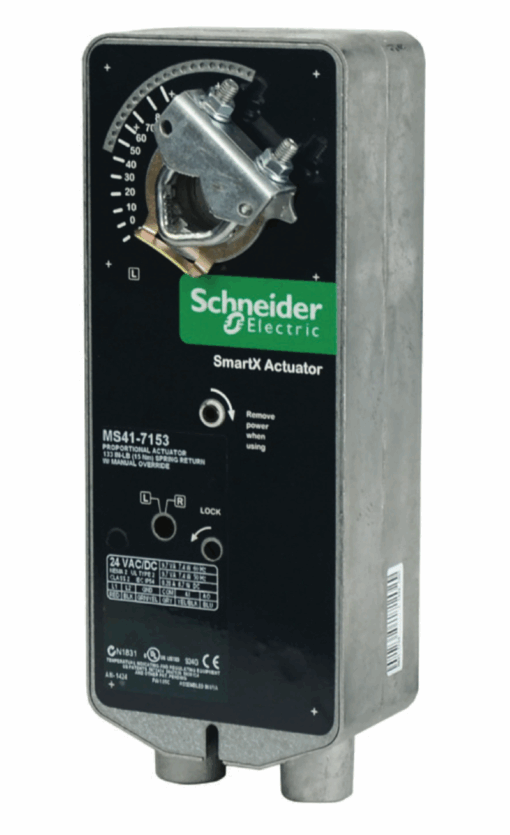

Invensys MS41-7153 Proportional Actuator, SR, 24V, 133 lb-in
Actuator: (MS41-7153):
- Actuator Type: Electric
- Control Signal: Proportional
- Control Signal Range: 2 to 10 VDC, 4 to 20 mAdc
- Loss of Power Type: Spring Return
- Power Input Voltage: 22 to 30 VDC, 24 VAC/VDC
- Leads and Connections: 3 ft Appliance
- Torque: 133 in-lb
- Mechanical Movement: Rotary
- Protection Rating: NEMA 1, NEMA 2
- Product Line: Schneider Electric
- Product Range: SmartX Actuator
- Product Series: Mx4x-7xxx
- Actuator Use: Butterfly Valves, Dampers, Globe Valves
Product Alert: Linkage required for Globe Valve Assembly use. NEMA 2 with conduit connector in the down position.
Product Specifications
| Actuator Housing Material | Aluminum die cast |
| Actuator Type | Electric |
| Actuator Use | Butterfly Valves |
| Dampers | |
| Globe Valves | |
| Auxiliary Switch | 2 SPDT |
| By Schneider | Yes |
| California Residents |  WARNING:This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Conduit Connection | 1/2 in |
| Control Signal | Proportional/Modulating |
| Control Signal Range | 2 to 10 VDC |
| 4 to 20 mAdc | |
| Feedback Signal | 2 to 10 VDC |
| Humidity | 5 to 95% non-condensing |
| Insulation Class | Class II |
| IP Protection Rating | IP10 |
| IP11 | |
| Lead Length | 3 ft |
| Leads and Connections | Appliance |
| Loss of Power Type | Spring Return |
| Mechanical Movement | Rotary |
| Motor Type | DC Brushless |
| NEMA Protection Rating | NEMA 1 |
| NEMA 2 | |
| Override | Automatic reset |
| Position Indicator | Pointer and scale from -5 to 90 degrees (-5 degrees is the normal, or spring-return, position) |
| Power Consumption Holding Watts | 2.90 W |
| Power Consumption Running Amps | 0.28 Amp |
| Power Consumption Running VA | 9.80 VA |
| Power Consumption Running Watts | 7.40 W |
| Power Input Frequency | 50 Hz |
| 60 Hz | |
| Power Input Voltage | 22 to 30 VDC |
| 24 VAC | |
| 24 VDC | |
| Power Input Voltage AC Tolerance | Plus or minus 20% |
| Power Input Voltage DC Tolerance | Plus 25% or minus 8% |
| Product Range | SmartX Actuator |
| Product Series | Mx4x-7xxx |
| Rotation | 95 degrees |
| Rotation Tolerance | Plus or minus 5 degrees |
| Rotational Range Adjustment | 30 to 95 degrees |
| Temperature Ambient Operating Range | -30 to 60 C (-22 to 140 F) |
| Temperature Shipping and Storage Range | -40 to 71 C (-40 to 159.8 F) |
| Torque | 133.00 in-lb |
| 15.03 Nm |
| Weight | 7 lbs |
|---|---|
| Dimensions | 6 × 15 × 5 in |
