MP-453 Invensys Actuator

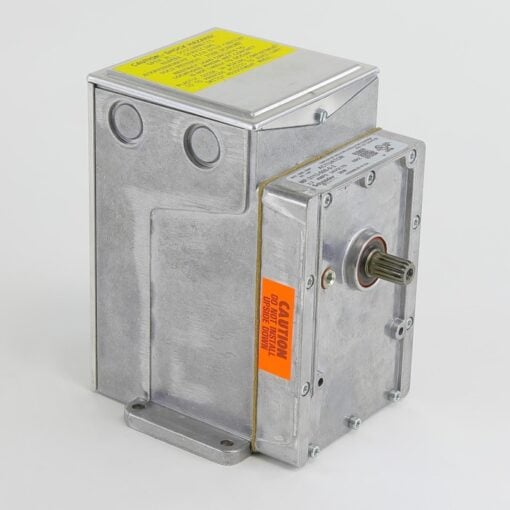

Invensys MP-453 Proportional Actuator, NSR, 120V, 220 lb-in., 90 deg rotation. Also, Eclipse EMP-453-1.

Datasheet

Application

The MP series actuators are used for two-position, floating, and proportional control of dampers, valves, and program switches in heating, ventilating, air conditioning, and similar applications. Hazardous location models offer a sturdy cast aluminum case with bolted cover. They have two 3/4″ pipe tapped openings for joints with rigid metal conduit. All wiring is brought out to separate terminals for ease of installation. These factory enclosure and actuator assemblies are Underwriters Laboratories Listed.

Features

• Proportional actuators with built-in feedback potentiometers
• Spring return and non-spring return models available
• 24 Vac, 120 Vac, and 240 Vac models are available
• Actuator has a rugged die cast aluminum housing with two 1/2” conduit openings.
• Hazardous location actuator housing has two 3/4″ pipe taped openings for rigid metal conduit connection
• Oil-immersed motor and gear train

Product Specifications

Actuator Type	Electric
Actuator Use	Dampers
	Globe Valves
Auxiliary Switch	1 SPDT
By Schneider	Yes
California Residents	WARNING:This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Control Signal	Proportional/Modulating
IP Protection Rating	IP10
Leads and Connections	Terminal Block
Loss of Power Type	Non-Spring Return
Mechanical Movement	Rotary
Power Input Frequency	60 Hz
Power Input Voltage	120 VAC
Product Range	Gear Train
Product Series	MPx-4xx
Rotation	90 degrees
Rotational Range Adjustment	45 to 320 degrees
Torque	220.00 in-lb
	24.86 Nm
