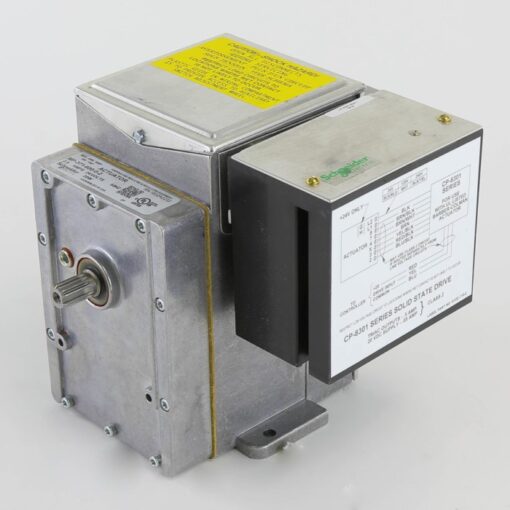

MP-361-600 Invensys Actuator
$1,268.30
Invensys MP-361-600 Proportional Actuator, SR, 24V, 50 lb-in, CW, w/CP-8301-024, Rotary, SPDT, Act drive, N1, Erie
Invensys MP-361-600 Proportional Actuator, SR, 24V, 50 lb-in, CW, w/CP-8301-024
Actuator: (MP-361-600):
- Actuator Type: Electric
- Control Signal: Proportional
- Control Signal Range: 1 to 15 VDC
- Loss of Power Type: Spring Return
- Power Input Voltage: 24 VAC
- Leads and Connections: Terminal Block
- Torque: 50 in-lb
- Mechanical Movement: Rotary
- Auxiliary Switch: 1 SPDT
- Additional Features: Actuator drive
- Protection Rating: NEMA 1
- Product Line: Schneider Electric
- Product Range: Gear Train
- Product Series: MPx-3xx
- Actuator Use: Dampers, Globe Valves
Product Specifications
| Actuator Type | Electric |
| Actuator Use | Dampers |
| Globe Valves | |
| Additional Features | Actuator drive |
| Auxiliary Switch | 1 SPDT |
| By Schneider | Yes |
| California Residents |  WARNING:This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Control Signal | Proportional/Modulating |
| Control Signal Range | 1 to 15 VDC |
| IP Protection Rating | IP10 |
| Leads and Connections | Terminal Block |
| Loss of Power Type | Spring Return |
| Mechanical Movement | Rotary |
| Power Input Frequency | 60 Hz |
| Power Input Voltage | 24 VAC |
| Product Range | Gear Train |
| Product Series | MPx-3xx |
| Rotation | 180 degrees |
| Rotational Range Adjustment | 45 to 320 degrees |
| Torque | 5.65 Nm |
| 50.01 in-lb |
Documents
| Installation instructions | MP-3/4XX Series, MP-2/4XXX Series Reversible and Proportional Electric Actuators |
| Weight | 15 lbs |
|---|---|
| Dimensions | 14 × 11 × 10 in |
