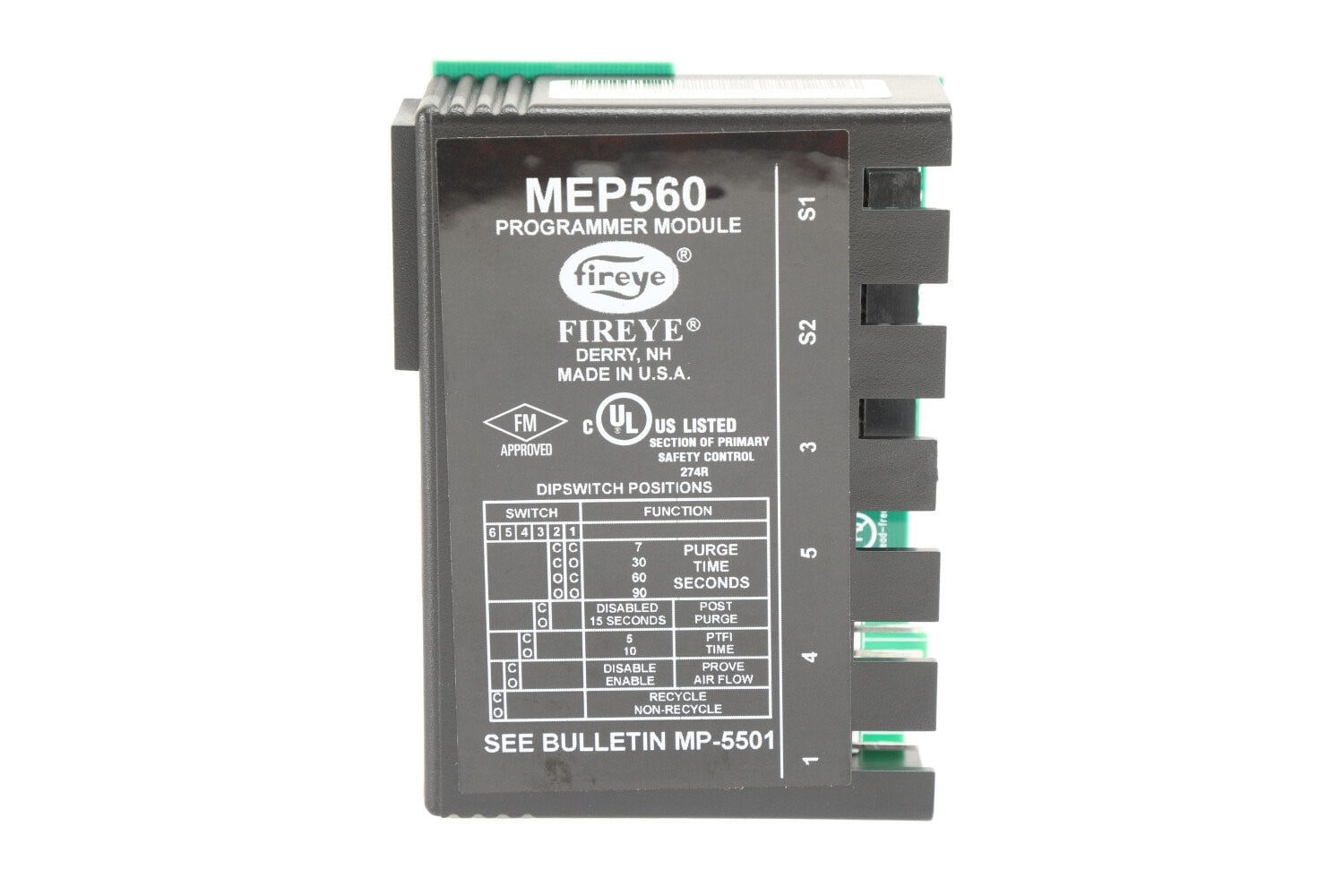

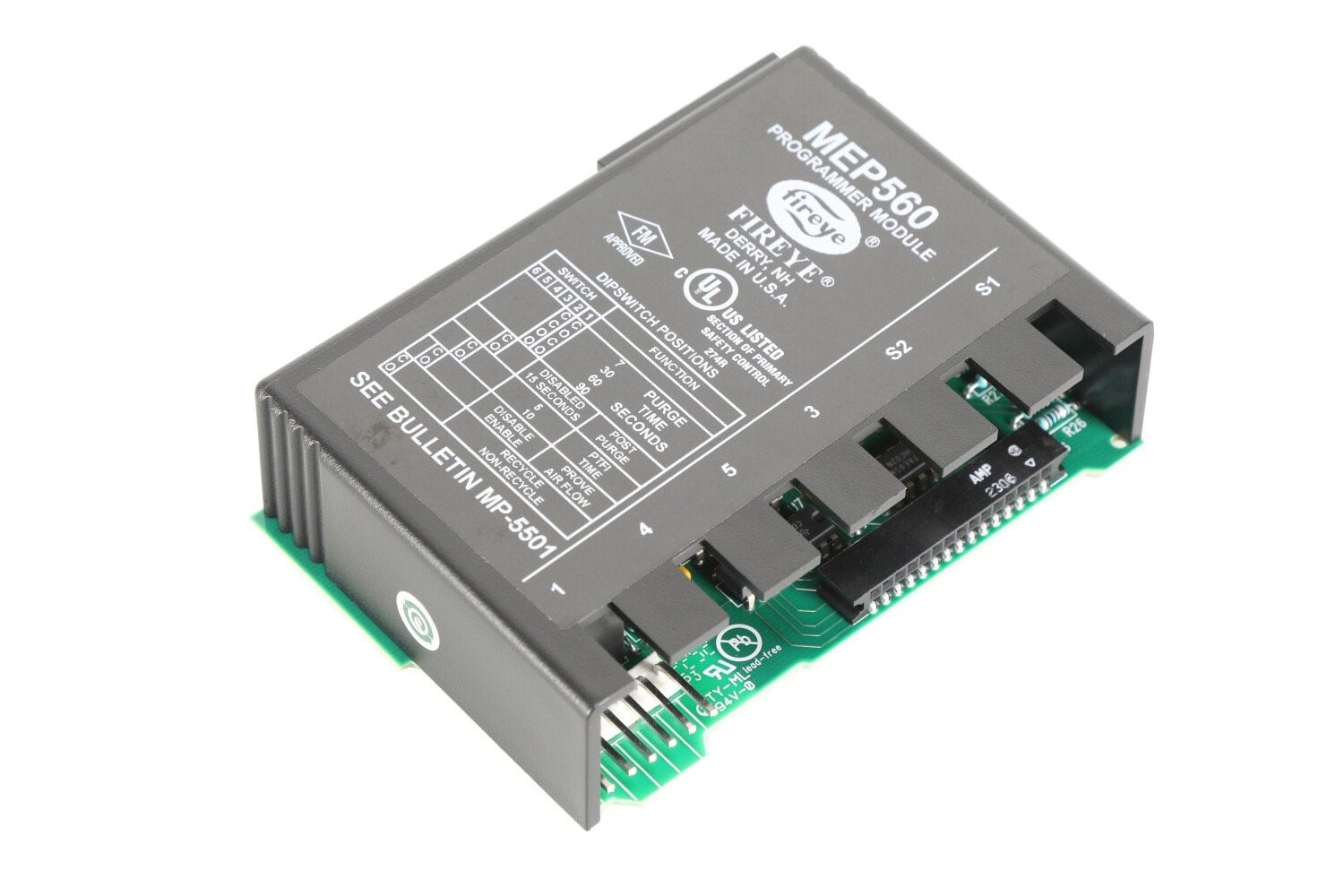

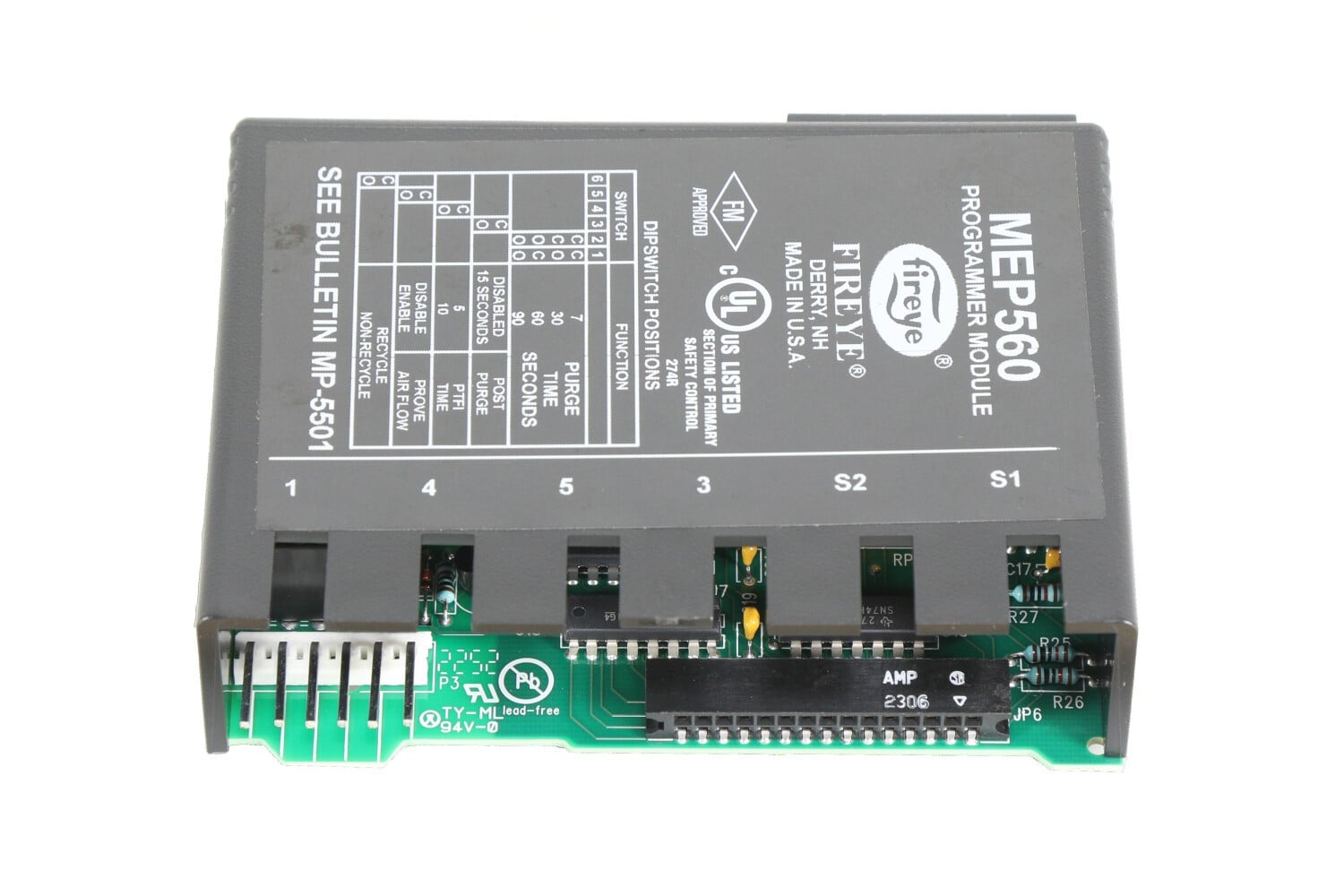

MEP560 Fireye Programmer

Overview

The Fireye MEP560 is a MicroM series programmer module designed for safe and reliable burner control sequencing. It offers configurable purge and ignition timing, selectable recycle or non-recycle operation, and includes both pilot stabilization and post-purge functions.

With a 10-second main trial-for-ignition (MTFI) and 8-second pilot stabilization, the MEP560 ensures dependable flame establishment and shutdown in industrial and commercial burner systems. It is compatible with Fireye MicroM and MEC control chassis, providing flexible control for new or retrofit installations.

Features

• Selectable purge timing via internal DIP switches

• Adjustable Pilot Trial-for-Ignition (PTFI) timing (5 or 10 seconds)

• 8-second pilot stabilization period

• Configurable recycle or non-recycle operation modes

• Built-in post-purge function for safe shutdown

• Run-check switch for testing pilot stability during setup

• LED indicators display sequence status and fault conditions

• Plug-in modular design simplifies installation and replacement

• Compatible with all Fireye MicroM system components

Specifications

Applications

The Fireye MEP560 Programmer Module is used in industrial and commercial burner systems requiring precise and reliable ignition sequencing. Typical applications include:

• Boilers and furnaces

• Process heating and drying equipment

• Burner retrofit control systems

• Industrial flame safeguard installations

• Systems requiring configurable purge and timing options

When used with compatible flame amplifiers and sensors, the MEP560 provides comprehensive burner management and safety control.

Benefits

• Provides stable, repeatable burner sequencing

• Customizable purge and ignition timing to fit system needs

• 8-second pilot stabilization ensures reliable flame detection

• LED indicators simplify diagnostics and commissioning

• Modular design allows quick service or replacement

• Compatible with existing Fireye MicroM systems
