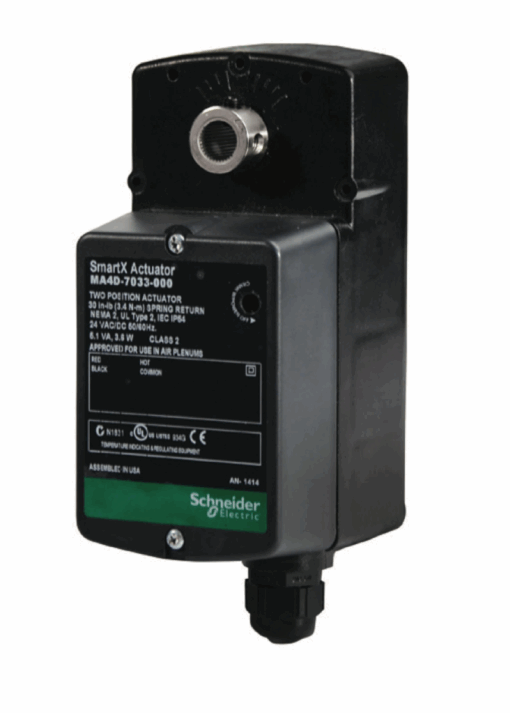

MA4D-7033 Invensys Damper Actuator
$180.90
Invensys MA4D-7033 Two Position Damper Actuator, SR, 24V, 30 lb-in, CCW, Appliance Wire, Rotary, N2, SmartX
Invensys MA4D-7033 Two Position Damper Actuator, SR, 24V, 30 lb-in, CCW, Appliance Wire
Actuator: (MA4D-7033-100):
- Actuator Type: Electric
- Control Signal: 2-Position (On/Off)
- Loss of Power Type: Spring Return
- Power Input Voltage: 20 to 30 VDC, 24 VAC/VDC
- Leads and Connections: 3 ft Plenum
- Torque: 30 in-lb
- Mechanical Movement: Rotary
- Protection Rating: NEMA 2
- Product Line: Schneider Electric
- Product Range: SmartX Actuator
- Product Series: MA4D-7xxx
- Actuator Use: Ball Valves, Dampers
Product Specifications
| Actuator Housing Material | Polymer |
| Actuator Type | Electric |
| Actuator Use | Ball Valves |
| Dampers | |
| Auxiliary Switch | 2 |
| By Schneider | Yes |
| California Residents |  WARNING:This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Conduit Connection | 1/2 in |
| Control Signal | 2-Position (On/Off) |
| Humidity | 15 to 95% non-condensing |
| Insulation Class | Class II |
| IP Protection Rating | IP11 |
| Lead Length | 3 ft |
| Leads and Connections | Plenum |
| Loss of Power Type | Spring Return |
| Mechanical Movement | Rotary |
| Motor Type | DC Brush |
| Override | Automatic reset |
| Position Indicator | Housing scale |
| Power Consumption Running VA | 5.10 VA |
| Power Input Frequency | 50 Hz |
| 60 Hz | |
| Power Input Voltage | 20 to 30 VDC |
| 22 to 30 VDC | |
| 24 VAC | |
| 24 VDC | |
| Power Input Voltage AC Tolerance | Plus or minus 20% |
| Product Range | SmartX Actuator |
| Product Series | MA4D-7xxx |
| Rotation | 93 degrees |
| Temperature Ambient Operating Range | -30 to 60 C (-22 to 140 F) |
| Temperature Shipping and Storage Range | -40 to 71 C (-40 to 159.8 F) |
| Torque | 3.39 Nm |
| 30.00 in-lb |
Documents
| Weight | 4 lbs |
|---|---|
| Dimensions | 2 × 2 × 2 in |
