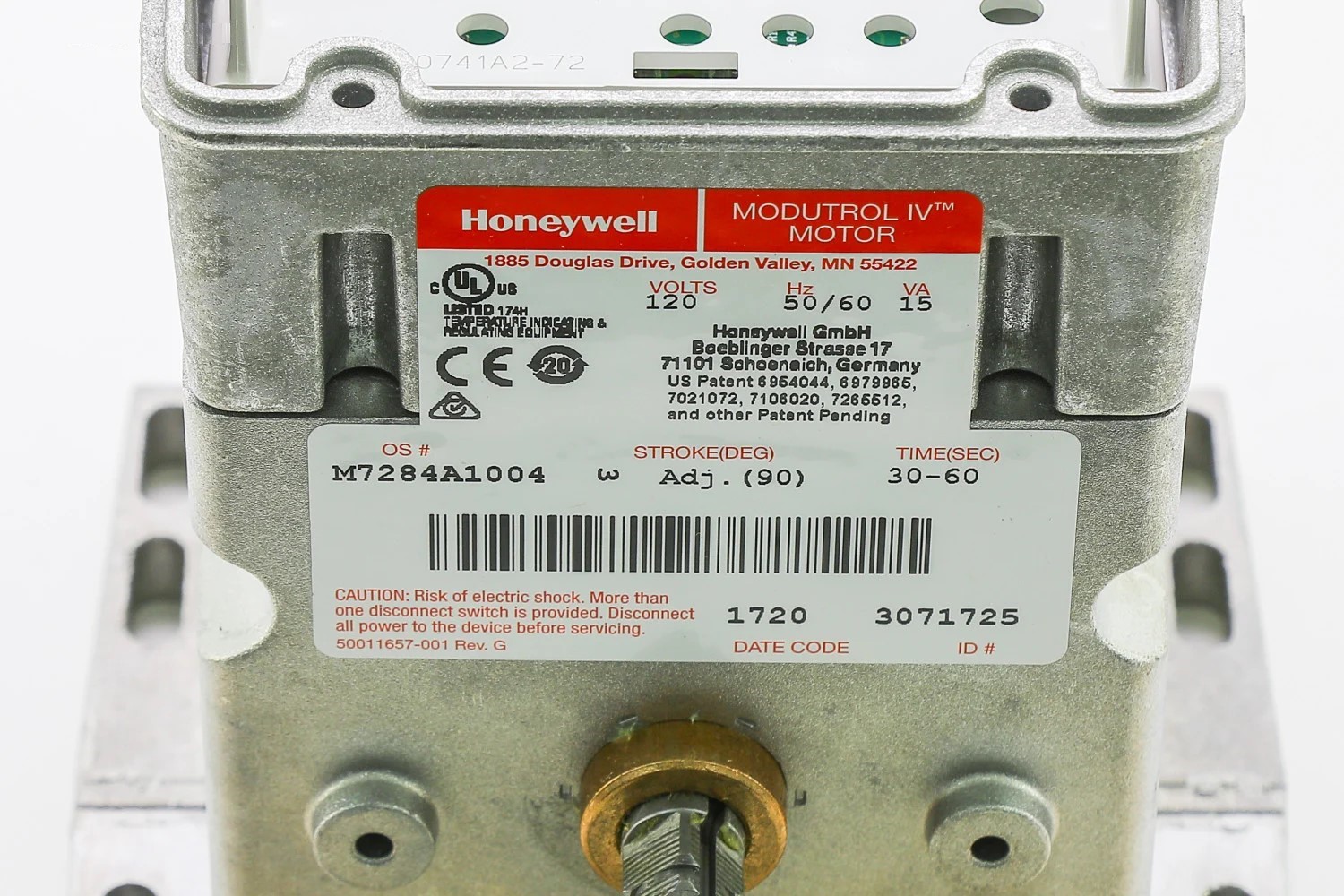

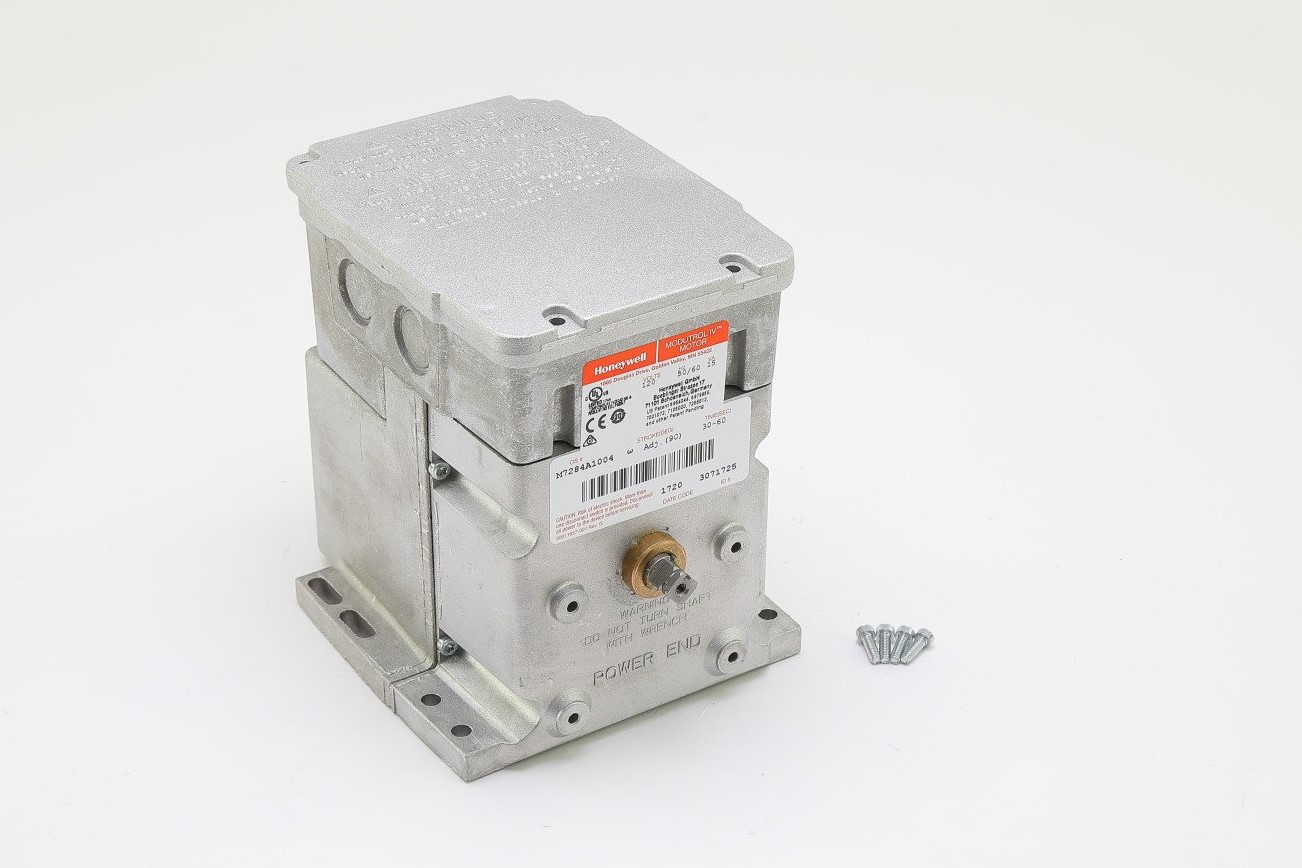

M7284A1004 Honeywell Actuator
$1,250.00
Modutrol IV Motor, 120Vac, Non Spring Return, 150 Lb-In Torque, 30-60 Second Nominal Timing, Modualting, 4-20 Ma Control Signal, 90-160 Degree Stroke, 90 Degree Factory Stroke Setting, Foot Mounted, Dual Ended Square Shaft, Integral Junction Box Provides Nema 3 Weather Protection, Includes Transformer and Screw Terminal Adapter
6 in stock (can be backordered)
UPC: 85267057844
THE HONEYWELL M7284A1004 Non-Spring Return Foot Mounted Actuator. MODUTROL IV. REPLACES M744S1005 120V 50/60HZ 29VA 150LB-IN 90 DEG ADJ STROKE 30-60 SEC 4-20MA Input. The M7284A1004 Series 72 Modutrol IV Actuator Motors from Honeywell are non-spring return motors used to control dampers and valves. The motors accept a current or voltage signal from an electronic controller to position a damper or valve at any point between open and closed.
The Honeywell M7284A1004 is a high-performance Modutrol IV actuator designed for precise modulating control of dampers and valves in HVAC and industrial systems. This rugged, foot-mounted, non-spring-return actuator operates on 120V AC and delivers up to 150 lb-in of torque for reliable positioning in demanding applications. With an adjustable stroke between 90° and 160°, dual-ended shaft, and durable NEMA-rated housing, the M7284A1004 provides long-term, dependable operation for building controls and automation systems.
Features
• Genuine Honeywell Modutrol IV actuator
• 120V AC power (50/60 Hz)
• Non-spring return operation
• Foot-mounted configuration
• Modulating control: accepts 4–20 mA or voltage signal (depending on setup)
• Strong 150 lb-in torque output
• Adjustable travel from 90° (factory) up to 160°
• Dual-ended 3/8″ square shaft
• NEMA-3 weather-resistant junction box
• Long-life motor and gearing design
Benefits
• Provides precise and stable modulating control
• Suitable for large dampers or valves requiring higher torque
• Rugged design ensures long service life in industrial environments
• Adjustable stroke allows application flexibility
• Ideal for commercial HVAC systems, air handlers, VAV boxes, and process control equipment
• Trusted by contractors, facilities, OEMs, and building automation professionals
Technical Specifications
| Application | Electric |
| Dimensions (in.) | 6 7/16 in. high x 5 1/2 in. wide x 7 5/16 in. deep |
| Dimensions (mm) | 164 mm high x 140 mm wide x 185 mm deep |
| Includes | Transformer and Screw Terminal Adapter |
| Weight (lb) | 5 lb |
| Item Type | Product |
| Mounting | Foot-mounted |
| Frequency | 50 Hz; 60 Hz |
| Approvals, Underwriters Laboratories Inc. | Listed: File No. E4436, Guide No. XAPX for USA and Canada |
| Electrical Connections | Screw terminals |
| Supply Voltage | 120V |
| Power Consumption | Driving– 15 VA |
| Approvals, CE | EN55011 (Emission) EN50082-2 (Immunity) 73/23/EEC (LVD) |
| Ambient Temperature Range (F) | -40 F to +150 F |
| Ambient Temperature Range (C) | -40 C to +60 C |
| Internal Auxiliary Switch | 0 |
| Auxiliary Switch Ratings | AFL – 120 Vac– 7.2A; ALR- 120 Vac– 43.2A; AFL – 240 Vac– 3.6A; ALR- 240 Vac– 21.6A |
| Stroke | Adjustable; 90 to 160 degrees, Symmetrical |
| Shaft Dimensions (in.) | 375 in. Square |
| Control Signal | Modulating, 4-20 mA |
| Fail Safe Mode | Non-Spring Return |
| Torque Rating (lb-in.) | 150 lb-in. |
| Torque Rating (Nm) | 17 Nm |
| External Auxiliary Switches Available | Yes |
| Shaft Rotation (upon control signal increase) | Clockwise (as viewed from power end) (normally closed) |
| Factory Stroke Setting | 90 degrees |
| Timing, Nominal | 30-60 sec |
| Feedback | No |
| Shaft Dimensions (mm) | 10 mm Square |
| Motor shafts | Dual-ended shaft |
| Deadweight Load on Shaft | Either End– 200 lbs.; Combined on both Shafts– 300 lbs. |
| Internal Transformer | 50004263-002 |
Applications
• Damper control in air handling units
• Valve control in industrial and HVAC systems
• Building automation and energy management systems
• Retrofit and new installations requiring precise modulating control
• Systems requiring strong torque and consistent positioning
Always confirm torque requirements, control signal type, mounting orientation, and stroke settings prior to installation.
Installation Notes
• Install and wire only by qualified personnel
• Disconnect power before servicing or wiring
• Verify control signal type before connecting
• Adjust stroke if greater than 90° travel is required
• Confirm proper shaft alignment before tightening couplers
• Cycle actuator after installation to verify correct operation
Why Buy from APEX Controls
• Trusted distributor of Honeywell HVAC controls since 1990
• Fast shipping from our Pennsylvania warehouse
• 100% genuine OEM actuators
• Expert support for HVAC and building automation components
• Preferred supplier for contractors, integrators, and facility managers
| Weight | 7.05 lbs |
|---|---|
| Dimensions | 7 × 11 × 8 in |
