M574-1208 Invensys Damper Actuator

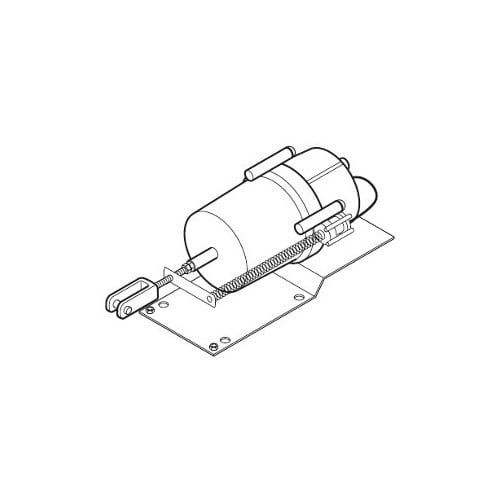

Invensys M574-1208 8-13 Spring Range psig Damper Actuator, with complete linkage and positive positioner for 5/16in. push rod and 1/2″ damper shafts
Invensys M574-1208 8-13 Spring Range psig Damper Actuator, with complete linkage and positive positioner for 5/16in. push rod and 1/2″ damper shafts
Actuator: (M574-1208):
- Actuator Type: Pneumatic
- Control Signal: Proportional
- Control Spring Range: 8 to 13 PSIG
- Loss of Power Type: Spring Return
- Leads and Connections: 1/8 in Air NPT
- Mechanical Movement: Rotary
- Protection Rating: NEMA 1
- Product Line: Schneider Electric
- Product Series: M574
- Actuator Use: Dampers
Product Specifications
| Actuator Type | Pneumatic |
| Actuator Use | Dampers |
| By Schneider | Yes |
| Control Signal | Proportional/Modulating |
| Control Spring Range | 8 to 13 PSIG |
| IP Protection Rating | IP10 |
| Lead Length | 1/8 in |
| Leads and Connections | Air NPT |
| Loss of Power Type | Spring Return |
| Mechanical Movement | Rotary |
| Positioner | Yes |
| Product Series | M574 |
Documents
| Installation instructions | M556, M573, M574 Series Piston Damper Actuators |
| Weight | 6 lbs |
|---|---|
| Dimensions | 15 × 5 × 5 in |
