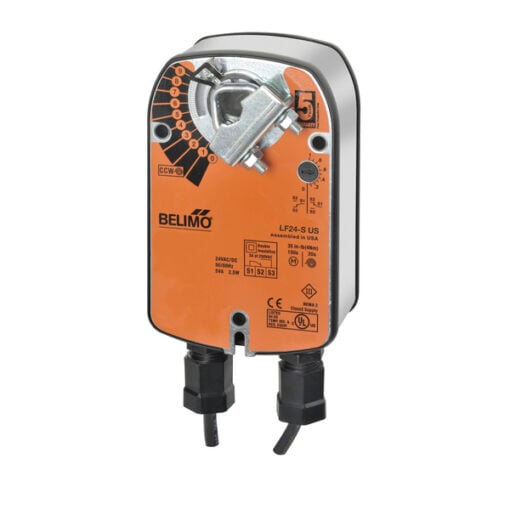

LF24-S US Belimo Damper Actuator

Datasheet

Installation Guide

Application

For On/Off, fail-safe control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. Control is On/Off from an auxiliary contact or a manual switch. The actuator is mounted directly to a damper shaft from 3/8” up to 1/2” in diameter by means of its universal clamp, 1/2” shaft centered at delivery. For shafts up to 3/4” use K6-1 accessory. A crank arm and several mounting brackets are available for applications where the actuator cannot be direct coupled to the damper shaft.

Operation

The LF series actuators provide true spring return operation for reliable fail-safe application and positive close off on air tight dampers. The spring return system provides consistent torque to the damper with, and without, power applied to the actuator. The LF series provides 95° of rotation and is provided with a graduated position indicator showing 0° to 95°. The actuator may be stalled anywhere in its normal rotation without the need of mechanical end switches. Power consumption is reduced in holding mode. The LF24-S US version is provided with one built in auxiliary switch. This SPDT switch is provided for safety interfacing or signaling, for example, for fan start-up. The switching function is adjustable between 0° and 95°. The auxiliary switch in the LF24-S US is double insulated so an electrical ground connection is not necessary

Specifications

• Angle of Rotation
  • 95°
• Direction of Rotation (Fail-Safe)
  • Reversible with cw/ccw mounting
• Power Consumption (Holding)
  • 5 W
• Safety Function
  • YES
• Shaft Diameter
  • 3/8…1/2″ round
  • centers on 1/2″
• Actuator Type
  • Spring return
• Auxiliary Switches
  • 1 SPDT
• Application
  • Water
• Control Type
  • On/Off
• Degree of Protection
  • IP54
  • NEMA 2
• Electrical Connection
  • Cable
• Power Consumption (Running)
  • 5 W
• Product Type
  • Actuator
• Protection category
  • IP54
• Running Time (Fail-safe)
  • <25 s
• Running Time (Motor)
  • 75 s
• Torque
  • 35 in-lb [4 Nm]
• Voltage AC/DC
  • AC/DC 24 V
