HN1NMSTA2 Veris
RH Insert,1%,NIST,4-20mA,T-Xmtr,32-122F; Stainless Steel Probe +/-1% NIST 4 to 20 mA Transmitter Specialty Insertion Humidity and Temperature Sensor, 32 to 122 deg F

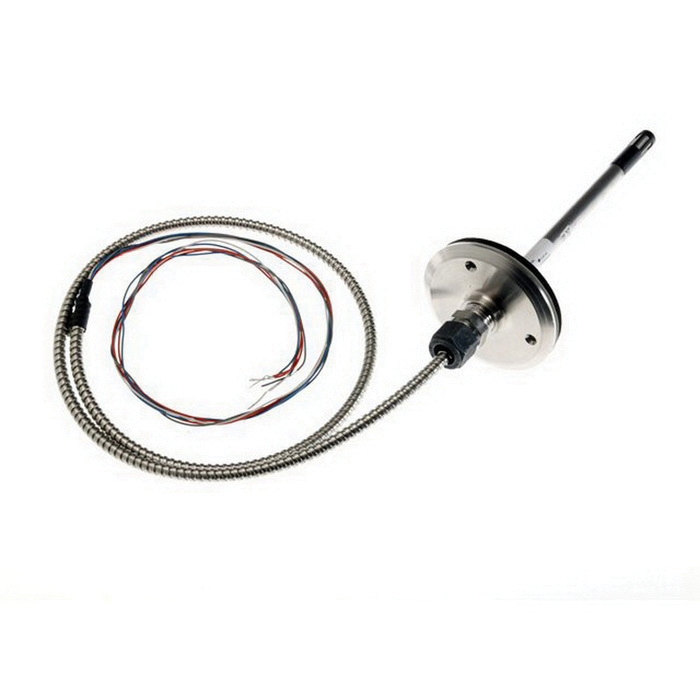

The Veris HN1NMSTA2 RH Insert,1%,NIST,4-20mA,T-Xmtr,32-122F
SPECIFICATIONS
| Application Zone | : | Plant Room |
| Application | : | Insertion Probe |
| Brand | : | Veris |
| Color | : | Stainless Steel |
| Dimension Depth | : | 2″ (51 mm) |
| Dimension Height | : | 3.5″ (89 mm) |
| Dimension Probe Diameter | : | 0.5″ (13 mm) |
| Dimension Probe Length | : | 8″ (203 mm) |
| Dimension Width | : | 3.5″ (89 mm) |
| Electrical Wiring Size | : | 22 AWG (0.32 mm²) |
| Feature Level | : | Deluxe |
| Humidity Calibration Certificate | : | NIST |
| Humidity Measurement Accuracy | : | ±1% |
| Humidity Measurement Drift | : | ±1% @ 68 °F (20 °C) annually for 2 years |
| Humidity Measurement Range | : | 0 – 100% RH |
| Humidity Measurement Resolution | : | 0.1% RH |
| Humidity Sensor Type | : | Thin film capacitive, replaceable |
| Measurement Type | : | Humidity | Temperature |
| Mounting | : | Insertion Mount |
| Operating Humidity | : | 0-100% RH, non-condensing (will recover from saturation) |
| Operating Temperature | : | -40 – 122 °F (-40 – 50 °C) |
| Output Specifications | : | 4 – 20 mA |
| Outputs | : | Analog output |
| Product Certification | : | CE |
| Product Type | : | Sensor |
| Range | : | HN |
| Supply Voltage DC Range | : | 12 – 30 VDC |
| Temperature Calibration Certificate | : | None |
| Temperature Measurement Accuracy | : | ±0.9 °F (±0.5 °C) |
| Temperature Measurement Range | : | 32 – 122 °F (0 – 50 °C) |
| Temperature Measurement Resolution | : | 0.1 ° |
| Temperature Sensor Type | : | Transmitter |
| Warranty | : | 5 years (1 year on replaceable RH element) |
FEATURES
HN series probe type humidity transmitters are easy to install and exceptionally accurate. Their long-term stability and trouble-free serviceability make them among the best in the industry. The electronics are embedded inside the probe, protecting them from condensation-related failures. The thin-film capacitive HS sensor elements are factory calibrated using NIST traceable calibration equipment, eliminating the need for field calibration. Field replacement of the sensor element is a snap with the patented removable sensor, lowering costs and reducing downtime.
- Sensor element – thin-film capacitive sensor element recovers from 100% saturation
- Corrosion resistant – electronics are encapsulated in stainless steel probe to resist corrosion
- Interchangeable – fully interchangeable element to 1% accuracy no calibration
- Flexible – insertion versions for application flexibility
- Compatibility – polarity insensitive 2-wire 4 to 20 mA versions flexible systems compatibility
- Calibration-free interchangeable NIST traceable HS element
- RH insertion enclosure
- 1% NIST
- 2-wire, not polarity sensitive (clipped and capped)
- Digitally profiled thin-film capacitive (32-bit mathematics) US Patent 5,844,138 HS element, this sensing element has a 1 year warranty
| Weight | 3 lbs |
|---|---|
| Dimensions | 10 × 5 × 5 in |
