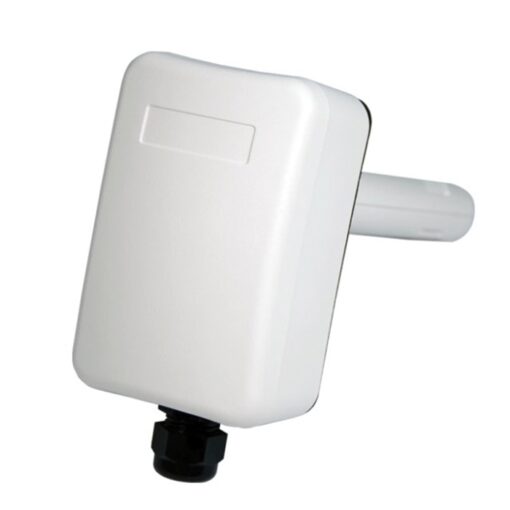

HED3VSX Veris
$123.60
ABS Plastic +/-3% Accuracy 0 to 5/0 to 10 VDC Standard Duct Mount Humidity Sensor
The Veris HED3VSX RH,Economy,Duct,3%,0-10
SPECIFICATIONS
| Application Zone | : | Plant Room |
| Application | : | Duct |
| Brand | : | Veris |
| Color | : | Cloud White |
| Dimension Depth | : | 2.1″ (53 mm) |
| Dimension Height | : | 4.9″ (123 mm) |
| Dimension Probe Diameter | : | 1.0″ (25.4 mm) |
| Dimension Probe Length | : | 6.1″ (155 mm) |
| Dimension Width | : | 3.2″ (82 mm) |
| Electrical Wiring Size | : | 24 – 14 AWG (0.22 – 2.5 mm²) |
| Enclosure Material | : | ABS Plastic |
| Feature Level | : | Economy |
| Humidity Calibration Certificate | : | None |
| Humidity Measurement Accuracy | : | ±3% |
| Humidity Measurement Drift | : | =1% annually |
| Humidity Measurement Range | : | 0 – 100% RH |
| Humidity Measurement Resolution | : | 0.1% RH |
| Humidity Sensor Type | : | Thin film capacitive |
| Measurement Type | : | Humidity |
| Mounting | : | Duct |
| Operating Humidity | : | 0-100% RH, non-condensing (will recover from saturation) |
| Operating Temperature | : | -40 – 122 °F (-40 – 50 °C) |
| Output Specifications | : | 0 – 5 V | 0 – 10 V |
| Outputs | : | Analog output |
| Product Certification | : | CE |
| Product Type | : | Sensor |
| Range | : | HED |
| Response Time | : | 110 s (to 90% change @ 20 °C) |
| Supply Voltage AC Nominal | : | 24 VAC |
| Supply Voltage DC Range | : | 12 – 30 VDC |
| Temperature Sensor Type | : | None |
| Warranty | : | 1 year |
FEATURES
HED standard series duct mount humidity transmitters offer high performance in an easy to install housing at an affordable price. The thin-film capacitive sensor element provides high accuracy and performance, great long-term stability, and full recovery from saturation. The duct-mounted HED includes a rugged all plastic housing with a tool-less gasketed entry lid, large cage clamp terminal blocks, and sturdy ABS material. All Standard models come with a standard 1 year warranty.
- RH – monitor humidity with a single device reduces installation costs
- Easy hook-up – large cage clamp terminal blocks easy hook-up with no wire nuts
- Circuitry is embedded in the probe for durability and protection
- No lost screws – tool-less gasketed entry lid
- Digitally profiled thin-film capacitive, non-removable RH element
| Weight | 6 lbs |
|---|---|
| Dimensions | 14 × 8 × 5 in |
