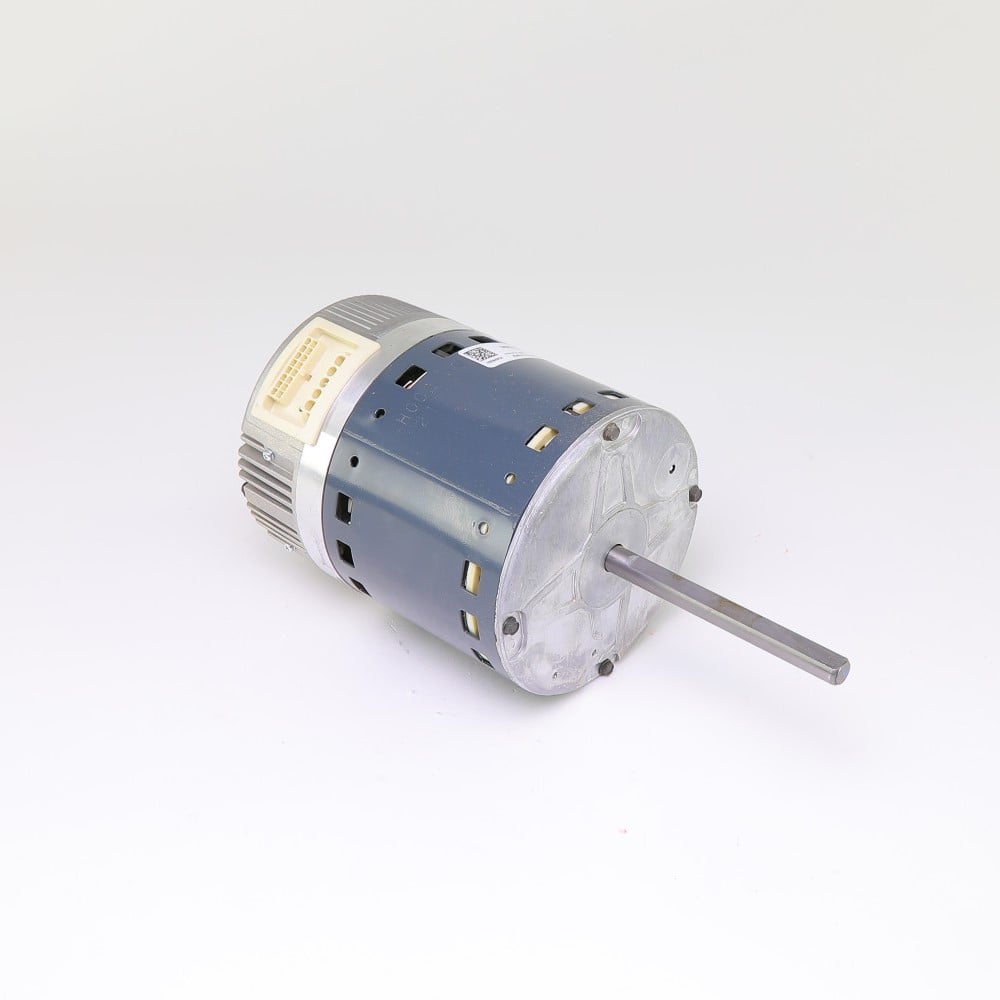

HD46AR265 Carrier Blower Motor
$958.00
HD46AR265 Carrier Blower Motor 3/4 HP 120/240 V 9.6/6.8 Amp 1050 RPM ECM (Electronically Commutated Motor)
HD46AR265 Carrier Blower Motor 3/4 HP 120/240 V 9.6/6.8 Amp 1050 RPM
| Attributes | |
|---|---|
| Amps | 6.8-9.6 |
| Basis Of Rotation View | Lead End |
| Bearing Type | Ball |
| Brand | Factory Authorized Parts |
| CSA Listing | Yes |
| Country of Origin | MEX |
| Cubic Measurement | 0.2139 |
| Cycle/Hertz | 60 Hz |
| Dimensional Weight | 5 |
| Duty | (S1) Continuous Running Duty |
| Full Load Amps | 6.8-9.6 |
| GTIN | 00822529625294 |
| Insulation Class | B |
| Motor HP | 3/4 HP |
| Motor Type | ECM (Electronically Commutated Motor) |
| Mounting Type | Belly Band |
| NEMA Frame | 48 |
| Number of Speeds | Variable |
| Phase | Single |
| Prop 65 | No |
| RPM | 1,050 |
| Rotation | Counter Clockwise (CCW) |
| Shaft Diameter | 0.5″ (1/2″) |
| Shaft Length | 4 3/4″ |
| UOM | EA |
| UPC | 822529625294 |
| Voltage | 120/240 VAC |
| Weight | 18 lbs |
|---|---|
| Dimensions | 17 × 7 × 7 in |
